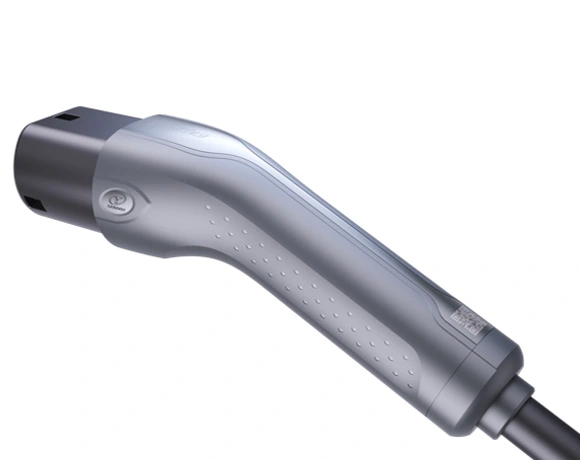

AC Vehicle Connector Type2

This series of charging gun is suitable for European standard electric vehicle charging, for the car end charging gun connected to the car end chassis on the electric vehicle.

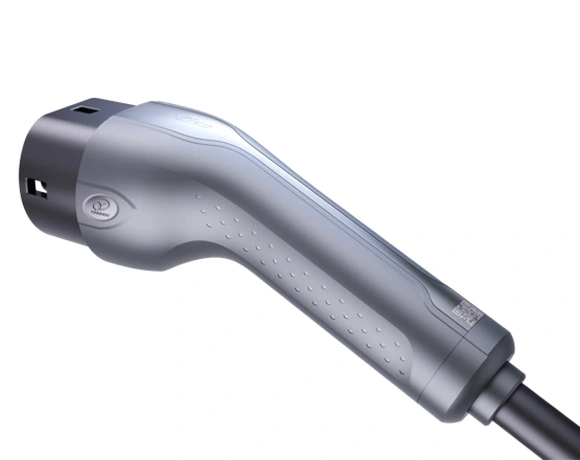

Product features of AC Vehicle Connector-Type2

  • The charging gun shell features an integrated design, ensuring a lightweight product with high protection levels and safe usage, effectively mitigating the risk of damage to the two-half shell in harsh environments.

  • The charging gun is equipped with a temperature sensor with higher accuracy and larger threshold to monitor the temperature inside the charging gun.

  • This gun type car charger connector is designed with lightweight and flexible cables that have low hardness, making it easy to bend and operate over long distances.

  • The cable is secured to the tail using a cable clamp, and the inverted concealed screw connection makes for a more aesthetically pleasing appearance.

  • The use of surface-mounted resistors between terminals has lower assembly costs and a more stable structure compared to through-hole resistors.

  • The 32A AC charging gun offers an ultrasonic welding process option with lower connection resistance.

  • Family design style, black, white, gray three color schemes, with a clear identification logo, the overall shape is more in line with the needs of European users, the grip on both sides of the prism design, play a non-slip role.


  • After 10,000 plugging and unplugging, the charging gun still meets IEC 62196-1:2022 Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements.

  • Charging gun this product complies with the requirements of IEC 61851-1:2017 Annex B Figure B.2.

  • Charging gun interface dimensions comply with IEC 62196-2 Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 2: Dimensional compatibility requirements for AC pin and contact-tube accessories.

The Details of AC Vehicle Connector-Type2

The Details of AC Vehicle Connector-Type2

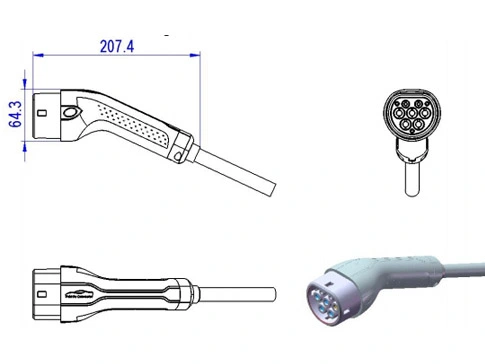

Charging gun overall: (schematic diagram)

The Details of AC Vehicle Connector-Type2

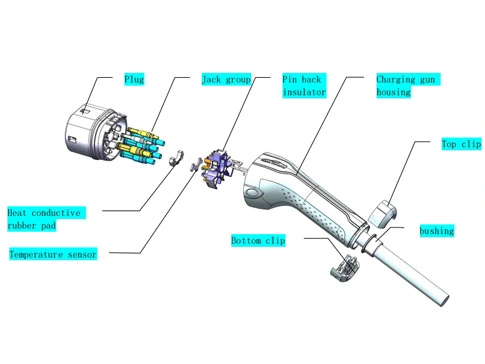

Charging gun explosion: (schematic)

Specifications of AC Vehicle Connector-Type2

Ordering information

Specification

Product name

Product code

Line length(m)

Remark

16A three-phase

YG-ENC-3AC16-GY-M3C-C1

Plug and cable assembly

111000405819

5


32A three-phase

YG-ENC-3AC32-GY-M3C-C1

Plug and cable assembly

111000405822

5


16A single-phase

YG-ENC-1AC16-GY-M3C-C1

Plug and cable assembly

111000405818

5


32A single-phase

YG-ENC-1AC32-GY-M3C-C1

Plug and cable assembly

111000405821

5



• TECHNICAL DATA

Basic information

Rated current

16A

32A

Rated voltage

250V(single-phase)/480V(three- phase)

250V(single-phase)/480V(three- phase)

Number of contacts

5core(single- phase)/7core(three-phase)

5core(single- phase)/7core(three-phase)

Cable outer diameter

Φ10.7±0.5(single-phase) Φ13.5±0.3(three-phase)

Φ13.5±0.5(single-phase) 16.5±0.5±0.3(three-phase)

Number of temperature sensors

1

Termination mode

Insertion of pairs

Wiring specification

2.5mm²

6mm²


Electrical performance

Serial number





Group

Withstand voltage

Insulation resistance

Test voltage(DC)



Time

Leakage current

Test voltage(DC)



Time

Insulation resistance

1

Between L3, L2, L1,

N ,PE, respectively

2000V

1min

≤5mA



500V



1min



500MΩ

2

Between L3, L2, L1, N,

PE and CP, respectively

1500V

1min

≤5mA

Remark

a. PP and PE are connected.

Select either

b. Single-phase, without L3 and L2

 a.P and PE are connected, choose one


Mechanical property

Rated current

16A

32A

Insertion and extraction force

<100N

Mechanical life

≥10000 times

Fall

1m height drop, meet IEC 62196-1:222

Rolling

Can withstand 11000N rolling, meet IEC 62196-1:222


Environmental resistance

Rated current

16A

32A

Operating ambient temperature

-30℃ ~ +50℃

Operating temperature

-30℃ ~ +85℃

Relative humidity

5% ~ 95%

Corrosion resistance

Meet IEC 62196-1:2002

Class of protection

The vehicle plug meets IP44 when inserted into the vehicle socket

The protection level of the low-voltage circuit inside the vehicle plug meets 1P67

Altitude requirement

≤3000 meters


Standards and certification

Flame retardant rating

UL94 V-0

Environmental protection requirement

ROHS2.0 and REACH

Product certification

TUV

Executive standard

IEC 62196-1:2022

IEC 62196-2:2022

IEC 62196-3:2022


• key component

Component detail

Name

Temperature sensor

Quantity

2

Specifications

10KΩ

Accuracy

±1%

Rated power

100mW


• PACKING INSTRUCTIONS

Packing and storage instructions

Packing Method

Foam plastic bags are wrapped and packed into cartons. The gaps are filled with foam boards

Transport requirements

can be specified

Storage requirements

The charging gun contains parts (gold-plated and silver- plated), and the storage environment should be kept clean and ventilated. The humidity of the storage environment should be less than 60%, and the temperature should be 5 to 30 ℃. The storage period is 6 months.
