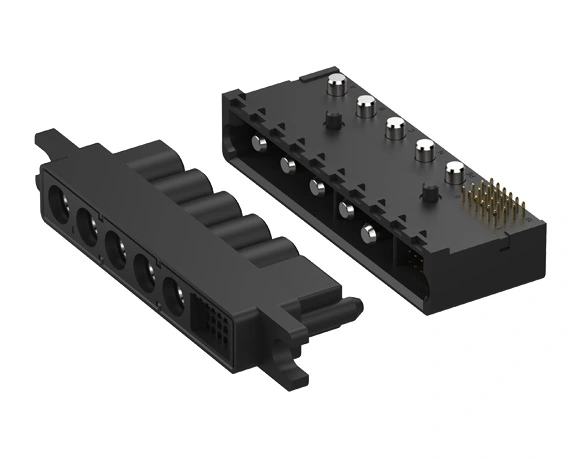

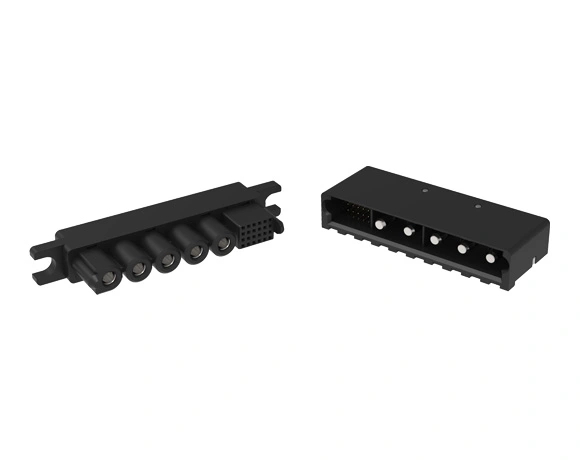

141095 Electrical Connector

With a rated voltage of 600V AC/DC power supply and 60V AC/DC signal, this connector is versatile and efficient. Its mechanical characteristics include an overall insertion force of ≤150N and an overall pull-out force of ≥30N, ensuring secure connections. Made with high-quality materials and surface treatments that comply with RoHS requirements, the 141095 Electrical Connector guarantees durability and safety. Store this telecommunication connector in a dry, moisture-proof, dust-proof, and mildew-proof packaging box in a temperature-controlled warehouse. Don't miss out on this reliable and long-lasting connector from Yonggui.

The Details of 141095 Electrical Connector

The Details of 141095 Electrical Connector

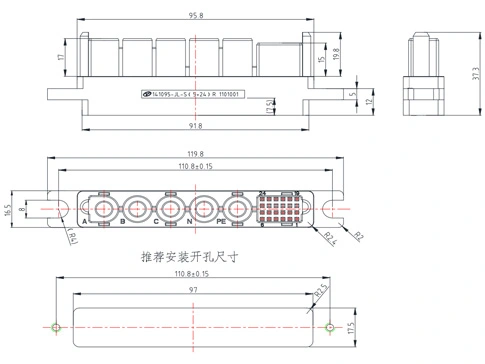

141095-JL-S (5+24) R Receptacle (Empty seat, no contact)

The Details of 141095 Electrical Connector

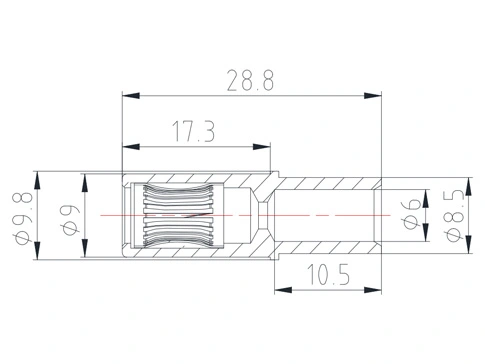

141095 Socket Assembly Φ5.75-4AWG- Silver

The Details of 141095 Electrical Connector

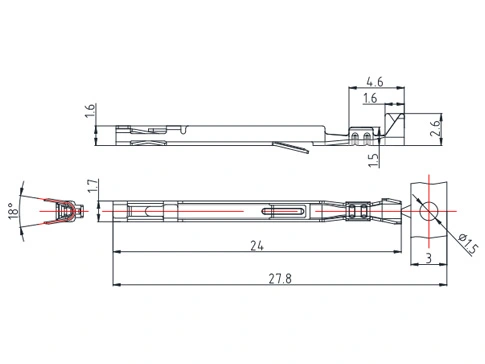

141095 socket

The Details of 141095 Electrical Connector

141095-JL-P (5+12) PW Plug

The power contact is fully installed, and the signal contact is installed in 3 columns. Signal socket assembly hole: 1, 2, 6, 7, 8, 12, 13, 14, 18, 19, 20, 24.

The Details of 141095 Electrical Connector

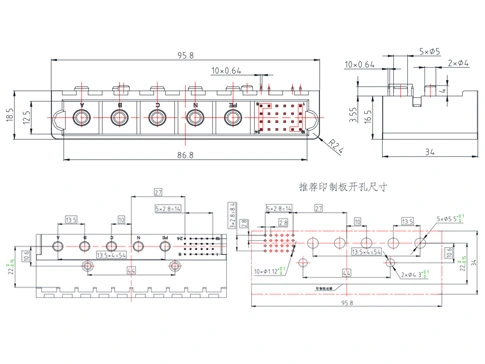

141095-JL-P (5+10) PW Plug

The power contact is fully loaded, and the signal contact is shown in the figure. Signal jack assembly hole: 1, 5, 6, 7, 12, 13, 18, 19, 20, 24.

The Details of 141095 Electrical Connector

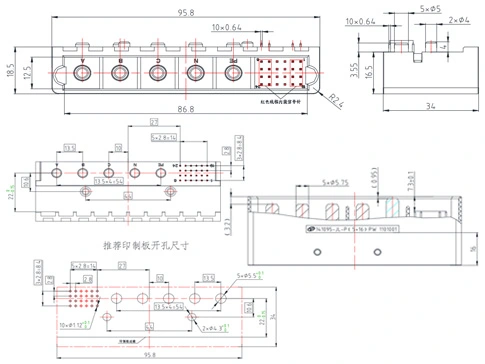

141095-JL-P (5+16) PW Plug

The power contact is fully installed, and the signal contact is installed in 4 columns. Signal jack assembly hole: 1, 2, 5, 6, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 23, 24.

Specifications of 141095 Electrical Connector

Electrical parameterRated voltage600V AC/DC Power supply, 60V AC/DC Signal
Rated current100A Power supply;2A Signal
Contact resistance≤0.75mΩ Power supply; ≤15mΩ Signal
Insulation resistance≥5000 MΩ
Withstand voltageBetween power contacts and between power contacts and signal contacts)3000V AC/Minute, Signal contact between components 500V AC/Minute
Mechanical characteristicOverall insertion force≤150N Fill all contacts
Overall pull-out force≥30N Fill all contacts
Mechanical life≥200times
Working environmenttemperature-40℃~+125℃
humidity95%RH(40°C)
Vibration10-2000Hz, acceleration)147m/s², Instant break)≤1us
strikeacceleration)490m/s², Instant break)≤1us
Materials and surface treatment, etc.
Hazardous substances comply with RoHS requirements
insulatorPBT+30%GF, BLACK, UL94V-0
Power contactCopper alloy, silver plated
Signal contactCopper alloy, tin plating
Gear sleeveCopper alloy


141095 Electrical Connector Storage Condition

The packaging box containing the product should be packed in a dry, moisture-proof, dust-proof and mildew-proof packaging box. Products need to identify the product number Code, name, production date, inspection seal and other information. The packaged products should be placed in an ambient temperature of -10~+40°C. Store in a warehouse with a humidity below 80% RH and no acidic, alkaline or other corrosive gases in the surrounding air. in the above Under the conditions, the storage period shall not exceed two years from the date of production.
