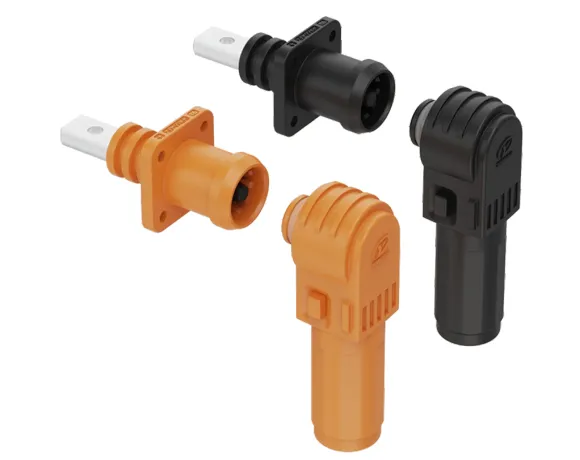

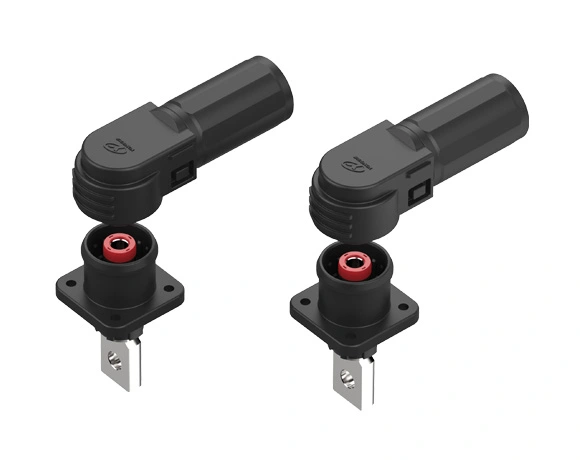

ESC-HP120 Connector

  • Cable specification: 25mm2/16mm2

  • Cable Diameter OD: 10.20±0.2mm/8.10±0.2mm

  • Termination Method: Plug: Crimp termination(Double "B"); Receptacle: M5 Thread termination;

  • Installation Method: Screw(M3)

  • Installation Torque: 1.2±0.2N•m

  • Locking method: Spring locking

  • Preventing Misinsertion: Color Preventing, Mechanical Preventing.

The Details of ESC-HP120 Connector

The Details of ESC-HP120 Connector

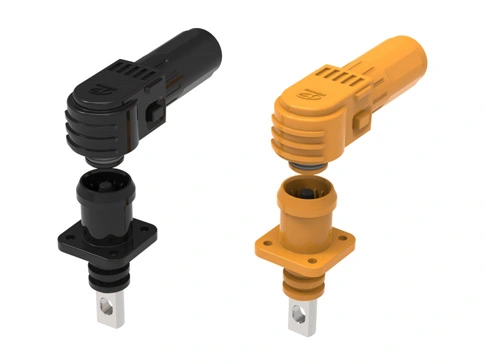

Product Outline

The Details of ESC-HP120 Connector

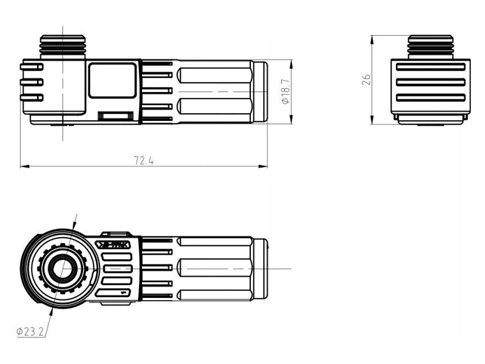

Plug Outline Dimension

The Details of ESC-HP120 Connector

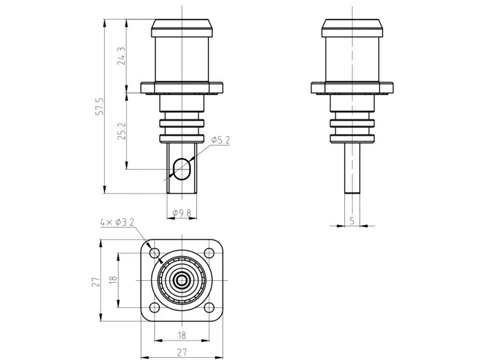

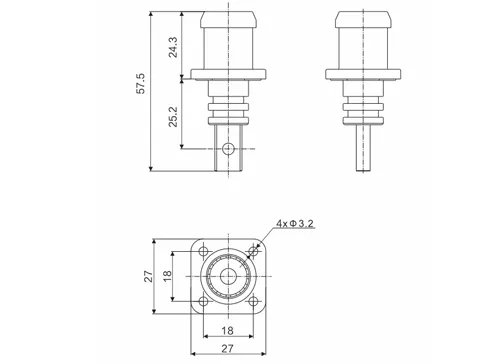

ESC-HP120-051 Series Receptacle

The Details of ESC-HP120 Connector

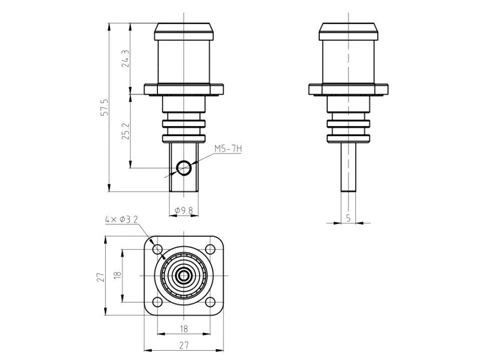

ESC-HP120-052 Series Receptacle

The Details of ESC-HP120 Connector

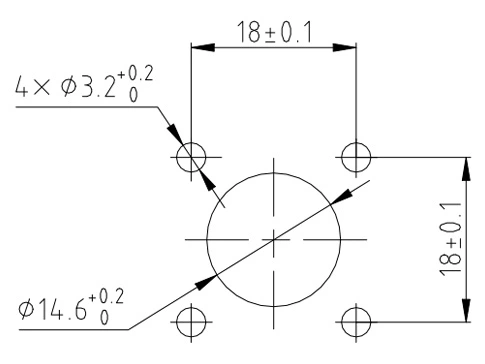

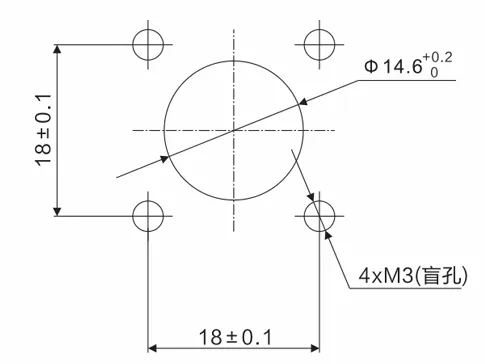

Installing Holes Dimension

Specifications of ESC-HP120 Connector

Electrical CharacteristicPins1
Terminal specificationsΦ5.75mm
Rated Current120A(25mm2)/80A(16mm2)
Rated Voltage1500V DC
Voltage Proof6800V AC 50Hz
Contact Resistance≤0.5mΩ
Insulation Resistance≥100MΩ
Temperature Rise≤45K
Mechanical CharacteristicDurability≥100 Cycles
Protection ClassIP67
Material and FinishMaterialInsulatorEngineering plastics
Rubber partsSilicon rubber
Contact partsCopper alloy
Surface TreatmentSilver/Tin
Flame RatingUL94 V0(Bulk Material)
Environmental dataOperating Temperature-40℃~+125℃
Relative Humidity5%~95%
Vibration/ShockQC/T 1067.1-2017 Vibration level V1

ESC-HP120 Connector Storage Condition

  • The energy storage connector should be uesd within the specification that provided, Install, use and maintain the products according to the documents.

  • Packaging: moisture-proof bubble bag and carton.

  • Storage Spec: The packaged products shall be stored in the warehouse within the temperature of -10 ℃~+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.

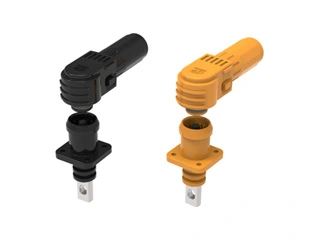

  • the production of esc hp120 connector
