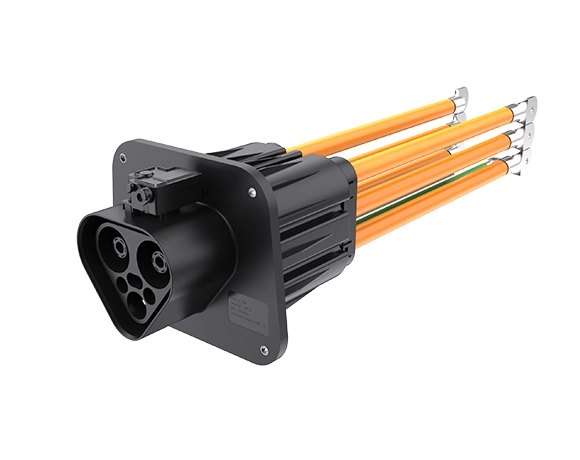

MCS Vehicle Inlet

  • Product design is full of science and technology, a sense of the future;

  • IP Rating: Electrical Part IP67;

  • Meet the mud salt water plug test, meet the more stringent conditions of use;

  • Temperature rise less than 50K

  • PCB board integrated low-voltage signal, internal wiring is more concise,more reliable assembly;

Specifications of MCS Vehicle Inlet

Standard

MCS  IEC 61851-1  IEC 61851-23  IEC 62196-1  IEC 62196-2  IEC 62196-3  IEC 62196-23   IEC TS 63379

Charging model

Charging mode 4, connection mode C

Rate Voltage

1000V DC

Rate current

1500A DC

Withstand voltage

1.HV+, HV- ≥3500V AC 1min;

2. The distance between HV+ and HV- and GND, CP and PP is ≥1500V AC 1min respectively;

3.GND, CP, PP pair to each other ≥1500V AC 1min;

Insulation resistance

1.HV+, HV- ≥500MΩ (1000V DC);

2.HV+, HV- and GND, CP, PP are respectively between ≥500MΩ (1000V DC);

3.GND, CP, PP between each other ≥500MΩ (1000V DC)

IP Rating

IP54 before insertion; IP55 after insertion; Electrical part: IP67 (except interface with socket)

Number of insertions

≥10000

Insertion and extraction force

<100N

Ambient temperature

-30℃ ~+ 50℃

Temperature sensor type

PT1000 /NTC

Flame Rating

UL 94 V-0

Outside diameter

211(W)*170(H)*260(L)
