Zhejiang Yonggui Electric Equipment Co., Ltd.

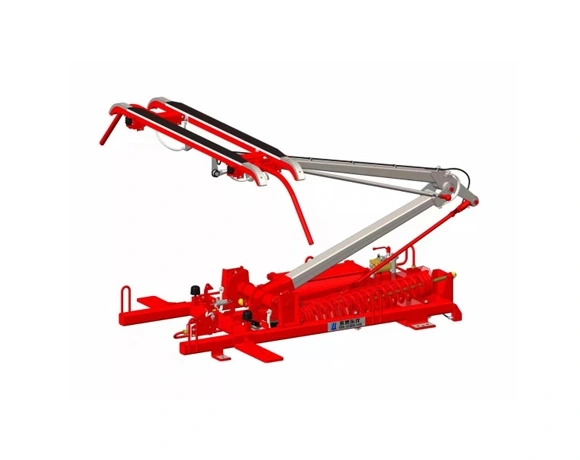

Railway Pantograph

  • Pantograph and contact line system matches well, uniquebellows spring secondary buffer design

  • Segmented contact strip design, makes maintenance simple, convenient transportation

  • Raising by mechanical spring, reliable and stable

  • The mechanical abrasion is small, which is conducive to the extension of the life of the contact line and strip. F=80±10N

The Details of Pantograph

The Details of Pantograph

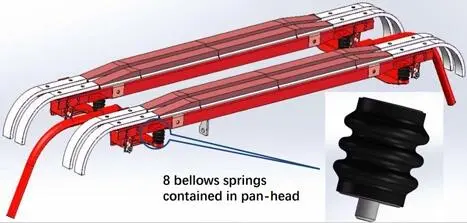

Unique pan-head design-bellows spring

The Details of Pantograph

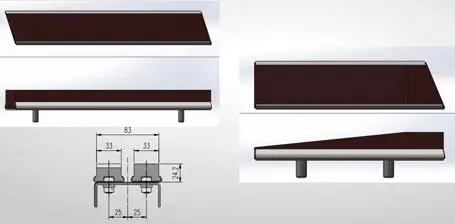

Segmented contact strip design

The Details of Pantograph

Structure of Pantograph

The Details of Pantograph

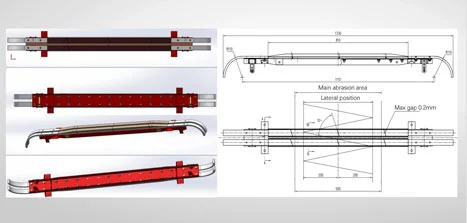

Design basis of segmented contact strip

The Working Principle of Yonggui Electric's Pantograph

Contact Mechanism: The pantograph is mounted on the roof of the train and equipped with a contact strip that presses against the overhead catenary wire. This ensures continuous electrical contact during operation.


Spring or Pneumatic Tension: The pantograph uses spring or pneumatic tension to maintain consistent pressure against the wire. This mechanism absorbs vibrations and ensures reliable contact, even at high speeds or during rapid accelerations and decelerations.


Current Collection: Electricity flows from the overhead wire through the pantograph and into the train's electrical system. This powers traction motors, lighting, air conditioning, and other onboard systems.


Self-Adjusting Feature: Modern pantographs are designed to adjust their height dynamically, compensating for variations in the catenary wire's height caused by terrain or installation tolerances.


The Application of Yonggui Electric's Pantograph

The pantograph from Yonggui Electricis an essential component for electric vehicles, particularly in rail transit systems such as EV buses, trams, and high-speed trains. Its primary function is to transfer electricity from overhead lines to the train's electrical systems, enabling seamless operation without the need for onboard fuel sources.
