Cable specification: 50mm2/35mm2
Cable Diameter OD: 13.5±0.3mm/11.5±0.2mm
Termination Method: Plug: Crimp termination(Double"B"); Receptacle: M6 Thread termination
Installation Method: Screw(M4)
Installation Torque: 2±0.2N•m
Locking method: Spring locking
Preventing Misinsertion: Color Preventing; Mechanical Preventing

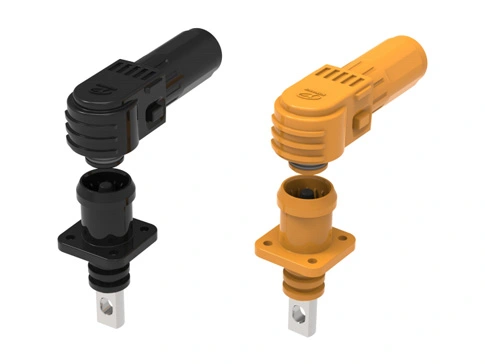

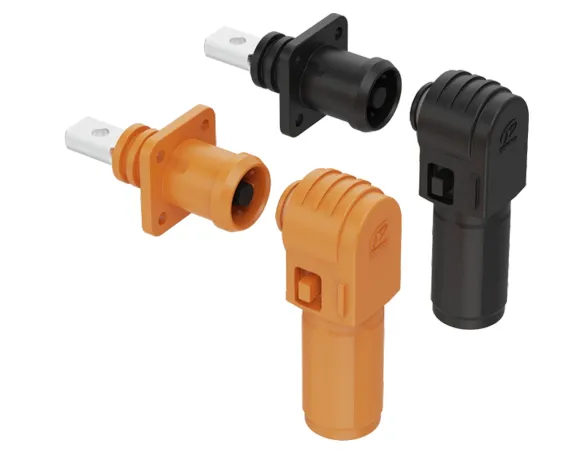

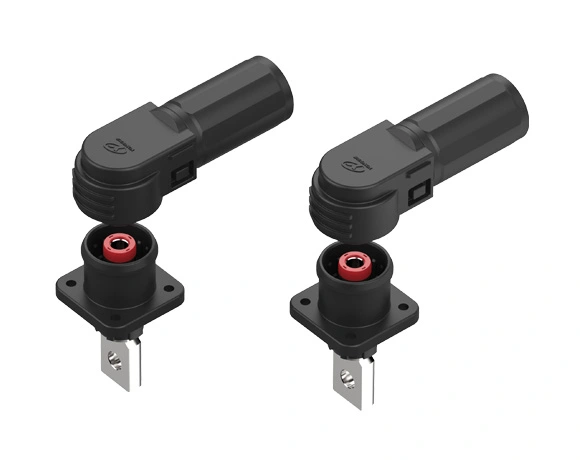

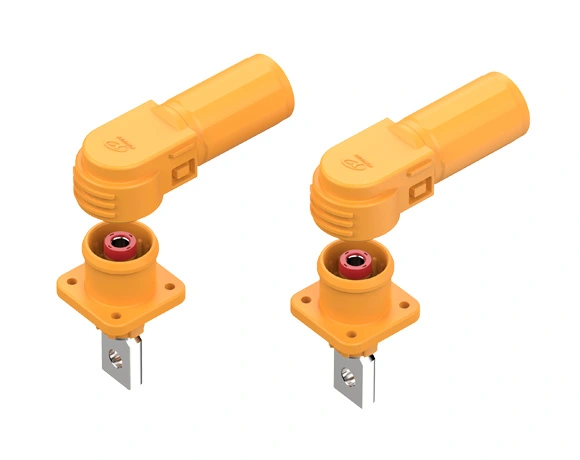

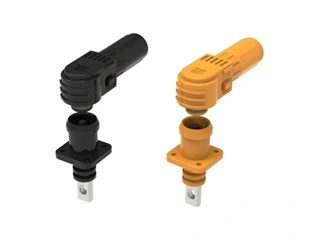

Product Outline

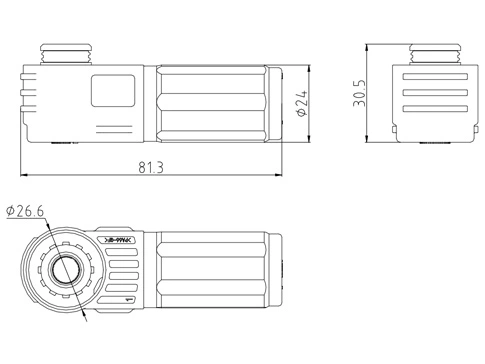

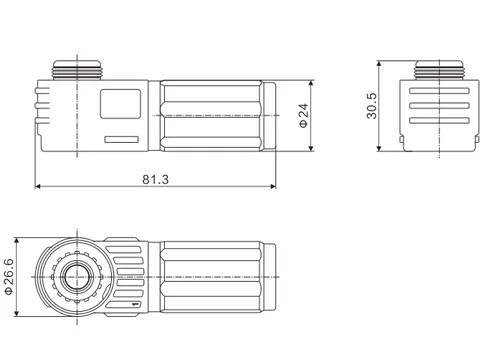

Plug Outline Dimension

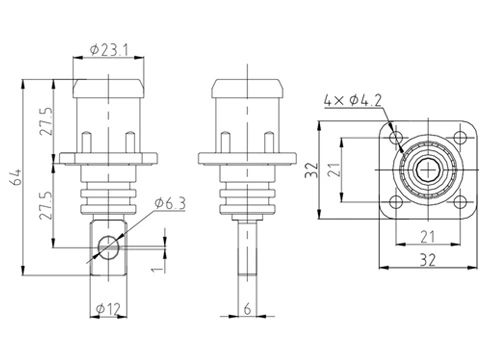

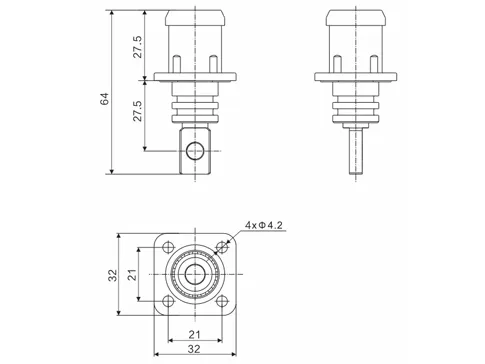

ESC-HP200-061 Series Receptacle

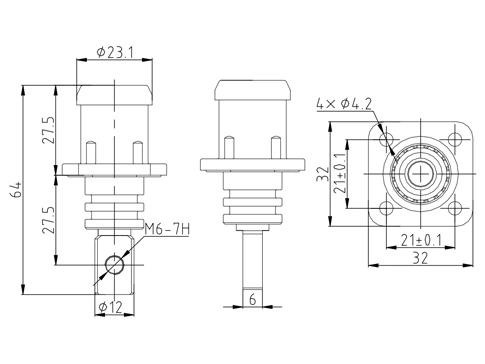

ESC-HP200-062 Series Receptacle

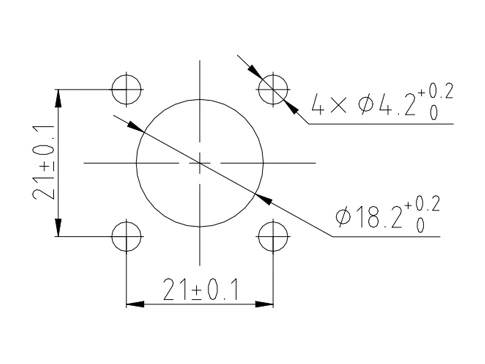

Installing Holes Dimension
| Parameters | Details | Values |
| Electrical Characteristic | Pins | 1 |
| Terminal specifications | Φ8mm | |
| Rated Current | 200A(50mm² )/150A(mm² ) | |
| Rated Voltage | 1500V DC | |
| Voltage Proof | 6800V DC | |
| Contact Resistance | ≤0.3mΩ | |
| Insulation Resistance | ≥100MΩ | |
| Temperature Rise | ≤45K | |
| Mechanical Characteristic | Durability | IP67 (Mated) |
| Protection Class | IP67 | |
| Material and Finish | Material | Insulator: Engineering plastics: Rubber parts: Silicon rubber: Contact parts: Copper alloy |
| Surface Treatment | Silver/Tin | |
| Flame Rating | UL94 V0(Bulk Material) | |
| Environmental data | Operating Temperature | -40℃～+125℃ |
| Relative Humidity | 5%～95% | |
| Vibration/ Shock | QC/T 1067.1-2017 Vibration level V1 |
The energy storage connector should be uesd within the specification that provided, Install, use and maintain the products according to the documents.
Packaging: moisture-proof bubble bag and carton.
Storage Spec: The packaged products shall be stored in the warehouse within the temperature of -10 ℃～+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.
