Zhejiang Yonggui Electric Equipment Co., Ltd.

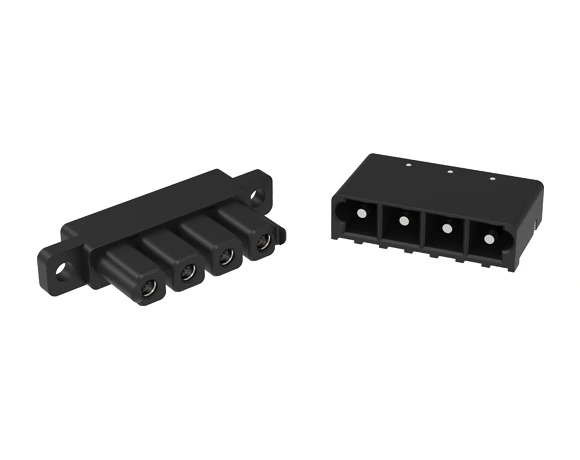

141100 Electrical Connector

  • Spacing: 13.5mm

  • Cable specification: 16mm2/10mm2

  • Termination method: Crimping

  • Installation Method: Panel screw floating installation

  • Installation Torque: 2.3N•m

  • Breaking Torque: 4N•m

  • Connection Mode: /

  • PCB Thickness: /

The Details of 141100 Electrical Connector

The Details of 141100 Electrical Connector

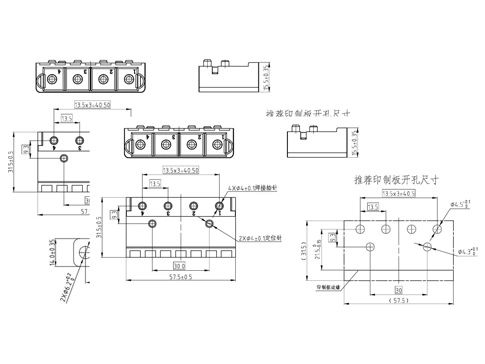

141100-JL-P4PW plug outline dimensions

The Details of 141100 Electrical Connector

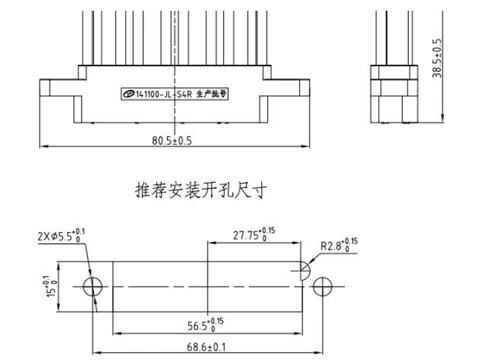

drawing dimensions

The Details of 141100 Electrical Connector

Recommended values for cables: cable outer diameter ≤8mm, stripping length 100+0.5mm

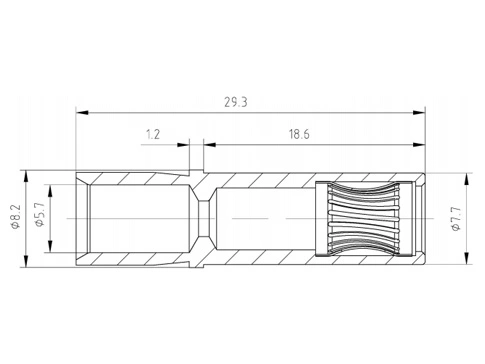

141100 Socket accessories φ5-16 mm2 Dimensions

The Details of 141100 Electrical Connector

Recommended values for cables: cable outer diameter ≤8mm, stripping length 100+0.5mm

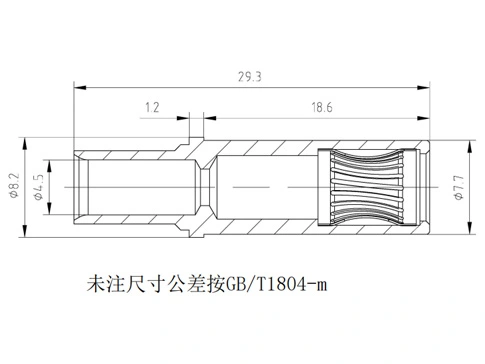

141100 Socket accessories φ5-10 mm2 dimensions

141100 Electrical Connector Storage Condition

  • The telecom connectors should be used within the technical parameters provided.

  • Storage Spec: The packaged products should be stored in a warehouse with an ambient temperature of -10℃ ~ +40℃, relative humidity below 80%, and no acid, alkaline or other corrosive gases in the surrounding air, and the storage period should not exceed two years from the production date.

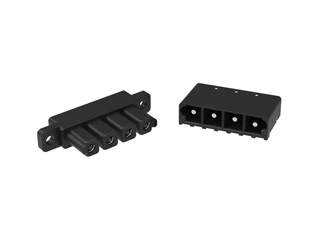

  • the production of 141100 electrical connector
