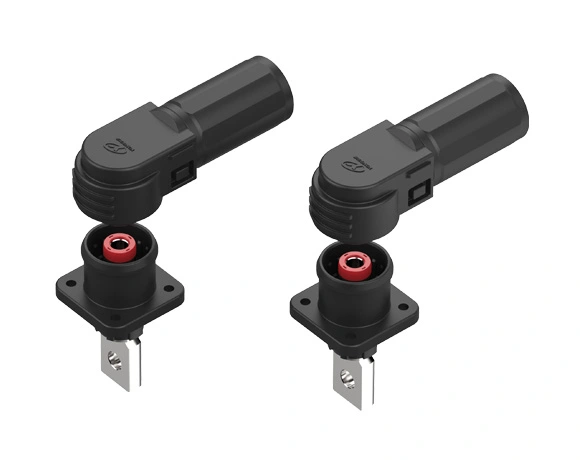

ESC-HP400 Connector

  • Cable specification: 95mm2/120mm2

  • Cable Diameter OD: 18.7±0.5mm/20.5±0.5mm

  • Termination Method: Plug: Crimp Termination(Double "B"); Receptacle: M8 Thread Termination

  • Installation Method: Screw(M4)

  • Installation Torque: 2±0.2N•m

  • Locking Method: Spring Locking

  • Preventing Misinsertion: Color Preventing; Mechanical Preventing

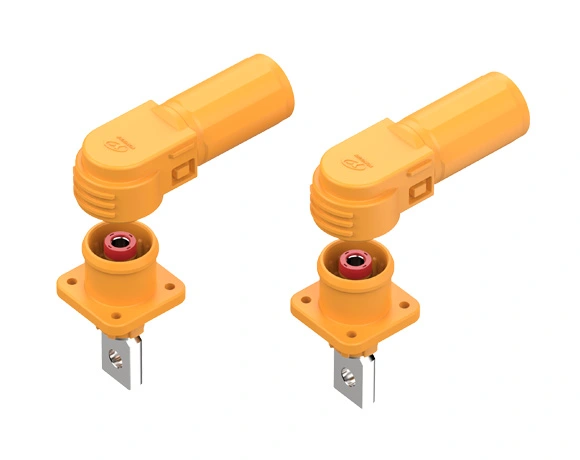

The Details of ESC-HP400 Connector

The Details of ESC-HP400 Connector

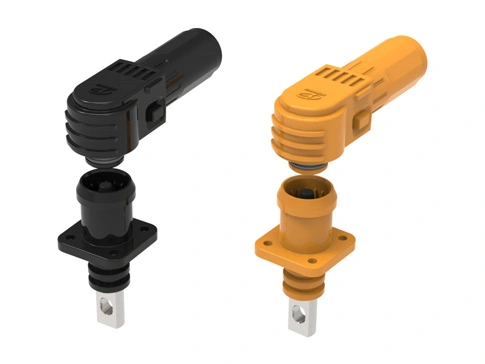

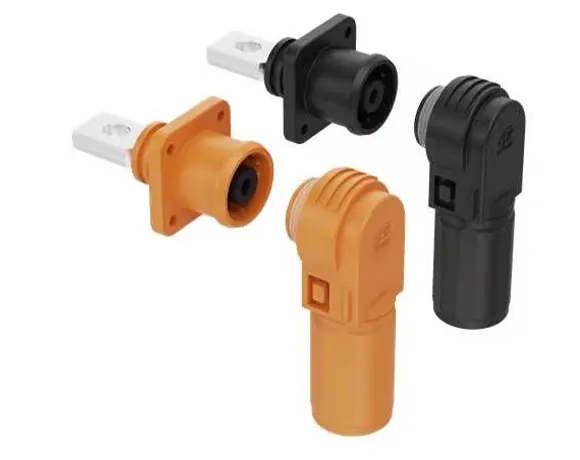

Product Outline

The Details of ESC-HP400 Connector

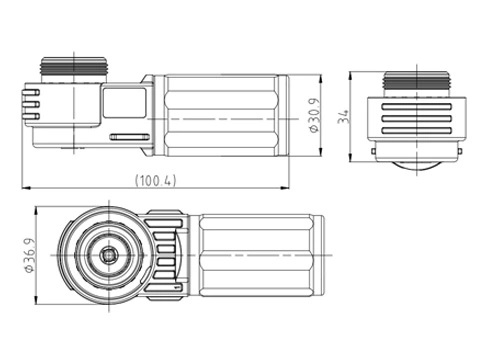

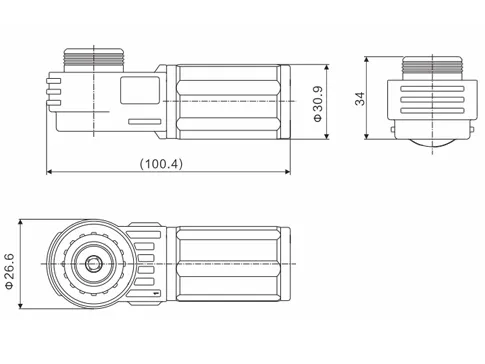

Plug Outline Dimension

The Details of ESC-HP400 Connector

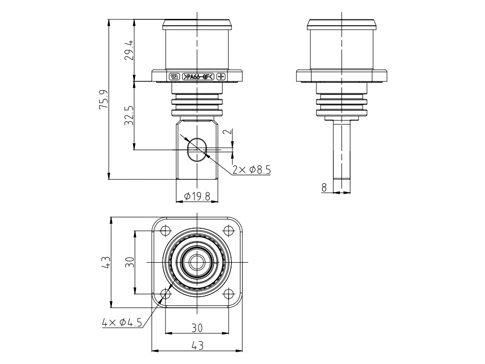

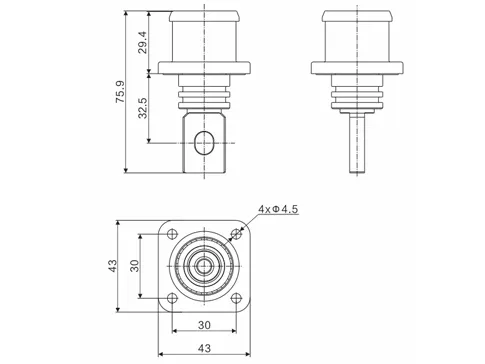

ESC-HP400-081 Series Receptacle(Take the positive electrode as an example)

The Details of ESC-HP400 Connector

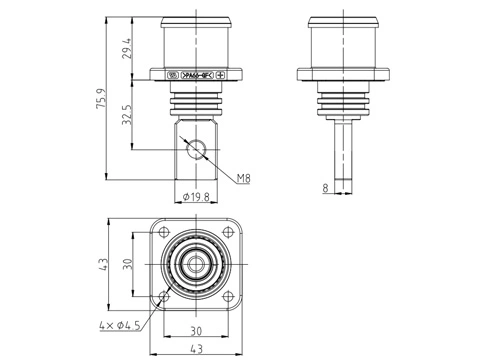

ESC-HP400-082 Series Receptacle(Take the positive electrode as an example)

The Details of ESC-HP400 Connector

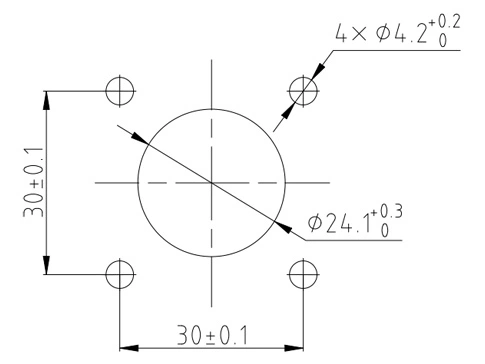

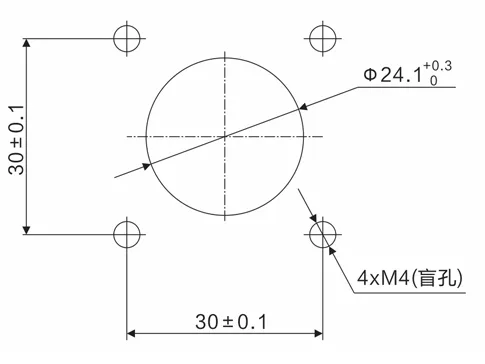

Installing Holes Dimension

Specifications of ESC-HP400 Connector

Electrical CharacteristicPins1
Terminal specificationsΦ14.5mm
Rated Current350A(95mm²)/400A(120mm²)
Rated Voltage1500V DC
Voltage Proof6800V AC 50Hz
Contact Resistance≤0.2mΩ
Insulation Resistance≥100MΩ
Temperature Rise≤45K
Mechanical CharacteristicDurability≥100 Cycles
Protection ClassIP67(Mated)
Material and FinishMaterialInsulator: Engineering plastics: Rubber parts: Silicon rubber: Contact parts: Copper alloy
Surface TreatmentSilver/Tin
Flame RatingUL94 V0(Bulk Material)
Environmental dataOperating Temperature-40℃~+125℃
Relative Humidity5%~95%
Vibration/ ShockQC/T 1067.1-2017 Vibration Level V1

ESC-HP400 Connector Storage Condition

  • The energy storage connector should be uesd within the specification that provided, Install, use and maintain the products according to the documents.

  • Packaging: moisture-proof bubble bag and carton.

  • Storage Spec: The packaged products shall be stored in the warehouse within the temperature of -10 ℃~+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.

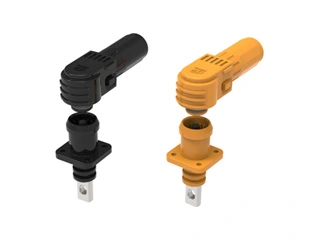

  • the production of esc hp400 connector
