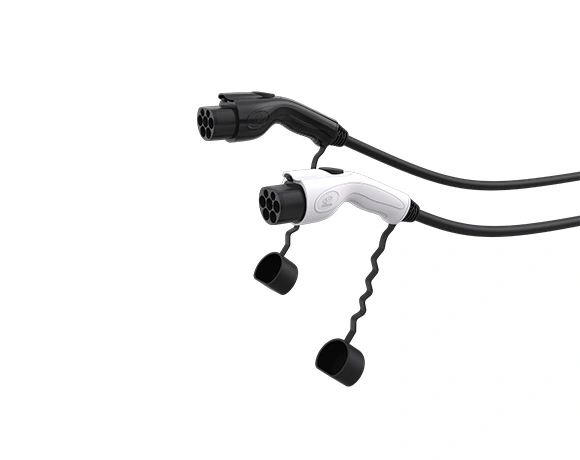

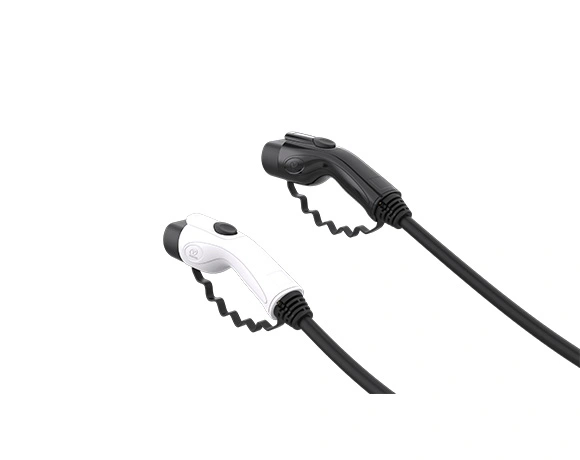

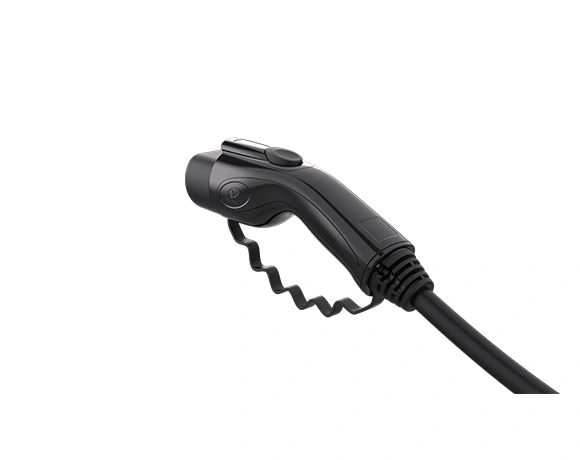

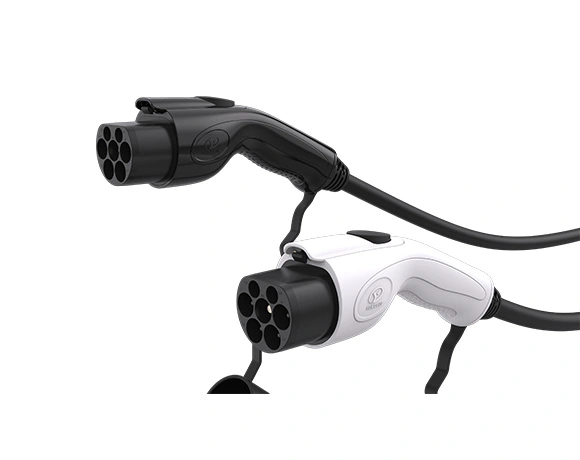

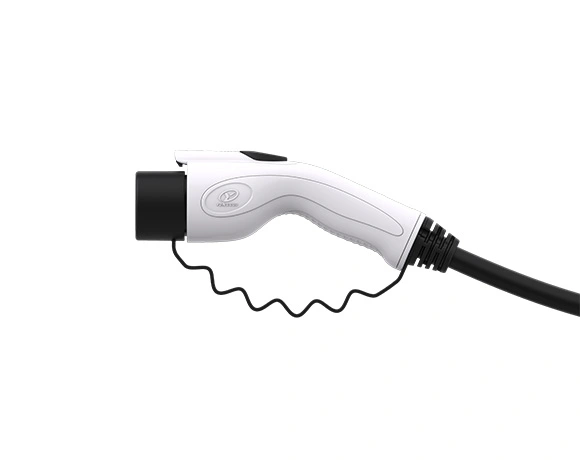

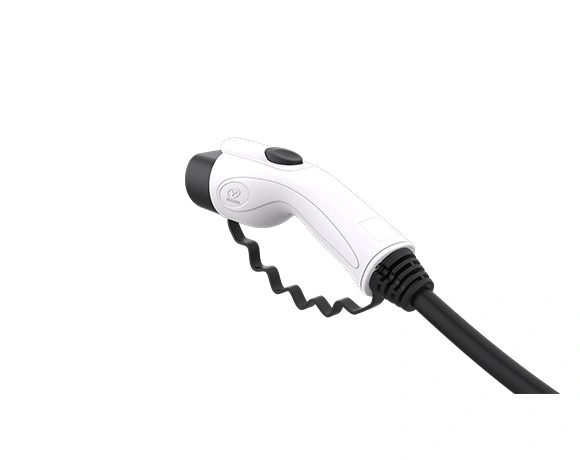

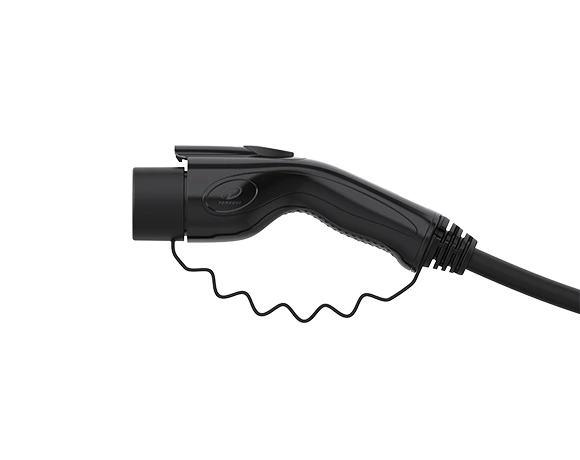

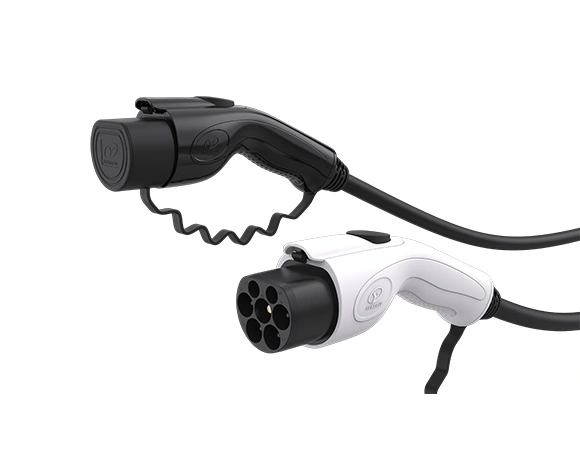

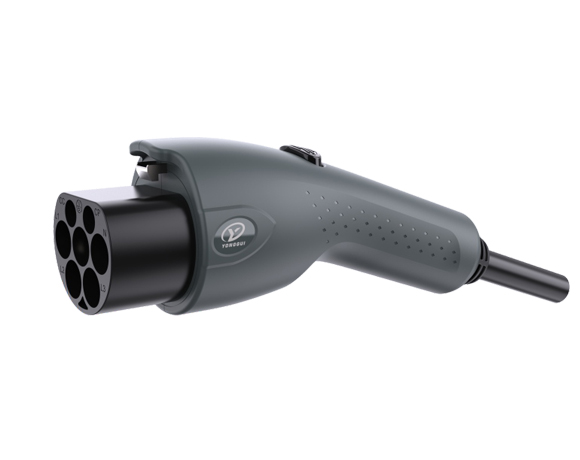

AC Vehicle Connector GB

  • Meet the requirements of GB/T20234.1/.2;

  • Passed China national strong inspection and CQC certification;

  • For AC charging, this gun type car charger connector is applicable to the corresponding standard AC charging pile in China region.

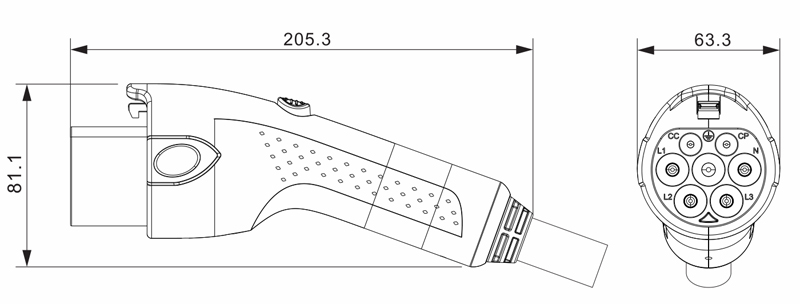

AC Vehicle Connector (GB) Technical Parameters

Electrical parameters

Port definitionL1/L2/L3/NPECCCP
Wiring specifications (unit: mm2)2.546162.546160.750.75
Contact terminal diameter(unit: mm)Φ6Φ6Φ3Φ3
Rated working voltage(AC)250V/440V/0~30V0~30V
Rated working current(AC)16A16A32A63A/2A2A
Contact resistance≤0.4mΩ≤0.4mΩ≤3mΩ
Insulation resistanceYG1143 AC plug test after wiring:
L1/N/PE/CP are ≥500MΩ (500VDC) between each other;
Test the YG1143 AC vehicle inlet after wiring:
L1/N/PE/CC/CP are ≥500MΩ (500VDC) between each other;
Withstand voltage (leakagecurrent: ≤10mA)YG1143 AC plug test after wiring:
L1/N mutually ≥2000V AC 1min;
≥2000V AC 1min between L1/N and PE respectively;
≥1500V AC 1min between L1/N/PE and CP respectively;
Test the YG1143 AC vehicle inlet after wiring:
①L1/L2/L3/N/PE mutual withstand voltage ≥2000V AC 1min;
②The withstand voltage between L1/L2/L3/N/PE and CC/CP respectively is ≥1500VAC1min.


Mechanical performance parameters

  • Mechanical Life:≥10000 cycle;

  • Insertion and separation forces:≤ 100N;

  • Locking force: ≥200N


Environmental performance parameters

  • Before insertion:IP54

  • After insertion:IP55
