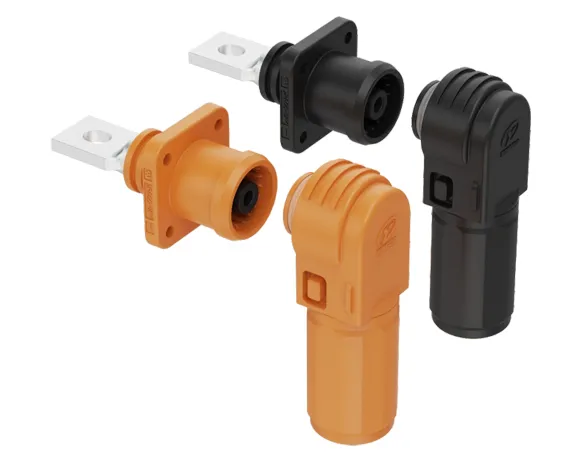

ESC-HP300 Connector

Application:Apply for power transmission of energy storage system (battery pack).


Description:

  • Touch-proof

  • Poka-yoke:

    Orange for positive、Black for negative

  • Multi angle insertion

  • Lock mode:Button locking

  • Termination Methods:

    Crimp termination、Screw termination


The Details of ESC-HP300 Connector

The Details of ESC-HP300 Connector

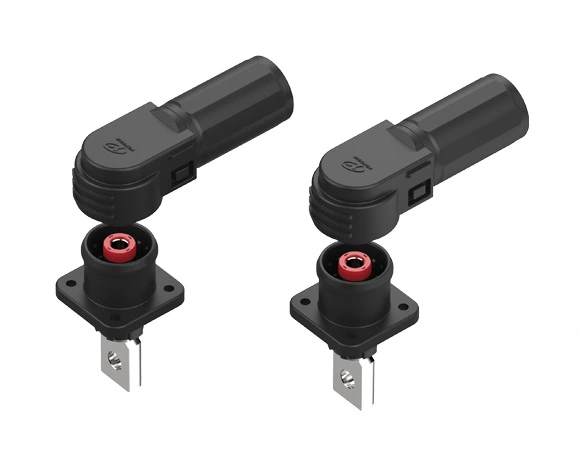

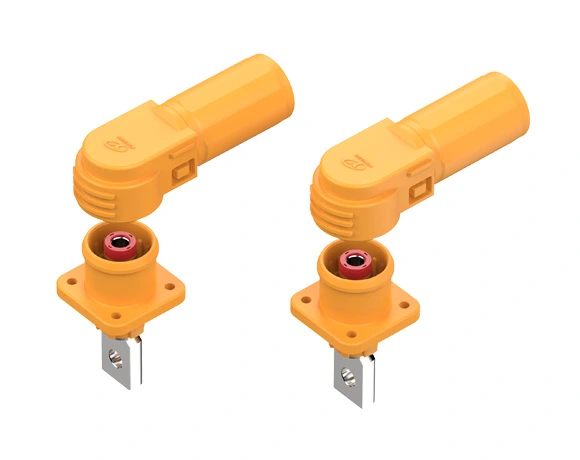

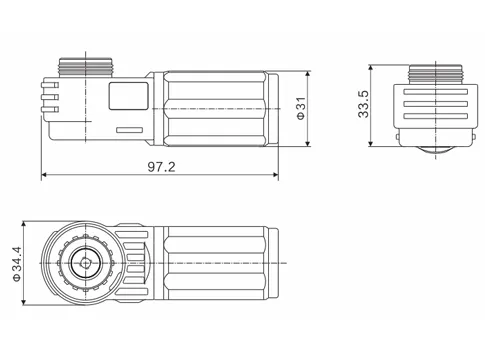

ESC-HP300 Plug

The Details of ESC-HP300 Connector

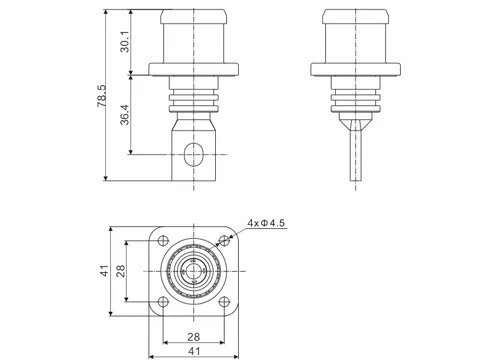

ESC-HP300 Socket

The Details of ESC-HP300 Connector

ESC-HP300 Mounting Hole Dimensions

Specifications of ESC-HP300 Connector

Specifications
Pins1
Current Rating250A(70mm²)、300A(95mm²)
Voltage Rating1500V DC
Dielectric Withstanding Voltage6800V AC 50Hz
Insulation Resistance≥100MΩ
Operating Temperature-40℃ ~+125℃
Cable specification70mm²、95mm²
Temperature rise≤45K
Protection ClassIP67(Mated)
Mechanical Life≥100 cycles
CertificationUL4128、CE


ESC-HP300 Connector Storage Condition

  • The energy storage connector should be uesd within the specification that provided, Install, use and maintain the products according to the documents.

  • Package: moisture-proof bubble bag and carton.

  • Storage Spec: The packaged products shall be stored in the warehouse within the temperature of -10 ℃~+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.

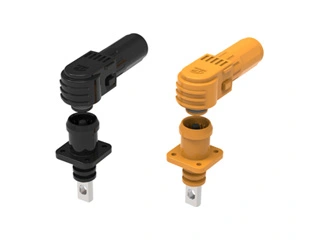

  • the production of esc hp300 connector
