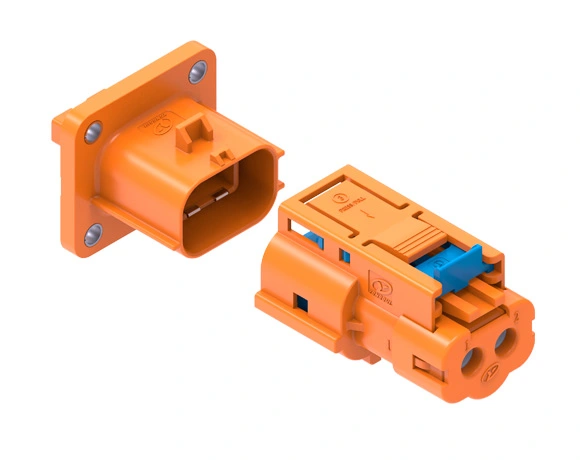

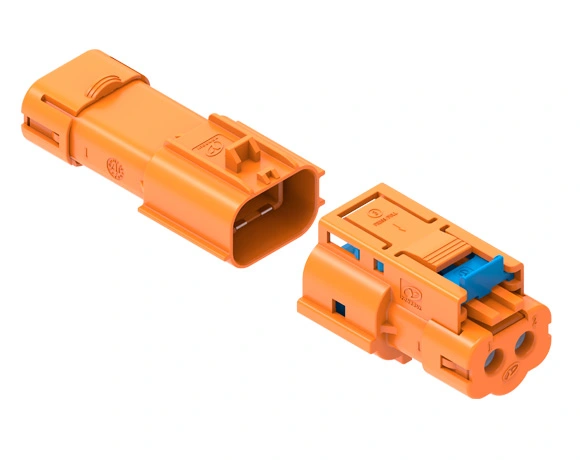

Ordering Information
| Ordering information (assembly) | |||||
| Key Position | Ⅰ | Ⅱ | III | IV | |

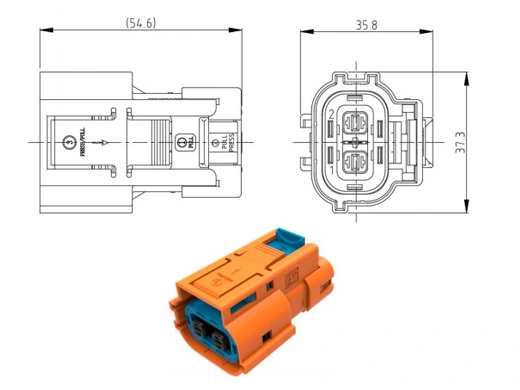

| Product Name | YGC939-EV-S2P plug | YGC939-EV-S2PB plug | YGC939-EV-S2PC plug | YGC939-EV-S2PD plug | |
| Part No. | 112010101848 | 112010102048 | 112010102053 | 112010102057 | |

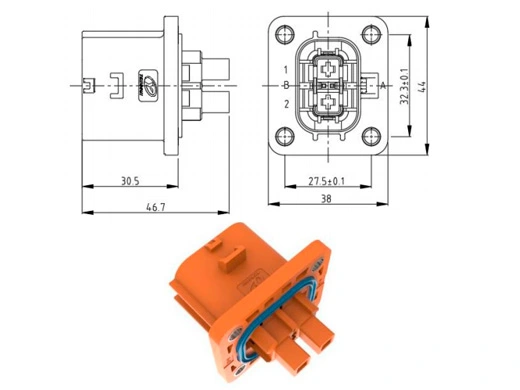

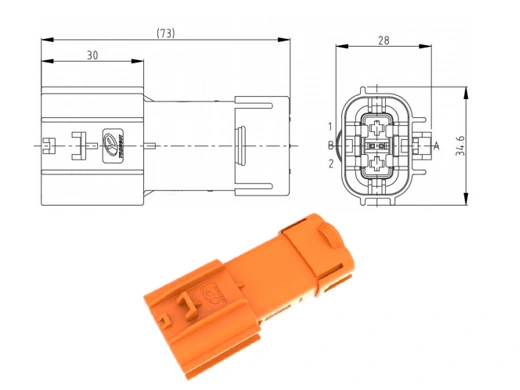

| Product Name | YGC939-EV-P2R receptacle | YGC939-EV-P2RA receptacle | YGC939-EV-P2RB receptacle | YGC939-EV-P2RC receptacle | YGC939-EV-P2RD receptacle |
| Part No. | 112020102083 | 112020102529 | 112020102282 | 112020102285 | 112020102286 |
| Ordering Information (Purchase Separately) | |||||
| Corresponding plug&receptacle | Plug | Receptacle | |||
| Product Name | YG939 power socket (2.5mm²) | YG939 power socket (4mm²) | YG939 power pin (2.5mm²) | YG939 power pin (4mm²) | YG939 signal socket (Choose one) |
| Part No. | 501021400357 | 501021401213 | 501021400216 | 501021401255 | 501021600128 /501021401859 |
| Wiring specifications | 2.5mm² Φ5.8±0.3mm | 4mm²(LV216) Φ 5.8 (0, -0.5) mm | 2.5mm² Φ 3.5±0.2mm | 4mm²(LV112) Φ 3.7 (0, -0.3) mm | 0.5mm² Φ 1.5±0.2mm |
| Diagram (reference) |  |  |  | |  |
Technical Data
| Basic Information | |
| PIN distance | 10.4mm |
| Number of cores | 2pin |
| Cable specifications | Plug end: 2.5mm² /Φ 5.8±0.3mm 4mm²(LV216)/Φ 5.8 (0,-0.5)mm receptacle end: 2.5mm² / Φ3.5 ± 0.2mm 4mm² (LV112)/Φ 3.7 (0,-0.3)mm 0.5mm² /Φ1.5 ± 0.2mm |
| Outlet direction | 180° |
| Electrical properties | |
| Rated voltage | 800 V (power), 24 V (signal) |
| Rated current | 16A (2.5mm²), 20A (4mm²) |
| Insulation resistance | ＞100MΩ（Test voltage: 1000VDC) (Normal） |
| Withstand voltage | 3000 V (power), 1000 V (signal) (50Hz AC normal) |
| Contact resistance | ≤5mΩ (power component), ≤10mΩ (signal component) |
| HVIL (Y/N) | Y |
| Shield (Y/N) | Y |
| Mechanical properties | |
| Mechanical life | ≥50 times |
| Vibration level | LV214 LEVEL 2 |
| Environmental resistance | |
| Operating temperature | -40℃～+125℃ |
| Relative humidity | 95% (at 40°C) |
| Salt spray level | 96h |
| Protection level | IP67&IP6K9K (header plug-in) |
| Altitude requirements | ≤4000m |
| Material/Coating/Appearance |
| See Parts Drawing |
| Standards and Certification | |
| Flame retardant grade | UL94 V-0 (plastic), HB (rubber) |
| Environmental requirements | RoHS 2.0 |
| Implementation Standards | QC/T 1067.1 |

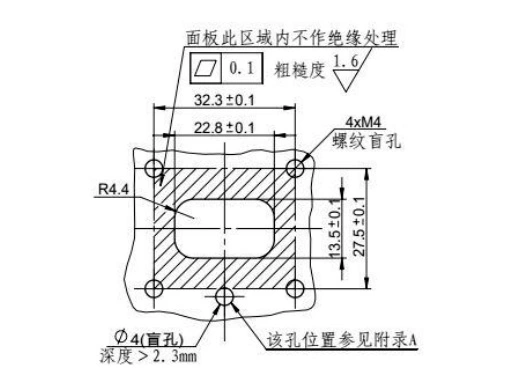

Installation Introduction
| Special tools | |
| Removal tools | Power socket: GZ939-01-01-00 Removal tool Power pin: RTSCC-04 (2.8×0.8) removal tool Signal terminal: GZ939-02-03-00 disassembly tool |
| Needle feeding tool | / |
| Crimping tools | / |
| Other Tools | / |
Store
| Packaging and storage instructions | |
| Storage requirements | Contact parts (gold-plated, silver-plated) must be stored separately, kept neat, clean and ventilated. The storage environment should be controlled at a humidity of ≤60% and a temperature of 5 ~ 30°C. Reference shelf life 6 months |
| Transshipment requirements | The terminals should be protected from collision, contact with corrosive gases and liquids, and direct contact with hands during packaging, transportation, transfer, production, and assembly to ensure that the terminal contact surface is in good condition. |
