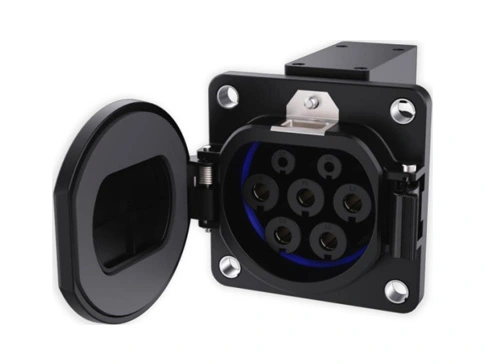

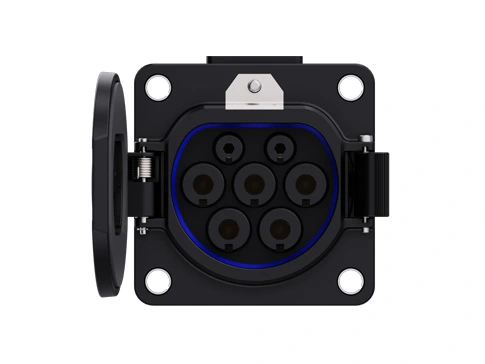

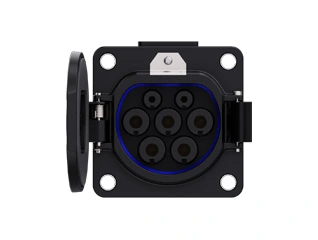

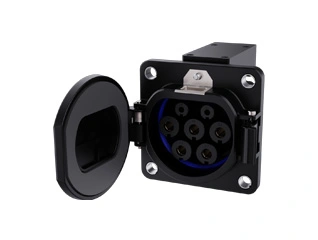

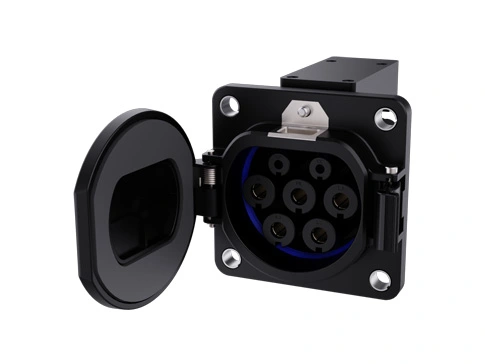

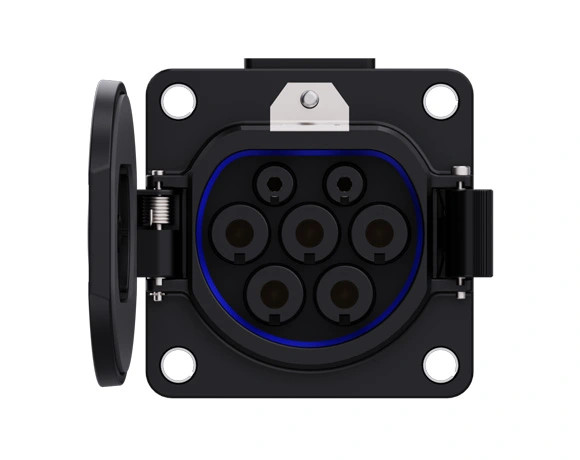

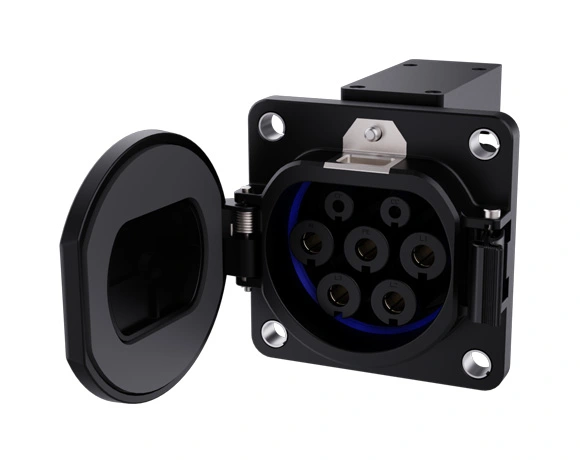

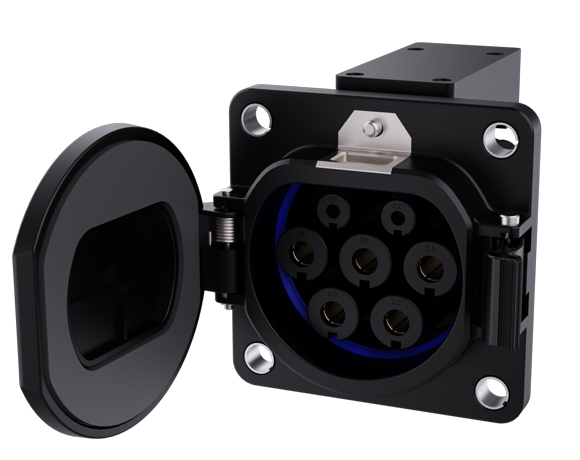

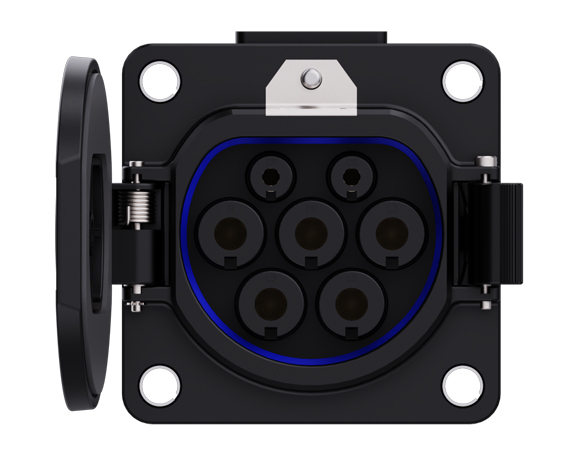

AC Vehicle Inlet GB

  • It meets the requirements of GB/T20234.1/.2;

  • Passed the Chinese national strong inspection certification;

  • Used for AC charging, applicable to electric vehicles with corresponding standards in China.

Customization of AC Vehicle Inlet (GB)

Customization of AC Vehicle Inlet (GB)

The customer's logo.

Customization of AC Vehicle Inlet (GB)

The type and length of cable.

Customization of AC Vehicle Inlet (GB)

The protective cover has the following opening methods: left clamshell/right clamshell.

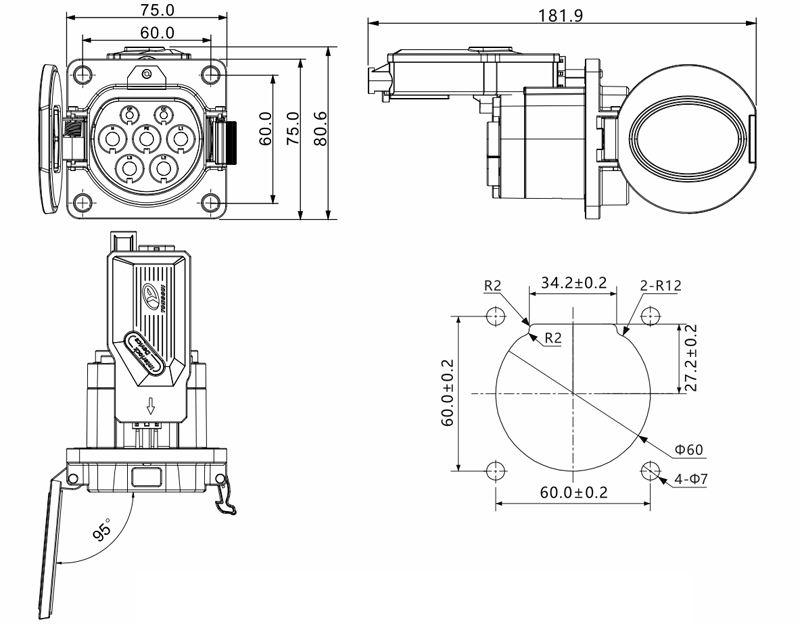

Specifications of AC Vehicle Inlet (GB)

Project/Specification10A Series16A Series32A Series
Type of powerSingle-phaseSingle- phaseThree- -phaseSingle- phaseThree- -phase
StandardGB/T 18487.1-2015 GB/T 20234.1-2015 GB/T 20234.2-2015
ModeMode2/3
Rated Voltage250V AC250V AC440V AC250V AC440V AC
Rated Current10A AC16A AC16A AC32A AC32A AC
Voltage Resistance1.Any two of L1/L2/L3/N/PE≥2500V AC 1min;
2. Between CC/CP and L1/L2/L3/N/PE≥1 500V AC 1min;
*Note: In the single-phase case, the test number 1 can be performed at a voltage of 2000V AC 1min.
Insulation ResistanceAny two ofL 1/L2/L3/N/PE/CC/CP≥500M2.
*Note: The testing voltage is 1000V DC.
Degree of protectionBefore insertion: IP54; After insertion: IP55 Electrical part: IP67 ( Except the interface with socket )
Cycles life≥10000
Insertion/withdrawal force<100N
Ambient temperature-30°C ~ +50^C
The type of temperature controlled1. Temperature sensor: PT1000/NTC
device(optional)2. Temperature switch
Flame retardant ratingUL .94 V-0
Surface material of power contactsAg
OD of cableContactSection specificationOD of cableSection specificationOD of cableSection specificationOD of cable
L1/L2/L3 JustL1 when it's single -phase2.5mm2Ф2.5±0.15mm2.5mm2Ф2.5±0.15mm6mm2Ф4.9±0.15mm
N2.5mm2Ф2.5±0.15mm2.5mm2Ф2.5±0.15mm6mm2Ф4.9±0.15mm
PE2.5mm2Ф2.5±0.15mm2.5mm2Ф2.5±0.15mm6mm2Ф4.9±0.15mm
CC/CP0.75mm2Ф1.8±0.1mm0.75mm2Ф1.8±0.1mm0.75mm2Ф1.8±0.1mm


Application of AC Vehicle Inlet (GB)

Suitable for the electric vehicle AC charging in China area.
