𐄀 Technology Connection to Future
Application：Battery 、Motor controller 、E-Motor 、PDU 、BDU
Description：
Screw Locking
Cable Range：35 ～50mm2
Poka-yoke
HVIL
Touch-proof
360 °shielding

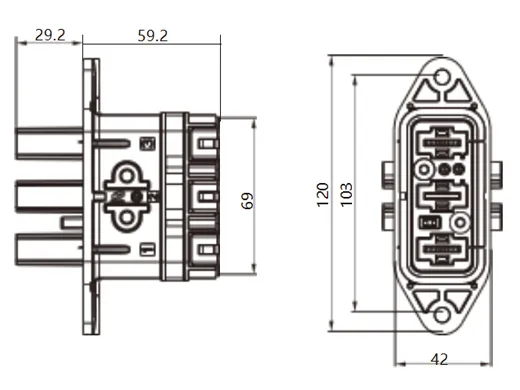

YG1411-3-pin 180 ° Plug

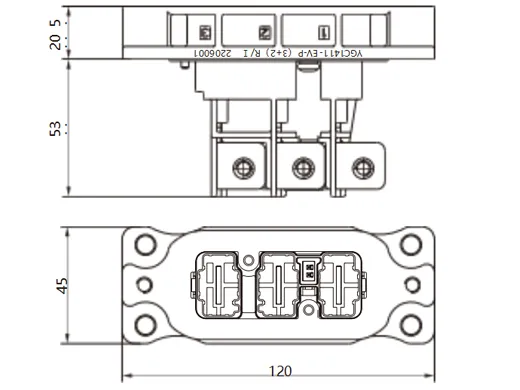

YG1411-3-pin Receptacle

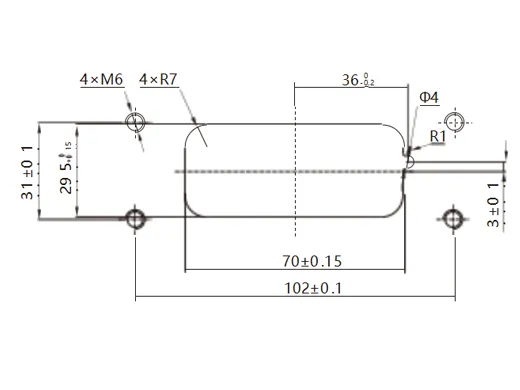

YG1411-3-pin Mounting Interface Design
| Specifications | |
| Rated Current | |
| Power | 150A(35mm2) 200A(50mm2) |
| Signal | 2A(0 .5mm2) |
| Rated Voltage | |
| Power | 1000V(AC/DC) |
| Signal | 24V (AC/DC) |
| Dielectric Withstanding Voltage | |
| Power | 3000V AC 50HZ(Normal) |
| Signal | 1000V AC 50HZ(Normal) |
| Temperature Range | -40℃ ~ + 125℃ |
| IP Rating | IP67&IP6K9K 、IPXXB |
