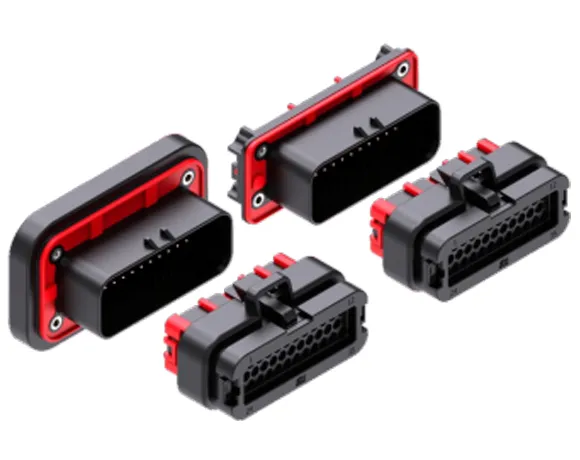

YG1146-35Pin

Plug

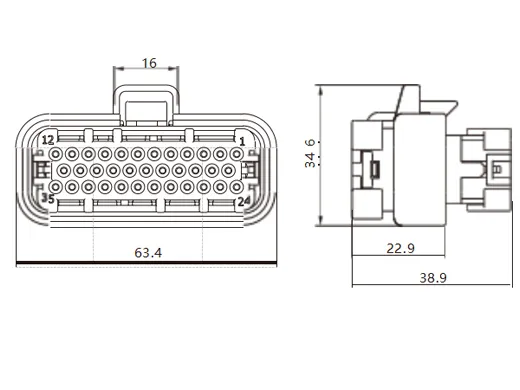

YGC1146-EV-S35P

111000402785

16～20AWG 1mm²、1.5mm²

Excluding sockets. Sockets are purchased separately.

For details, refer to the supporting parts list.

Housing color: black.

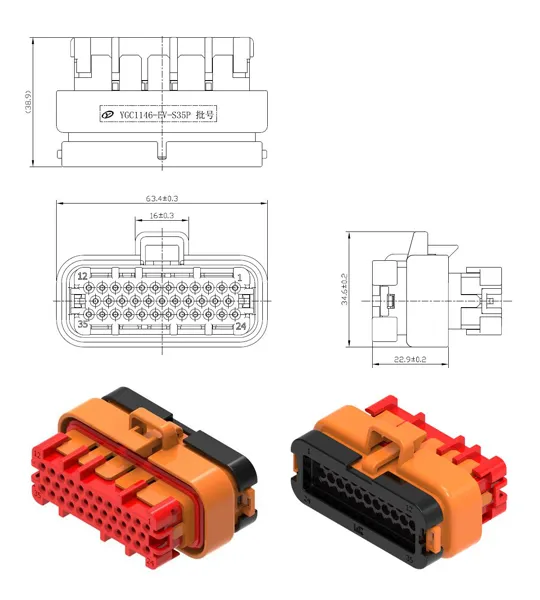

YGC1146-EV-S35PA

111000405423

16～20AWG 1mm²、1.5mm²

Excluding sockets. Sockets are purchased separately.

For details, refer to the supporting parts list.

Housing color: orange

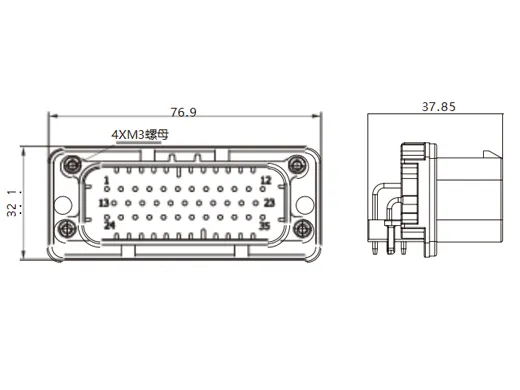

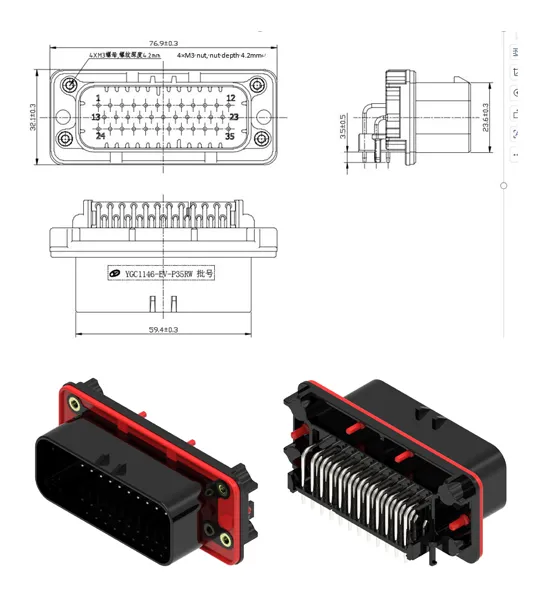

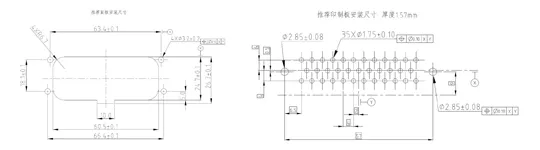

Right-angle receptacle; Rear panel mounting;

Housing color: black

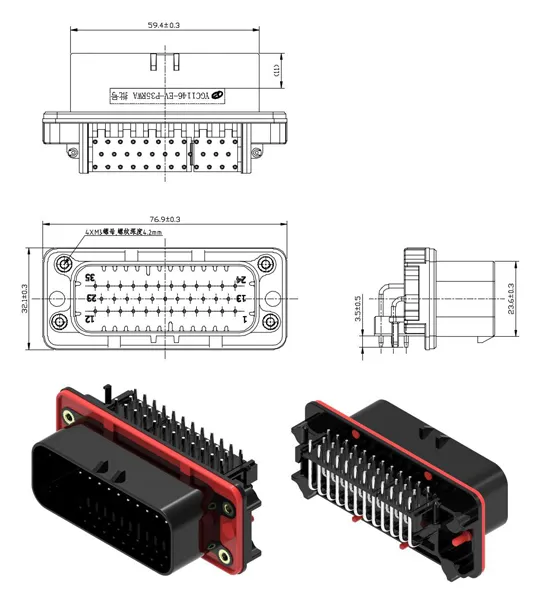

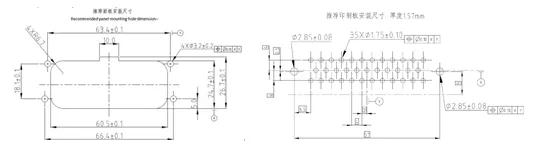

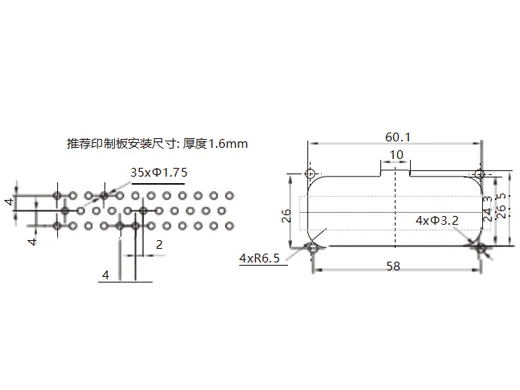

Right-angle receptacle; Rear panel mounting;

The plug-receptacle locking direction is opposite to that of the YGC1146-EV-P35RW.

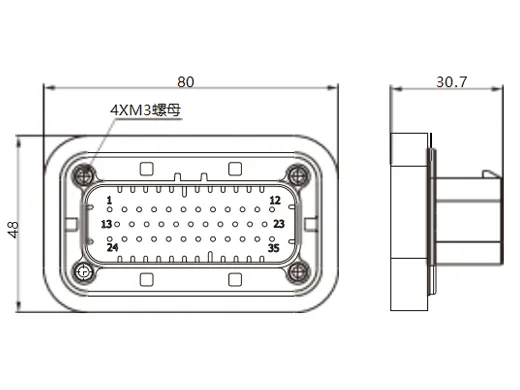

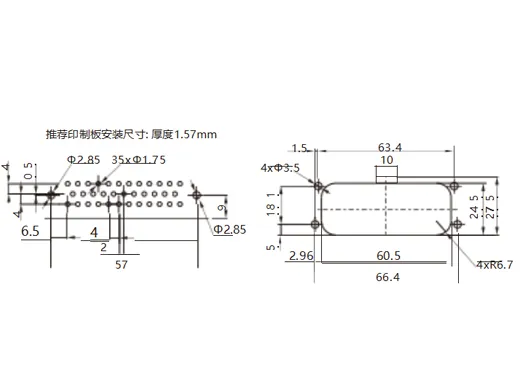

Straight receptacle; Rear-panel mounting;

Housing color: black

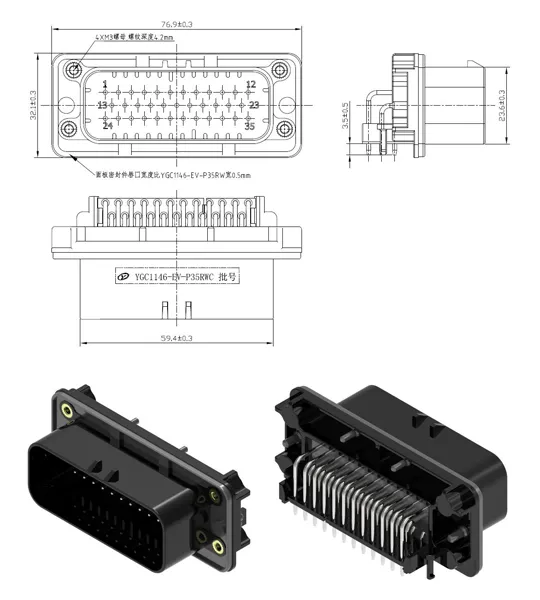

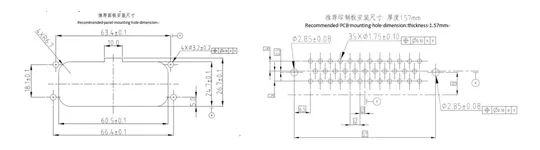

YGC1146-EV-P35RWC

Right-angle receptacle; Rear panel mounting;

The lip width of the panel seal is 0.5 mm wider than that of the YGC1146-EV-P35RW.

Housing color: black

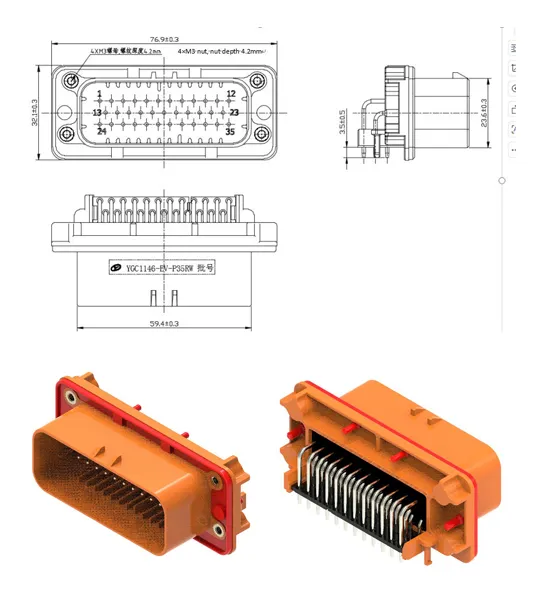

Right-angle receptacle; Rear panel mounting;

Housing color: orange

Product name

Product code

Qty

Wiring specification

Diagram(for reference)

Remarks

Socket

114020100384

n(n≤35)

16～20AWG 1mm²、1.5mm²

/

Order Separately, Comes with Plug

YG121 seal plug

114069800201

35-n

/

Ordered separately, the plug is not equipped with holes.

Insulation resistance

≥200MΩ(500DC normal state)

Withstand voltage

1000 V

HVIL

No

Mechanical specification

Life cycle

≥50 Times

Shock

USCAR V2

Environmental resistance specification

Ambient temperature

-40℃ ~ +125℃

Humidity range

95％(at 40℃)

Salt spray

720h

IP rating

IP67 & IP6K9K, the receptacle can achieve independent waterproofing.

Pollution level

2

Altitude

≤2000m

Materials/Finish/Outline

Shell

PA66

Contacts

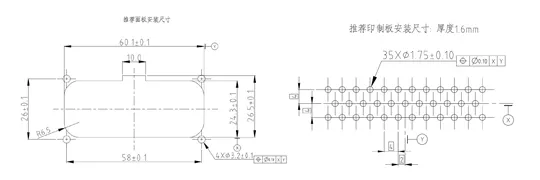

Tin-plated(YGC1146-EV-P35RB is gold-plated)

Standards and certifications

Flame retardant rating

UL94 V-0(plastic), HB(rubber)

Environment requirements

RoHS 2.0

Storage requirement

Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months.

Transportation requirement

During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces.
