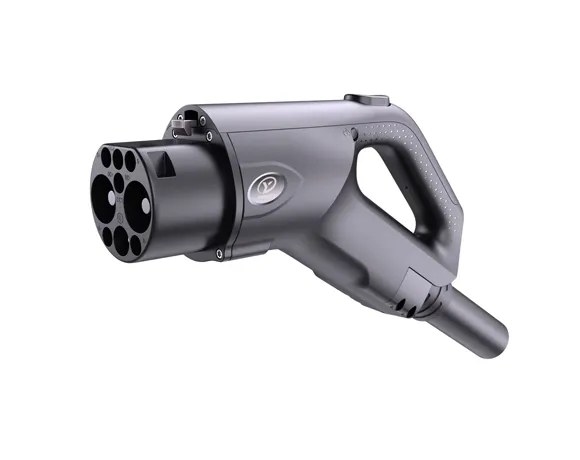

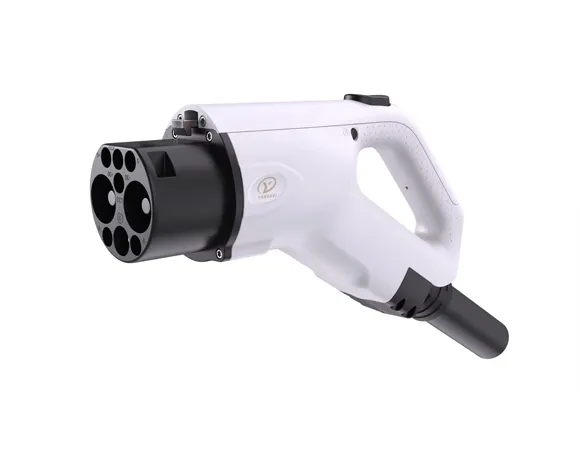

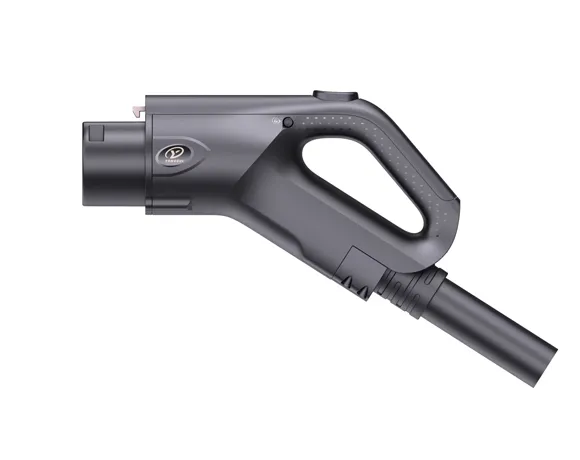

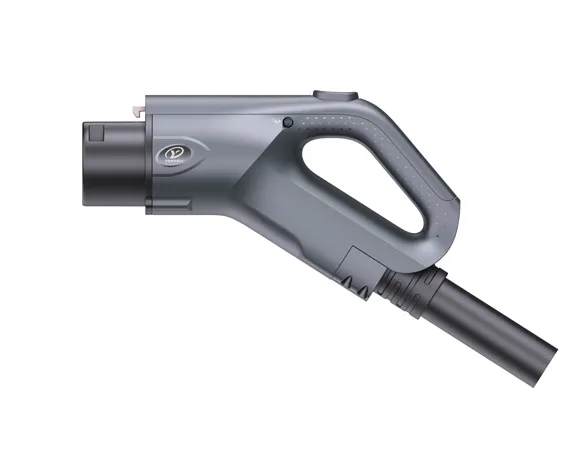

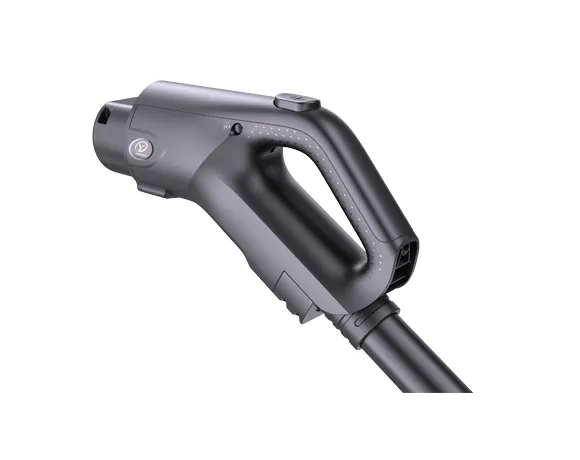

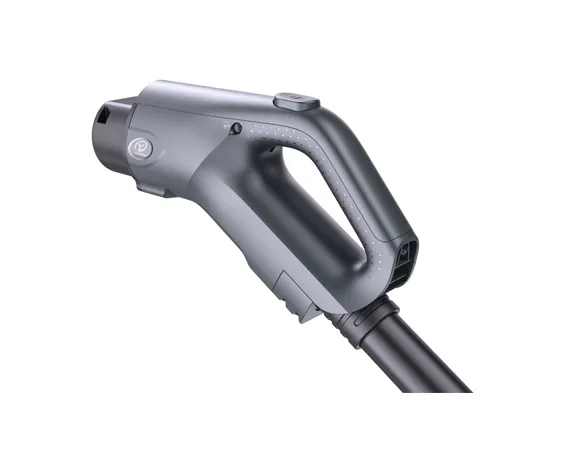

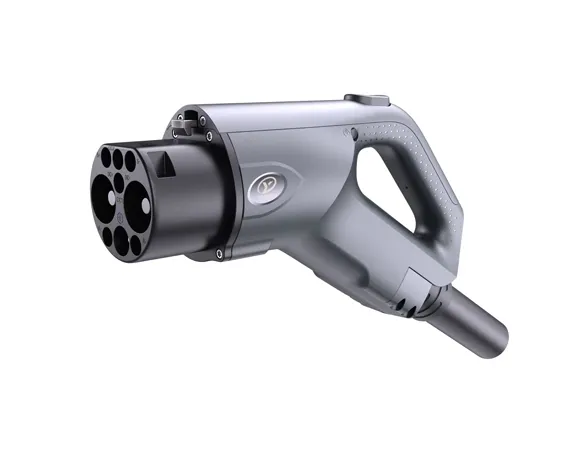

Applicable to the corresponding standard DC charging station in China area. lt needs to be connected to the suitable liquid cooling system.
High protection
High structural strength
Accurate temperature monitoring
Lightweight design
Ergonomic design
Aesthetic design of family style
| Specifications | ||
ltem | 500A series | 600A series |
Standard | GB/T 20234.1-2023 GB/T 20234.3-2023 GB/T 18487.1-2023 GB/T18487.5-2024 | |
Rated voltage | 1000V DC | |
Rated current | 500A DC | 600A DC |
Peak current | 600A DC | 800A DC |
Voltage resistance | 3000V AC | |
Insulation resistance | >500MΩ | |
Degree of protection | Before insertion: IP54; After insertion: IP55 Electrical part: : IP67(Except the interface with socket) | |
Cycles life | ≥10000 | |
lnsertion and withdrawal force | <140N | |
Ambient temperature | -30°C ~+ 50°C | |
Flame retardant rating | UL94 V-0/UL94 HB | |
Coating material of power contacts | Ag | |
External cable diameter | Φ32±0.5mm | |
Minimum bending radius | ≥10D | |
Cooling circuit | Two inlet pipes and two outlet pipes | |
| Cooling medium | Ethylene Glycol-Based coolant predilute(GB 29743) | |
