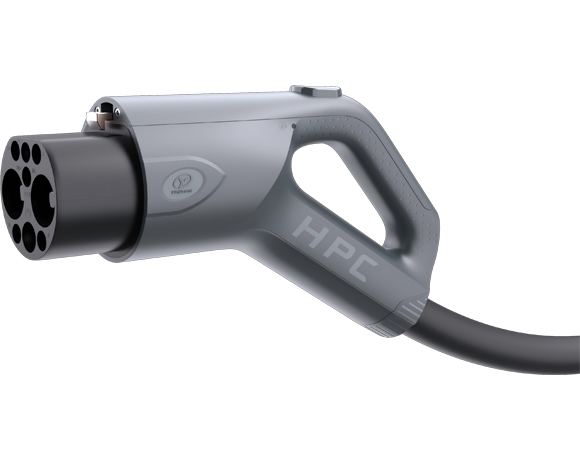

Applicable to the corresponding standard DC charging station in China area. lt needs to be connected to the suitable liquid cooling system.
High protection
High structural strength
Accurate temperature monitoring
Lightweight design
Ergonomic design
Aesthetic design of family style
| Specifications | |||
Item | 400A series | 600A series | 800A series |
Standard | GB/T20234.1-2023 GB/T 20234.3-2023 GB/T 18487.1-2023 GB/T18487.5-2024 | ||
Rated voltage | 1000V DC | ||
Rated current | 400A DC | 600A DC | 800A DC |
Peak current | 600A DC | 800A DC | 1000A DC |
Voltage resistance | 3000V AC | ||
lnsulation resistance | >500MΩ | ||
Degree of protection | Before insertion: IP54; After insertion: IP55 Electrical part: : IP67 (Except the interface with socket) | ||
Cycles life | ≥10000 | ||
Insertion and withdrawal force | <140N | ||
Ambient temperature | -30℃ ~+ 50°C | ||
Flame retardant rating | UL94V-0/UL94 HB | ||
Coating material of power contacts | Ag | ||
External cable diameter | Φ30±0.6mm | ||
Minimum bending radius | ≥10 OD | ||
Cooling circuit | One inlet pipe and two outlet pipes | ||
| Cooling medium | Shell E4 CCF (charging cooling fluid) | ||
