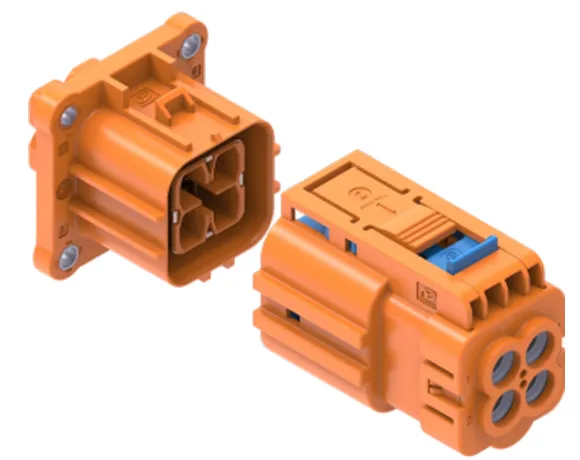

This product can achieve 360-degree full shielding.
The product can realize secondary interlocking and unlocking;
The product has a delayed high voltage interlocking function.
The two-end foolproof key positions adopt two different combinations to achieve the error-proof insertion function.
The connection between the plug and the receptacle is a straight plug-in locking structure.
The plug and receptacle adopt terminal crimping.
Suitable for electrical connections of electric vehicle components such as chargers, DC/DC converters, and high-voltage boxes.

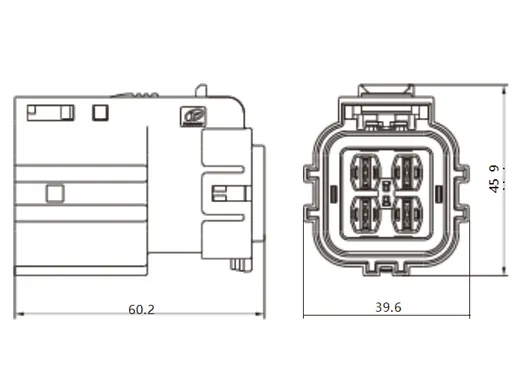

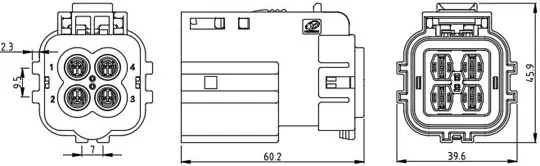

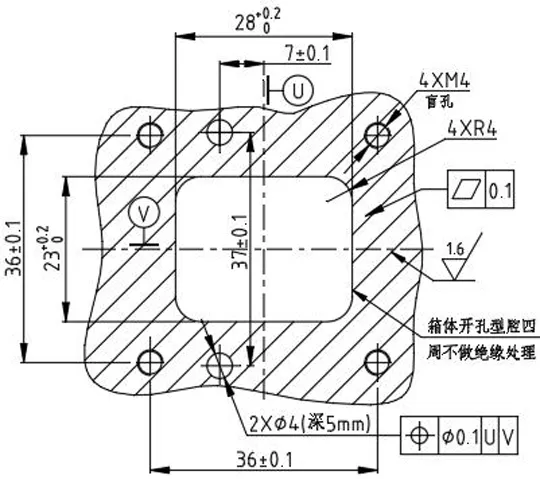

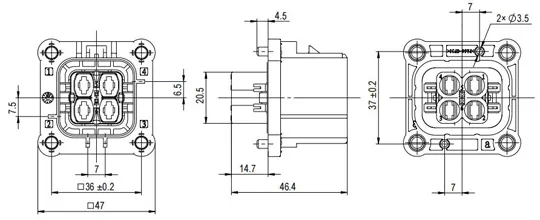

YGC1174-EV-P(4+2)RBB receptacle mounting hole dimensions (unspecified tolerance: ±0.1)
Ordering information
| Ordering information | ||||||||||
| Key position | A | B | ||||||||
| Product name | YGC1174-EV-S(4+2)PBB plug | YGC1174-EV-S(4+2)PBC plug | ||||||||
| Product code | 112010103232 | 112010104369 | ||||||||
| Product name | YGC1174-EV-P(4+2)RBB receptacle | YGC1174-EV-P(4+2)RBD receptacle | ||||||||
| Product code | 112020103527 | 113069800570 | ||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | |||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||
| YGC1174-EV-S(4+2)PBB plug(4mm²) | Product no. | YGC1174-EV-S(4+2)PBB plug | 112010103232 | 1 | / |  | ||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 4 | 4mm²(LV216) Φ5.8(0, -0.5)mm |  | ||||||
| YG1163A shielding sleeve | 114022600252 | 4 |  | |||||||
| YG1174B power terminal baffle - 4 sq(216) | 115980034302 | 1 |  | |||||||
| YG1174D plug cable seal | 114050501309 | 1 |  | |||||||
| YG1174B/2 plug tail clamp | 115980032002 | 1 |  | |||||||
| YGC1174-EV-S(4+2)PBB plug(6mm²) | Product no. | YGC1174-EV-S(4+2)PBB plug | 112010103232 | 1 | / |  | ||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 4 | 6mm²( LV216) Φ6.5(0, -0.5)mm |  | ||||||
| YG1163B shielding sleeve | 114022600253 | 4 |  | |||||||
| YG1174B power terminal baffle - 6 sq(216) | 115980034301 | 1 |  | |||||||
| YG1174B plug cable seal | 114050501290 | 1 |  | |||||||
| YG1174B/1 plug tail clamp | 115980032001 | 1 |  | |||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | |||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||
| YGC1174-EV-P(4+2)RBB receptacle (4-6mm²) | Product no. | YGC1174-EV-P(4+2)RBB receptacle | 112020103527 | 1 | / |  | ||||
| 5.8 ×0.8 pins(4~6mm² ) | 501021401626 | 4 | Φ4.5 ±0.2mm(4mm²) Φ4.9 ±0.2mm(6mm²) |  | ||||||
| 0.63 ×0.63 pins | 501021400215 | 2 | Φ 1.6 ±0.1mm (0.5mm²) |  | ||||||
| YGC1174-EV-S(4+2) PBC plug(4mm²) | Product no. | YGC1174-EV-S(4+2) PBC plug | 112010104369 | 1 | / |  | ||||
| 5.8 ×0.8 socket(4~6 mm² ) | 501021401790 | 4 | 4mm²(LV216) Φ5.8(0, -0.5)mm | | ||||||
| YG1163A shielding sleeve | 114022600252 | 4 | | |||||||
| YG1174B 功率端子挡板-4 平方 (216) YG1174B power terminal baffle - 4 sq (216) | 115980034302 | 1 | | |||||||
| YG1174D plug cable seal | 114050501309 | 1 |  | |||||||
| YG1174B/2 plug tail clamp | 115980032002 | 1 | | |||||||
| YGC1174-EV-S(4+2) PBC plug(6mm²) | Product no. | YGC1174-EV-S(4+2) PBC plug | 112010104369 | 1 | / |  | ||||
| 5.8 ×0.8 socket (4~6mm² ) | 501021401790 | 4 | 6mm²(LV216) Φ6.5(0, -0.5)mm | | ||||||
| YG1163B shielding sleeve | 114022600253 | 4 | | |||||||
| YG1174B power terminal baffle - 6 sq(216) | 115980034301 | 1 | | |||||||
| YG1174B plug cable seal | 114050501290 | 1 |  | |||||||
| YG1174B/1 plug tail clamp | 115980032001 | 1 | | |||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | |||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||
| YGC1174-EV-P(4+2)RBD receptacle(4-6mm²) | Product no. | YGC1174-EV-P(4+2)RBD receptacle | 113069800570 | 1 | / |  | ||||
| 5.8 ×0.8 pins (4~6mm²) | 501021401626 | 4 | Φ4.5 ±0.2mm (4mm²) Φ4.9 ±0.2mm(6mm²) |  | ||||||
| 0.63×0.63 pins | 501021400215 | 2 | Φ1.6 ±0.1mm (0.5mm²) |  | ||||||
Technical data
| Basic information | |||||||||
| PIN distance | Power: 10*10 | ||||||||
| Compatible shell | / | ||||||||
| Cable outlet direction | 90 ° | ||||||||
| Numbers of cable outlet | 4 | ||||||||
| Termination method(optional) | |||||||||
| Termination method | / | ||||||||
| Wiring specifications | / | ||||||||
| Compatible cable | 4mm²/6mm²(LV216 shielded) plugs Receptacle: soldering type | ||||||||
| Electrical performance | |||||||||
| Rated voltage | 800V(power); 24V(signal) | ||||||||
| Rated current | 30A(4mm²); 40A(6mm²) | ||||||||
| Insulation resistance | ≥2000MΩ (power), ≥ 1000MΩ (signal) (normal) | ||||||||
| Withstand voltage | 3000 V(power), 1000 V(signal) (50Hz AC normal) | ||||||||
| Contact resistance | The contact resistance of the 0.64mm connector terminal is ≤40mΩ; 5.8mm terminal contact resistance ≤ 1.5mΩ | ||||||||
| HVIL | Yes | ||||||||
| Shell-to-shell electrical continuity/shielding contact resistance | The resistance between the cable shield and the plug shield is ≤3mΩ; ≤4mΩ between plug and receptacle; ≤2mΩ between receptacle and mounting panel | ||||||||
| Mechanical performance | |||||||||
| Withdraw force | ≤75N | ||||||||
| Insertion force | ≤75N | ||||||||
| Locking force | Locking structure ≥ 100N(terminal specification >0.28mm) | ||||||||
| Life cycle | >50 times | ||||||||
| Vibration | V2 | ||||||||
| Shock | V2 | ||||||||
| Environmental resistance performance | |||||||||
| Ambient temperature | -40℃ ~ +125℃ | ||||||||
| Humidity range | 95 %(at 40℃) | ||||||||
| Salt spray | 96h | ||||||||
| IP rating | IP67 & IP6K9K Plug and receptacle are mating. | ||||||||
| Pollution level | 2 | ||||||||
| Altitude requirements | ≤2000m | ||||||||
| Materials/Finish/Outline | |||||||||
| Refer to the component drawing. | |||||||||
| Standards and certification | |||||||||
| Flame retardant rating | UL94 V-0(plastic), HB(rubber) | ||||||||
| Environmental requirements | ROHS 2.0 | ||||||||
| Implementation standard | QC/T 1067.1 | ||||||||
| For other technical data, refer to the DV/PV test report. | |||||||||
Installation
| Crimping tool | |||||||||
| Disassembly tool | Power pin disassembly tool(532031201008) Power socket disassembly tool(532031201010) Signal pin disassembly tool(532031201009) | ||||||||
| Needle feeding tool | / | ||||||||
| Crimping tool | / | ||||||||
| Other tool | / | ||||||||
Storage
| Storage& transportation | |||||||||
| Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with ahumidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. | ||||||||
| Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. | ||||||||
