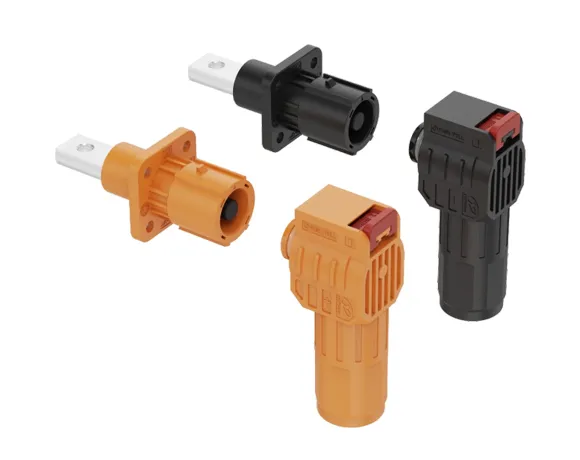

Application：Apply for power transmission of energy storage system (battery pack).
Description：
Touch-proof
Poka-yoke：
Orange for positive、Black for negative
360° rotation after insertion
Lock mode：Lock buckle+secondary lock
Termination Methods：
Crimp termination、Screw termination

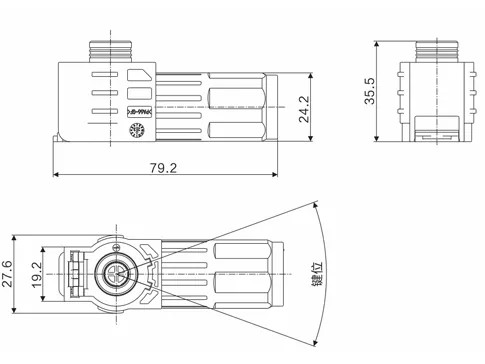

ESC-HPB250-1 Plug

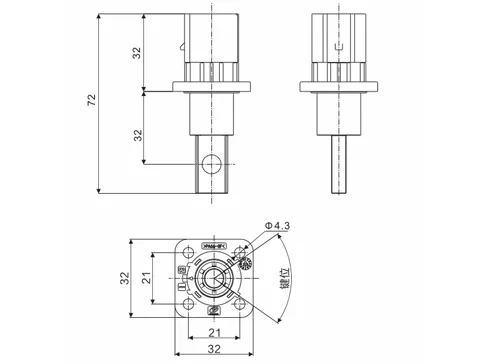

ESC-HPB250-1 Socket

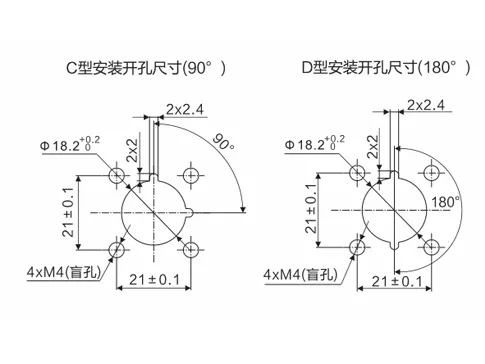

ESC-HPB250-1 Mounting Hole Dimensions
ESC-HPB250-1 Mounting Hole Dimensions
| Specifications | |
| Pins | 1 |
| Current Rating | 150A(35mm²)、200A(50mm²)、250A(70mm²) |
| Voltage Rating | 1500V DC |
| Dielectric Withstanding Voltage | 6800V AC 50Hz |
| Insulation Resistance | ≥5000MΩ |
| Operating Temperature | -40℃ ~ +125℃ |
| Cable specification | 35mm²、50mm²、70mm² |
| Temperature rise | ≤45K |
| Protection Class | IP67(Mated) |
| Mechanical Life | ≥100 cycles |
| Certification | UL4128、TUV、CE |
