Application：OBC 、Air Condition Compressor 、PTC 、PDU
Description：
Secondary Lock Function
Cable Range：4mm2
Poka-yoke
HVIL
Touch-proof
360 °shielding

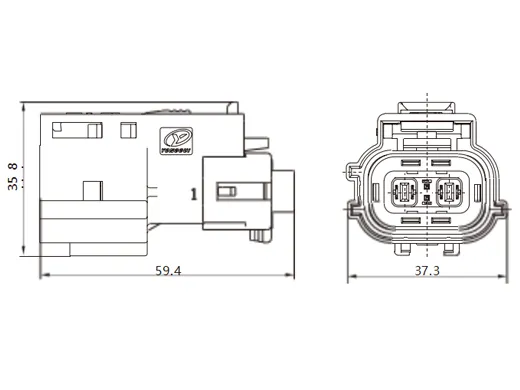

YG1174 2-Pin 180 ° Plug

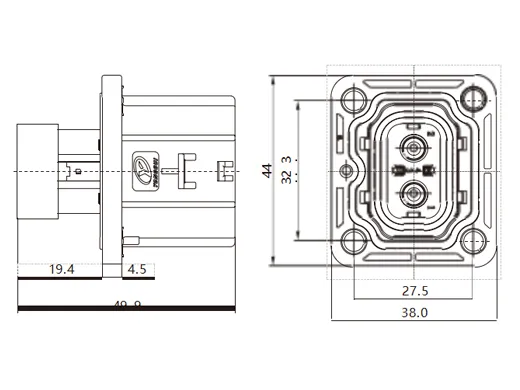

YG1174 2-Pin Receptacle

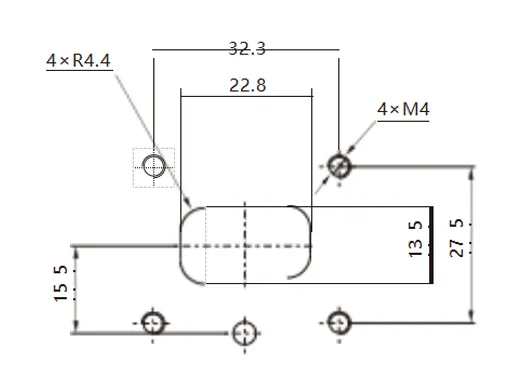

YG1174 2-Pin Mounting Interface Design
| Specifications | |
| Rated Current | |
| Power | 24A(4mm2) |
| Signal | 2A(0 .35mm2) |
| Rated Voltage | |
| Power | 800V(AC/DC) |
| Signal | 24V (AC/DC) |
| Dielectric Withstanding Voltage | |
| Power | 3000V AC 50HZ(Normal) |
| Signal | 1000V AC 50HZ(Normal) |
| Temperature Range | -40℃ ~ + 125℃ |
| IP Rating | IP67&IP6K9K 、IPXXB |
