Application：Signal transmission of energy storage system (battery pack).
Description：
Simple appearance, small size, easy to assemble
Use network interface standards
To meet customer wall penetration and welding customization needs

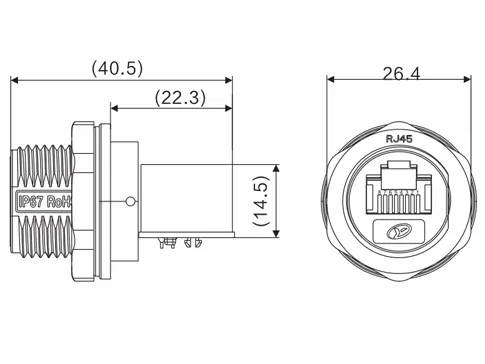

YGC583-RJ45RC/RE Socket

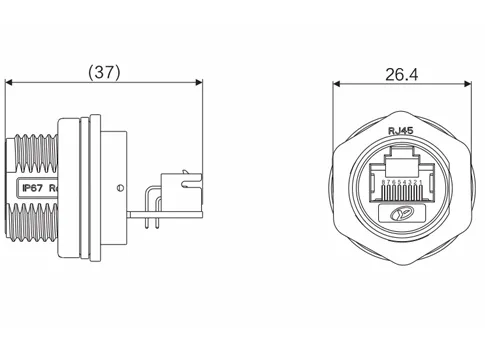

YGC583-RJ45RG/RH Socket

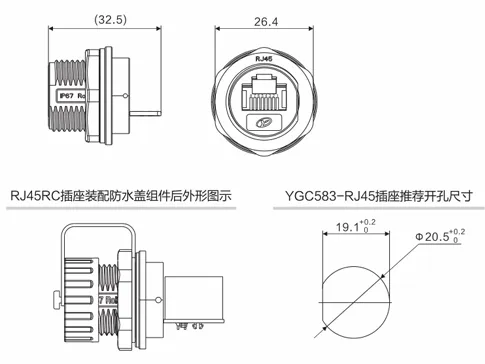

YGC583-RJ45RD/RF Socket

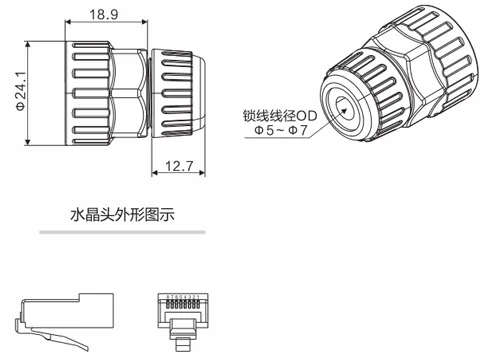

YG583-RJ45PA/PB Plug
| Specifications | |
| Pin | 8 |
| Current Rating | 0.2A |
| Voltage Rating | 32V DC |
| Dielectric Withstanding Voltage | 500V AC 50Hz |
| Insulation Resistance | ≥500MΩ |
| Transfer Rate | ≥100M |
| Operating Temperature | -25℃ ~ +85℃ |
| Cable range | Category 5e Network Cable |
| Protection Class | IP67 |
| Mechanical Life | ≥750 cycles |
| Certification | CE、UL、TUV |
Tailoring connectors to your unique needs.
Provide system-level solutions
Respond to needs within 12 hours
