𐄀 Technology Connection to Future

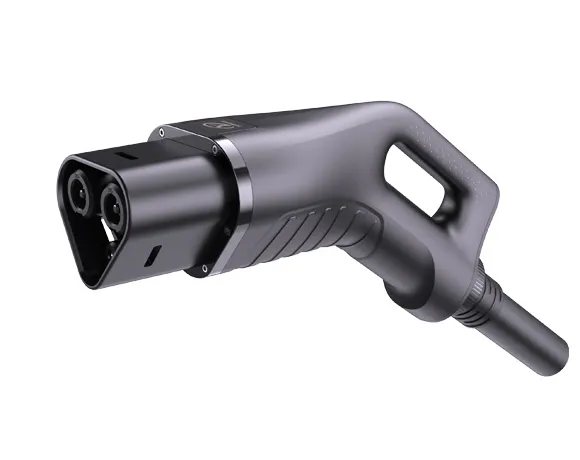

Applicable to the corresponding standard megawatt level charging station of worldwide. It needs to be connected to the suitable liquid cooling system.
High protection
High structural strength
Accurate temperature monitoring
Lightweight design
Ergonomic design
Aesthetic design of family style
| Specifications | ||
ltem | 1000A series | 1500A series |
Standard | IEC62196-1:2022 IEC62196-3:2022 IECDTS 63379 IEC62893-4-1:2024 IECTS62893-4-2:2021 | |
Rated voltage | 1500V DC | |
| Rated current | 1000A DC | 1500A DC |
Voltage resistance | 4000V AC(Power) , 500v AC(Single) | |
Insulation resistance | ≥500MΩ | |
Degree of protection | Before insertion: IP54; After insertion: IP55 Electrical part: : IP67(Except the interface with socket) | |
Cycles life | ≥10000 | |
lnsertion and withdrawal force | <100N | |
Ambient temperature | -30℃ ~+ 50℃ | |
Flame retardant rating | UL94V-0 | |
Coating material of power contacts | Ag | |
External cable diameter | Φ44±1.5mm | |
Minimum bending radius | 10D | |
Cooling circuit | Two inlet pipes and four outlet pipes | |
| Cooling medium | TF 8016(charging cooling fluid) | |
Tailoring connectors to your unique needs.
Provide system-level solutions
Respond to needs within 12 hours
