Application：Application fields such as energy storage cabinets and new energy vehicles.
Description：
High Voltage Interlock Loop
Lock mode：handle Secondary locking
Termination Methods：Screw termination

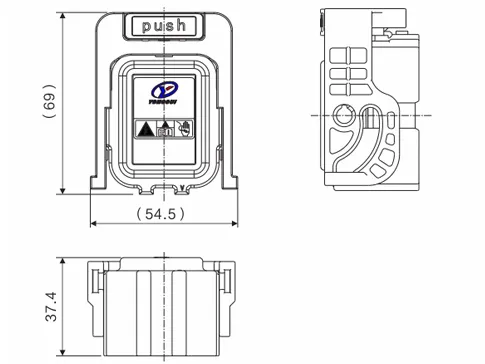

ESC-MSD Plug

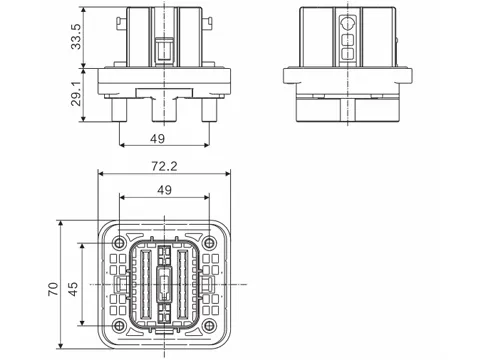

ESC-MSD Socket

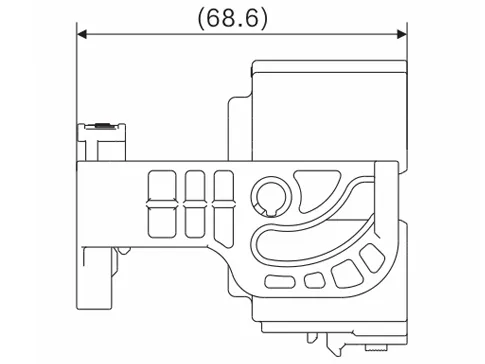

Handle Open View

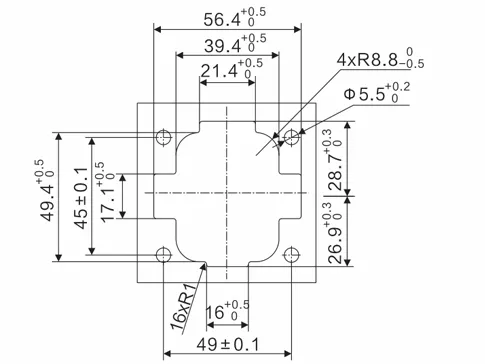

ESC-MSD Mounting Hole Dimensions
| Specifications | |
| Pins | 2 |
| Current Rating | 250A(2/0 AWG)、350A(4/0 AWG)、400A(250kcmil) |
| Voltage Rating | 1500V DC |
| Dielectric Withstanding Voltage | 6800V AC 50Hz |
| Insulation Resistance | ≥5000MΩ |
| Operating Temperature | -40℃ ~ +125℃ |
| Temperature rise | ≤45K |
| Protection Class | IP68(Mated) |
| Mechanical Life | ≥200 cycles |
| Certification | UL、TUV、CE |
