Application：This product is used for power and signal transmission of household energy storage system (battery pack).
Description：
Multi-functional modules are supported
Number of modules：4
Floating cooperate
Termination Methods：Crimp termination
ESC-M16B-(3C150+12C10) Plug (Pin)

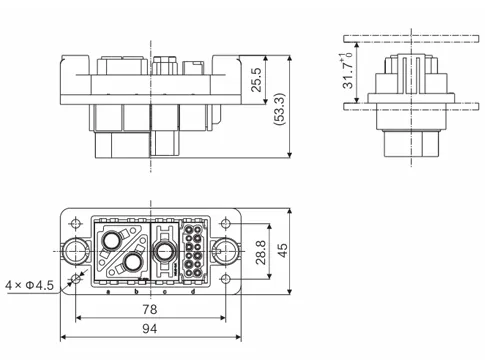

ESC-M16B-(3C150+12C10) Socket (Socket)
ESC-M16B-(3C150+12C10) Mounting Opening Dimensions
| Specifications | |
| Pins | 3+12 |
| Current Rating | 100A、150A(Power)、10A(Signal) |
| Voltage Rating | 1500V(Power)、250V(Signal) |
| Dielectric Withstanding Voltage | 6800V、2210V AC 50Hz |
| Insulation Resistance | ≥100MΩ |
| Temperature Range | -40℃ ~ +125℃ |
| Cable range | 6mm² ~ 35mm²(Power)0.14mm² ~ 2.5mm²(Signal) |
| Temperature rise | ≤45K |
| Floating tolerance | ±2mm |
| Mechanical Life | ≥500 cycles |
| Certification | UL、CE |
