𐄀 Technology Connection to Future
Application：Distribution Systems、E-Motor、Motor Controller
Description:
Cable range：70mm²
Plastic Shell

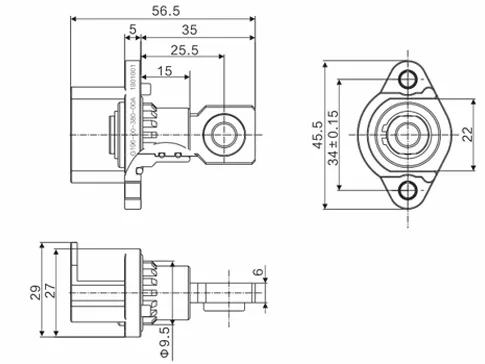

YG196-380A type Connector

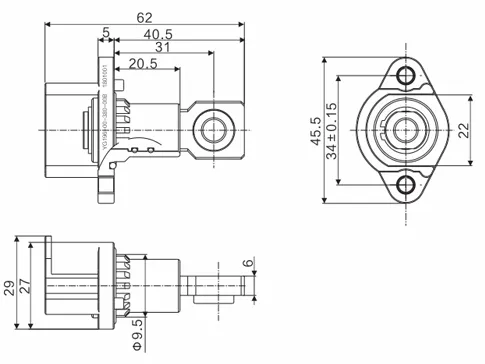

YG196-380B type Connector

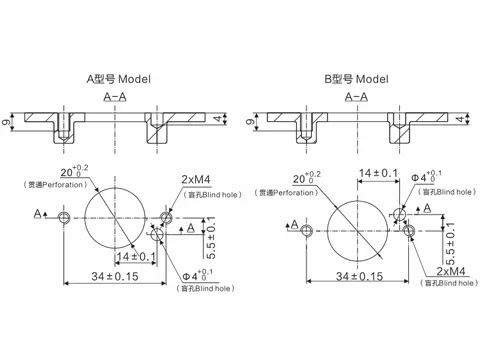

YG196-380 Mounting Hole Dimensions
| Rated Current | 250A(70mm²) |
| Rated Voltage | 800V |
| Dielectric Withstanding Voltage | 3800V AC |
| Insulation Resistance | ≥100MΩ |
| Temperature Range | -40℃ ~ +125℃ |
| Mechanical Life | 50 cycles |
Tailoring connectors to your unique needs.
Provide systemic solutions
Respond to needs within 12 hours
