Application：Distribution Systems 、E- Motor 、Motor Controller
Description：
Cable Range：35~70mm2
Poka-yoke
360 ° Shielding

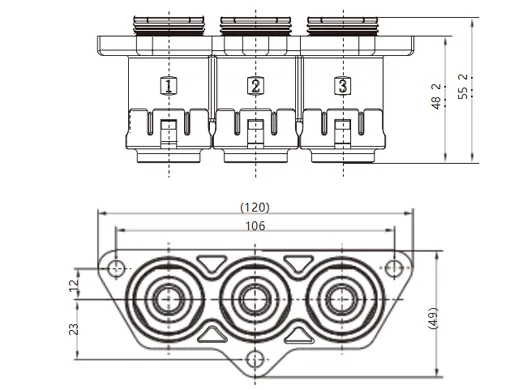

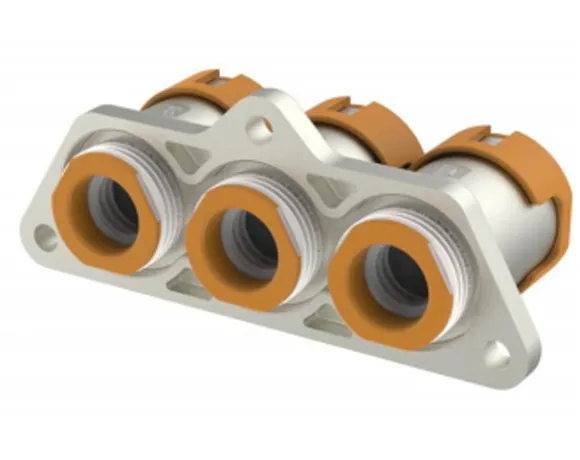

YGC196-436 3-Pin 180 ° Plug

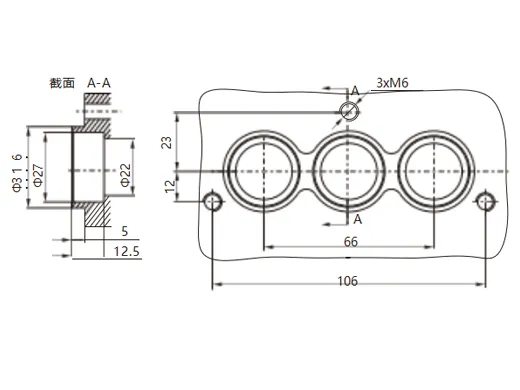

YGC196-436 3-Pin Mounting Interface Design
| Specifications | |
| Rated Current | |
| Power | 150A(30mm2) 200A(50mm2) 250A(70mm2) |
| Rated Voltage | |
| Power | 1000V |
| Dielectric Withstanding Voltage | |
| Power | 3000V AC 50HZ(normal) |
| Temperature Range | -40℃ ~ + 140℃ |
| IP Rating | IP67&IP6K9K |
