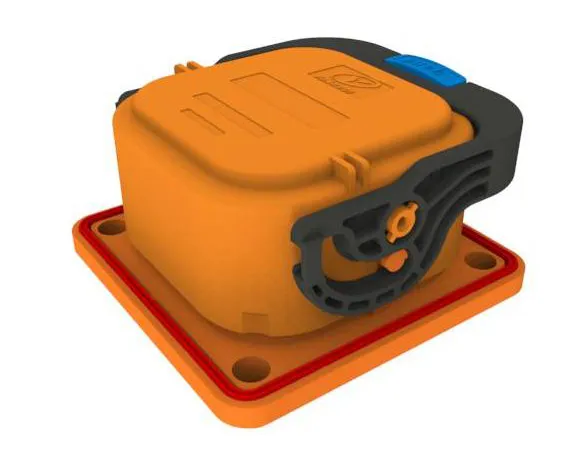

This product is developed and designed for hybrid and pure electric vehicles. It is primarily used for power electrical connections in high-voltage, high-current trunk lines, integrates a fuse into a single unit, and provides circuit short-circuit protection.
This product integrates the disconnection device and fuse into one unit, saving space and facilitating equipment maintenance and servicing.
This product incorporates an extraction-assist mechanism on the plug end to reduce extraction force and improve ease of operation.
The socket end adopts a dual-ring spring contact design, ensuring reliable connection and high current-carrying capacity.
It is applicable to relectrical connections such as those in electric vehicle battery packs.
Ordering information
Order information(assembly) / Fuse brand(Yourong) | ||||||

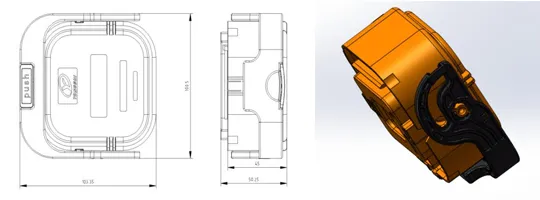

Product name | YGC1040-EV-P4P-CF125 plug | YGC1040-EV-P4P-CF160 plug | YGC1040-EV-P4P-CF200 plug | YGC1040-EV- P4P-CF250 plug | YGC1040-EV-P4P-CF315 plug | YGC1040-EV-P4P-CF350 plug |
Product code | 115010021212 | 115010021213 | 115010021214 | 115010021215 | 115010021216 | 111000402304 |
Product name | YGC1040-EV-P4P-CF400 plug | YGC1040-EV- P4P-CF450 plug | YGC1040-EV-P4P-CF500 plug | YGC1040-EV-P4P-CF550plug | YGC1040-EV-P4P-CF630 plug | YGC1040-EV-P4P plug(with shorting link) |
Product code | 115010021217 | 115010021218 | 115010021219 | 115010021219 | 115010021221 | 112010102638 |

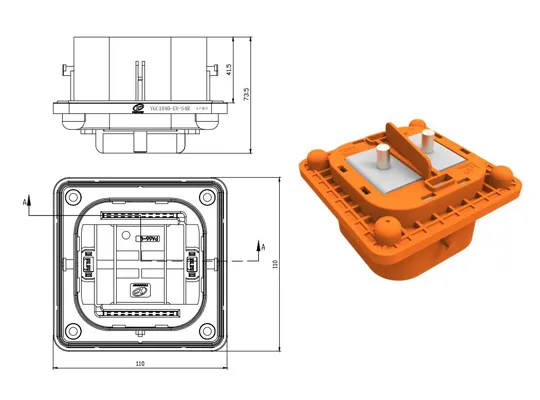

| Receptacle name | YGC1040-EV-S4R receptacle | / | / | / | / | / |
Receptacle No. | / | / | / | / | / | / |
Technical data
Basic information | |
Pin pitch | 34mm |
Numbers of pins | 2pin |
Material of shell | Plastic |
Electrical specification | |
Rated voltage | 750V DC(power), 24 V DC(signal) |
Rated current | 200A(50mm²) 、250A(70mm²) |
Insulation resistance | ≥5000MΩ(normal condition), ≥200MΩ(damp heat condition) |
Withstand voltage | 4000V(50Hz, AC normal condition) |
HVIL | Yes |
Mechanical specification | |
Life cycles | ≥ 100 times |
Vibration | LV214 S2、USCAR V2 |
Shock | LV214 S2、USCAR V2 |
Environmental resistance specification | |
Ambient temperature | -40℃ ~ +125℃ |
Humidity range | 95％(at 40℃) |
Salt spray | 96h |
IP rating | IP67&IP6K9K(After mating) |
Materials/Finish/Outline | |
Shell | PA66-GF |
Standards and certifications | |
Flame retardant rating | UL94 V-0(Plastic)、HB(Rubber) |
Environmental requirements | RoHS 2.0 |

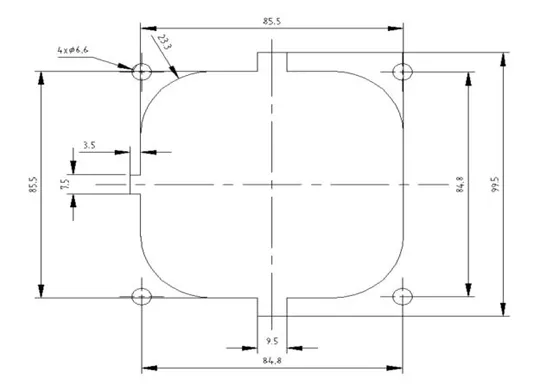

Installation
Installation | |
Stud | M8 (Recommended torque based on thread material: carbon steel is 6~7N.m, stainless steel is 5.5~6N.m) |
Storage
Storage & transportation | |
Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. |
Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. |
