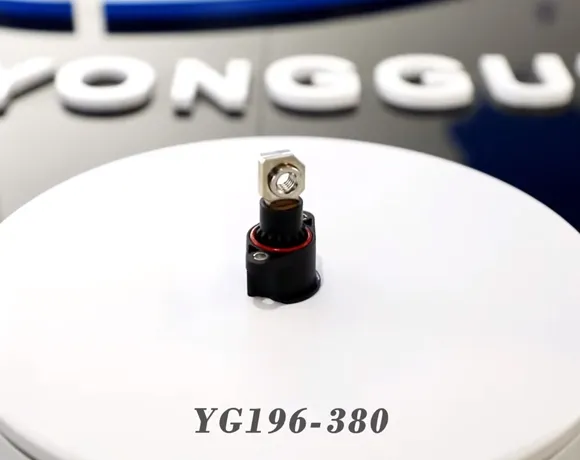

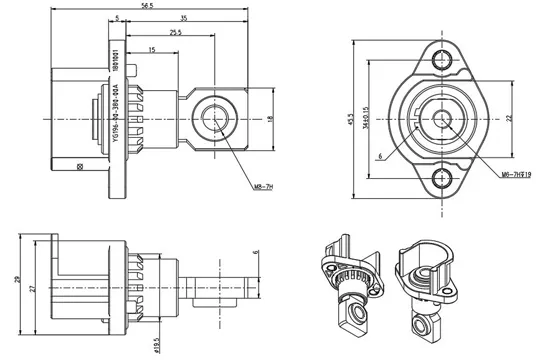

YG196-380A Connector Product size

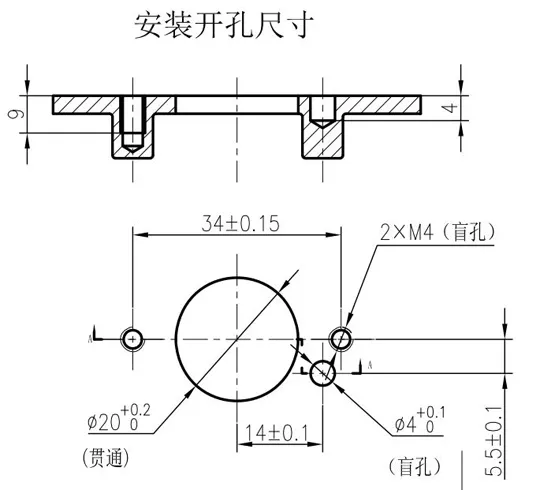

YG196-380A Connector mounting hole dimension
Ordering information
| Ordering Information | ||||||
| Product name | YG196-380A Connector | YG196-380 Assembled dust cover | ||||
| Product model | YG196-00-380-00A | / | ||||
| Product code | 113060300153 | 114069804479 | ||||
| Wiring specification | ≤70mm2 | / | ||||
| Remarks | / | Purchased separately | ||||
Technical data
| Basic information | ||||||
| Shell | Plastic | |||||
| Electrical specification | ||||||
| Rated voltage | 800V | |||||
| 额定电流/Rated current | 250A | |||||
| Insulation resistance | ≥5000MΩ(Normal), ≥200MΩ(Wet heat) | |||||
| Withstand voltage | 3500V AC 50Hz Normal | |||||
| Operating temperature | ||||||
| Ambient temperature | -40℃ ~ +125℃ | |||||
| Humidity range | ≤95％(Temperature 40±2℃) | |||||
| IP rating | IPX8(When installed inside the enclosure) | |||||
Installation instructions
| Installation instructions | ||||||
| Matching screw | Use M6 combination screws on the outside of the enclosure(quantity: 1, installation torque 10-11N.m) Use M8 combination screws in the enclosure(quantity: 1, installation torque 13-14N.m) Flange mounting screws: M4 combination screws(quantity: 2, mounting torque 3-4 N.m) | |||||
Store
| Packaging, Storage, and Shipping Instructions | ||||||
| Storage requirements | Contact parts (gold-plated, silver-plated) must be stored separately and kept neat, clean, and well-ventilated. The storage environment should be controlled at a humidity of ≤60% and a temperature of 5-30°C. Reference shelf life: 6 months | |||||
| Shipping requirements | During packaging, transportation, transshipment, production and assembly, terminals should be protected from collision, contact with corrosive gases and liquids, and direct hand contact to ensure that the terminal contact surface is in good condition. | |||||
