The YG1052 series connector is a high-performance product independently developed by our company with intellectual property ights. The product has a high-voltage interlocking function, primarily used for power connections in high-voltage,high-current main lines to achieve short-circuit protection.
This product combines the disconnect device and the fuse into one, which not only saves space but also facilitates equipment maintenance, overhaul, and quick replacement of fuses;
This product has a pull-out assist mechanism added to the plug end, making fuse replacement easier and more convenient;
It is applicable to battery systems and charging systems of new energy vehicles, etc.

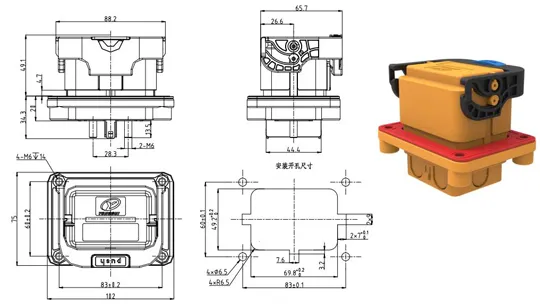

Dimensions of the receptacle rear-mounted (mounting plate thickness ≤4.5mm)

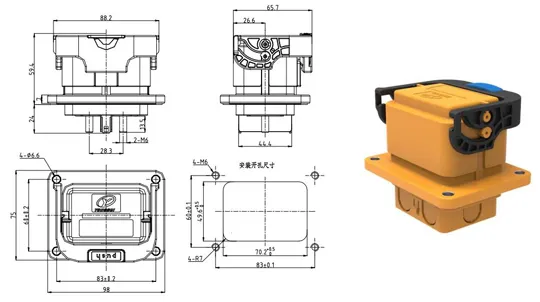

Receptacle front-mounted
Mounting hole fixing torque: 5.5Nm±0.5
Ordering information
Ordering information(assembly)/Fuse brand(Yourong) | ||||||
Product name | YGC1052-EV-P2P-CF125 Plug | YGC1052-EV-P2P-CF160 Plug | YGC1052-EV-P2P-CF200 Plug | YGC1052-EV-P2P-CF250 Plug | YGC1052-EV-P2P-CF315 Plug | YGC1052-EV-P2P-CF350 Plug |
Product code | 115010021402 | 115010021403 | 115010021404 | 115010021405 | 115010021406 | 115010021407 |
Product name | YGC1052-EV-P2P-CF400 Plug | YGC1052-EV-P2P Plug(with shorting link) | / | / | / | / |
| Product code | 112010102338 | 115010021401 | / | / | / | / |
| Fuse brand(Boyue) | ||||||
| Product name | YGC1052-EV-P2P-ASTM200 Plug | YGC1052-EV-P2P-ASTM250 Plug | YGC1052-EV-P2P-ASTM315 Plug | YGC1052-EV-P2P-ASTM350 Plug | YGC1052-EV-P2P-ASTM400 Plug | / |
| Product code | 115010021408 | 115010021409 | 112010102669 | 115010021410 | 115010021411 | / |
| Mating connector name | YGC1052-EV-S2RA Receptacle (front-mounted) | YGC1052-EV-S2RB Receptacle (rear-mounted) | / | / | / | / |
| Mating connector code | 112020102615 | 112020102606 | / | / | / | / |
Technical data
Basic in formation | |
Pin pitch | 34mm |
Numbers of pins | 2pin |
Electrical specification | |
Rated voltage | 750V DC(power), 24 V DC(signal) |
Rated current | 200A(50mm²) |
Insulation resistance | ≥3000MΩ(normal), ≥200MΩ(wet heat) |
Withstand voltage | 3000V(50Hz, AC normal) |
HVIL | Yes |
Mechanical specification | |
Life cycle | ≥50 times |
Environmental resistance specification | |
Ambient temperature | -40℃ ~ +125℃ |
Humidity range | 95％(at 40℃) |
Salt spray | 96h |
IP rating | IP67&IP6K9K(after mating) |
Materials/Coating/Outline | |
Shell | PA66-GF |
Standards and certifications | |
Flame retardant rating | UL94 V-0(plastic)、HB(rubber) |
Storage
Storage & transportation | |
Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. |
Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. |
