This product is developed and designed for hybrid and pure electric vehicles, primarily used for power connections in high-voltage, high- current main lines to achieve short-circuit protection.
This product integrates the disconnection device and fuse into one unit, saving space and facilitating equipment maintenance and servicing.
This product incorporates an extraction-assist mechanism on the plug end, making operation easier and more convenient.
This product employs a dual-ring spring contact pair on the socket end, offering reliable connection and high current-carrying capacity.
It is applied to battery systems and charging systems of new energy vehicles, etc.
Ordering information
Ordering information(assembly) | ||||||

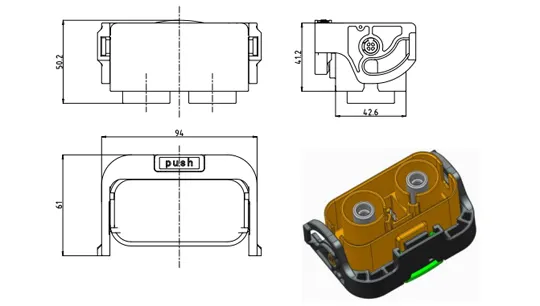

Product name | YGC1130-EV-P2P plug(with shorting link) | / | / | / | / | / |
Product code | 112010102685 | / | / | / | / | / |
| / | / | / | / | / | / | / |

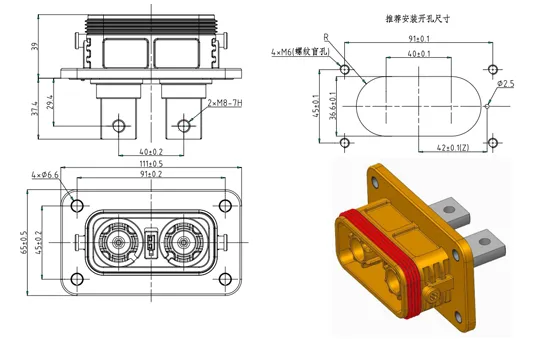

Receptacle name | YGC1130-EV-S2R receptacle | / | / | / | / | / |
Receptacle no. | 112020102916 | / | / | / | / | / |
Technical data
Basic information | |
Pin pitch | 40mm |
Numbers of pins | 2pin |
Material of shell | Plastic |
Electrical specification | |
Rated voltage | 1000V DC(power), 24 V DC(signal) |
Rated current | 400A |
Insulation resistance | ≥5000MΩ(normal condition), ≥200MΩ(damp heat condition) |
Withstand voltage | 3000V(50Hz, AC normal condition) |
HVIL | yes |
Mechanical specification | |
Life cycles | ≥50 times |
Environmental resistance specification | |
Ambient temperature | -40℃ ~ +125℃ |
Humidity range | 95％(at 40℃) |
Salt spray | 96h |
IP rating | IP67&IP6K9K(after mating) |
Materials/Finish/Outline | |
Shell | PA66-GF |
Standards and certifications | |
Flame retardant rating | UL94 V-0(plastic)、HB(rubber) |
Environmental requirements | RoHS 2.0 |
Storage
Storage & transportation | |
Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. |
Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. |
