The product can achieve 360-degree full shielding;
The product can realize secondary interlocking and unlocking;
The product has a delayed high voltage interlocking function;
The foolproof key positions at both ends adopt 4 different combinations to achieve the anti-mating function;
The plug and receptacle utilize a direct plug-in locking mechanism for connection.
Plugs and receptacles adopt terminal crimping.
Suitable for electrical connections in electric vehicle chargers, oil pump controllers, air pump controllers, high-voltage boxes, etc.
Ordering information
| Ordering information | ||||||||||||
| Key position | Ⅰ | |||||||||||

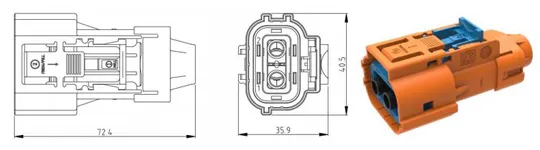

| Product name | YGC1139-EV-S2P plug | |||||||||||
| Product code | 112010102900 | |||||||||||

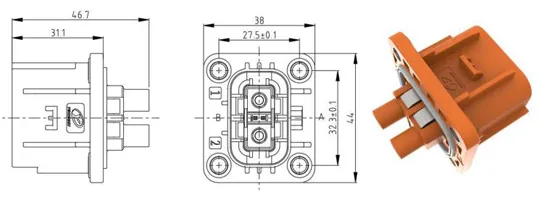

| Receptacle name | YGC1139-EV-P2R receptacle | |||||||||||
| Receptacle code | 112020103138 | |||||||||||
| Note: Terminals need to be purchased separately. Refer to the Contacts Ordering Information table below for details. | ||||||||||||
| Ordering information(assembly) | Ordering information (parts details, can be purchased separately) | |||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||||
| YGC1139-EV-S2P plug | 112010102900 | YGC1139-EV-S2P plug assembly | / | 1 | / |  | ||||||
| YG1139 shielding gasket | 114030900457 | 1 | 2 ×6mm², 2-core shielded cabled wires (LV216) Φ12.8 (0/-0.6) |  | ||||||||
| YG1139 shielding ferrule | 114022500354 | 1 |  | |||||||||
| YG1139 baffle | 114060102066 | 1 |  | |||||||||
| YG1139 cable seal | 114050501226 | 1 |  | |||||||||
| YG1139 tail clamp | 114060102067 | 1 |  | |||||||||
| YGC1139-EV-P2R receptacle | 112020103138 | YGC1139-EV-P2R receptacle | 112020103138 | 1 | / |  | ||||||
| Order information(Contacts, need to be purchased separately) | ||||||||||||
| Plug & Receptacle | Plug | Receptacle | ||||||||||
| Product name | YG1081socket Φ3-6mm²-silver | YG1139pin assemblyΦ3-6mm² - silver | YG939signal socket | |||||||||
| Product code | 113020601309 | 113020101034 | 501021600128 | |||||||||
| Wiring specification | 2 ×6mm² (2-pin shielded cabled wires, (LV216) Φ 12.8(0/-0.6)mm | 6mm² Φ4.9 ±0.2mm | 0.5mm² Φ1.5 ±0.2mm | |||||||||
| Diagram(for reference) |  |  |  | |||||||||
Technical data
| Basic in formation | ||||||||||||
| PIN pitch | 12.1mm | |||||||||||
| Numbers of pins | 2pin | |||||||||||
| Cable outlet direction | 180° | |||||||||||
| Shell material | Plastic | |||||||||||
| Shielding function | Yes | |||||||||||
| Electrical specification | ||||||||||||
| Rated voltage | 800 V DC(power), 24 V DC(signal) | |||||||||||
| Rated current | 40A(6mm²) | |||||||||||
| Insulation resistance | ≥ 100MΩ | |||||||||||
| Withstand voltage | 3000 V AC(power), 1000 V AC(signal) | |||||||||||
| HVIL | Yes | |||||||||||
| Mechanical specification | ||||||||||||
| Life cycle | ≥50 Times | |||||||||||
| Vibration | GB/T28046.3-2011 Clause 4.2.2 | |||||||||||
| Shock | GB/T28046.3-2011 Clause 4.2.2 | |||||||||||
| Environmental resistance specification | ||||||||||||
| Ambient temperature | -40℃ ~ +125℃ | |||||||||||
| Humidity range | 95％(at 40℃) | |||||||||||
| Salt spray | 48h | |||||||||||
| IP rating | IP67, IP6K9K(When plug and receptacle mated) | |||||||||||
| Pollution level | 2 | |||||||||||
| Altitude | ≤5000m | |||||||||||
| Materials/Finish/Outline | ||||||||||||
| Shell | PA66-GF | |||||||||||
| Shielding | Copper alloy | |||||||||||
| Standards and certifications | ||||||||||||
| Flame retardant rating | UL94 V-0(plastic)、HB(rubbere) | |||||||||||
| Environment requirements | RoHS 2.0 | |||||||||||

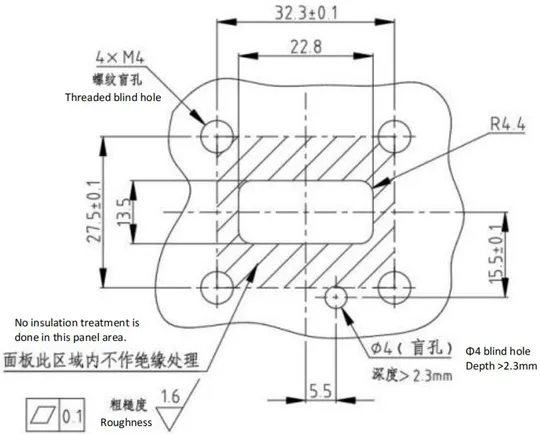

Installation
| Special tools | ||||||||||||
| Disassembly tool | Power socket disassembly tool(RTSCA-05 disassembly tool) Power pin disassembly tool(RTSCA-05 disassembly tool) Signal pin disassembly tool(GZ939-02-03-00 disassembly tool) | |||||||||||
Storage
| Storage& transportation | ||||||||||||
| Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. | |||||||||||
| Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. | |||||||||||
