𐄀 Technology Connection to Future
Application：Signal System
Description：
Secondary Lock Function
Cable Range: 0.5~1.5mm²
Poka-yoke
32 Core Connector

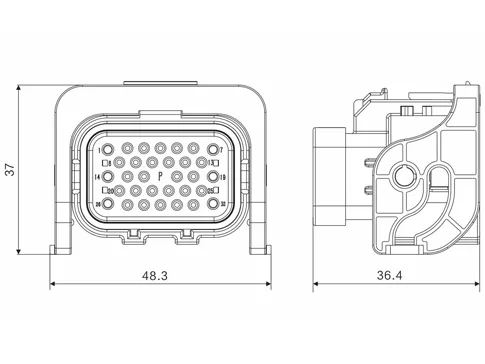

YGC1024-EV-S32P Plug

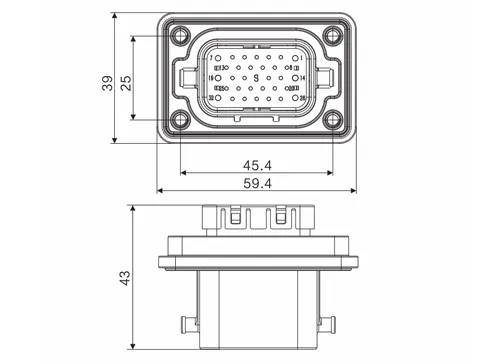

YGC1024-EV-P32R Socket
YGC1024 32-Core Mounting Hole Dimensions
| Specifications | |
| Rated Current | Signal 2A(0.5/0.75mm²)、5A(1mm²)、10A(1.5mm²) |
| Rated Voltage | 24V |
| Dielectric Withstanding Voltage | 1000V AC 50Hz |
| Temperature Range | -40℃ ~ +125℃ |
| IPRating | IP67&IP6K9K、IPXXB |
Tailoring connectors to your unique needs.
Provide systemic solutions
Respond to needs within 12 hours
