The product can achieve 360-degree full shielding;
Screw locking is adopted, and the locking method is reliable.
The terminal transition of this product is bolt connection, and the wiring method is crimping.

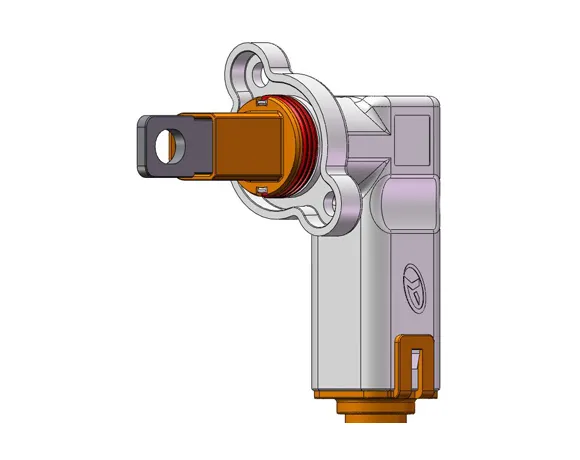

The YG1492 Series Connector is independently developed by our company and holds intellectual property rights. The product features 360° omnidirectional shielding and uses crimping termination. It is suitable for applications such as batteries, electric control systems, and charging.
Ordering information
Ordering information | |
Product name | YGC1492-EV-P1P-200 plug housing assembly |
Product code | 113010101059 |
Ordering Information(Purchased separately) | |||
Product name | Product code | Wiring specification | Diagram (for reference) |
YG1492 connection terminal | 114020101257 | Shielded wire 50mm²(LV216) φ15.5±0.3mm |
|
YG1492-50 Wiring terminal | 114020101258 |
| |
YG196-459 Shield crimping sleeve - 50 | 114022600327 |
| |
YG196-459 Shield crimping ring - 50 | 114022600329 |
| |
YG1492-1 cable seal | 114050201148 |
| |
φ16.5rear cover(orange) | 114069805345 |
| |
M5×14 combination screw | 114039804397 |
| |
Technical data
| Basic information | ||
Numbers of pins | 1 | |
Cable outlet direction | 90° | |
| Termination method(optional) | ||
Termination method | Crimping | |
| Wiring specifications | LV216 | |
Compatible cable | Shielded wire 50mm²(φ15.2-15.8mm) | |
Electrical specification | ||
Rated voltage | 1000V | |
Rated current | 200A(Max) | |
Insulation resistance | ≥200MΩ | |
Withstand voltage | 3000V(50Hz AC normal state) | |
Contact resistance | ≤0.36mΩ | |
Shielded connection resistor | R1≤3mΩ | |
Mechanical specification | ||
Life cycle | ≥50 times | |
Vibration | V2(QC/T1067.1) | |
Shock | V2(QC/T1067.1) | |
Environmental resistance specification | ||
Ambient temperature | -40℃～+125℃ | |
Humidity range | 95％(at 40℃) | |
Salt spray | 480h | |
IP rating | IP67&IP6K9K | |
Altitude | ≤4000m | |
Materials/Finish/Outline | ||
Shell | ADC12(natural color) | |
Insulator | PA66 640PG5C0R2(Orange) | |
Contacts | Copper alloy (silver-plated) | |
Standards and certifications | ||
Flame retardant rating | UL94-V0(plastic), HB(rubber) | |
Environment requirements | ROSH2.0 | |
Implementation Standards | QJGAC 1230.093 、QC/T1067.1 | |
Installation
Special tools | |
Disassembly tool | / |
Pin feeding tool | / |
Crimping tool | / |
Other tool | / |

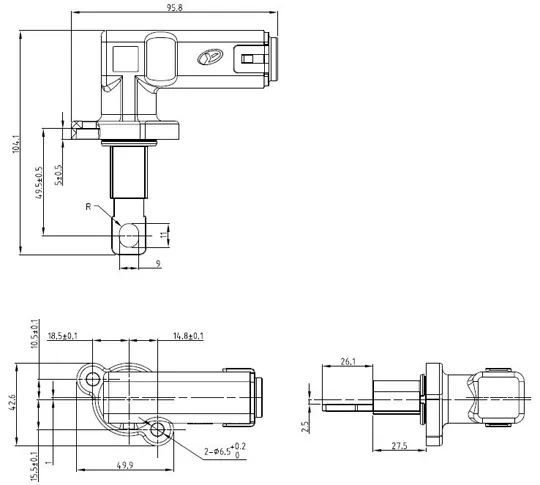

Installation diagram(optional) | |
|  |
Packaging/Transportation/Storage (Optional)
Packaging and storage instructions | |
Packaging | Customized according to customer requirements |
Storage requirement | Customized according to customer requirements |
Transportation requirement | Customized according to customer requirements |
