Application：Signal System
Description：
Helical Structure
Cable Range：0.5 ~ 1.5mm²
Poka-yoke

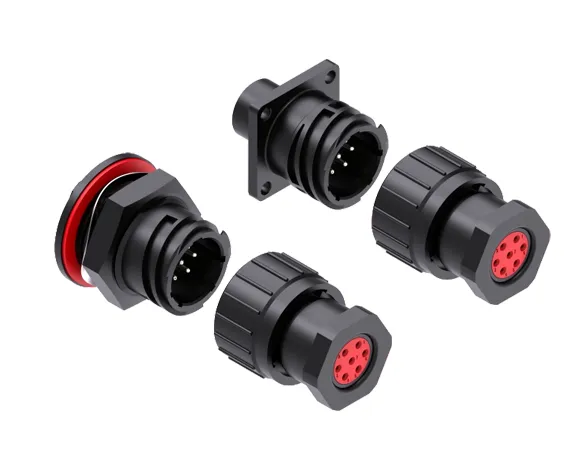

7 Core Connector

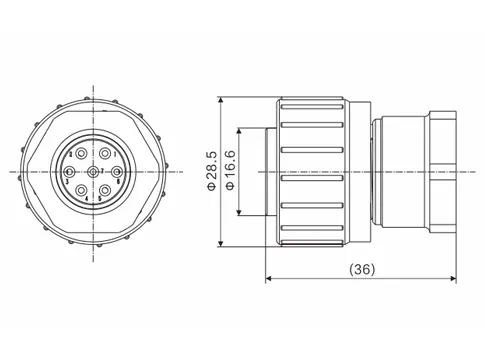

YGC909-EV-S7P Plug

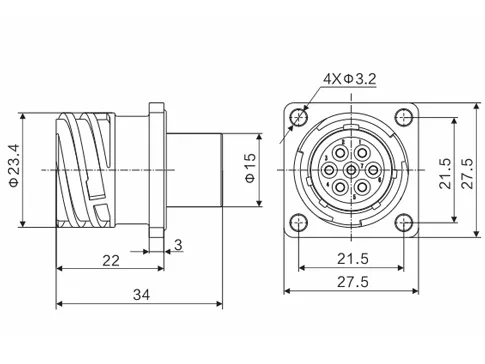

YGC909-EV-P7R Socket

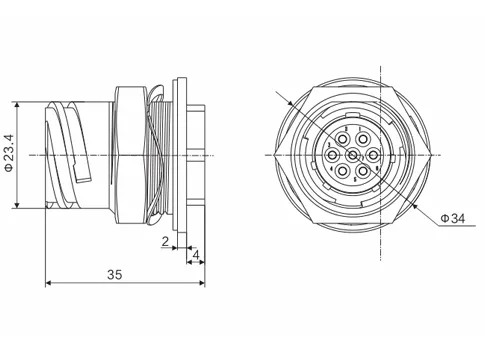

YGC909-EV-P7RA Socket
YGC909 7-Core Mounting Hole Dimensions
| Specifications | |
| Rated Current | Signal 2A(0.5/0.75mm²)、5A(1mm²)、10A(1.5mm²) |
| Rated Voltage | 24V |
| Dielectric Withstanding Voltage | 1000V AC 50Hz |
| Temperature Range | -40℃ ~ +125℃ |
| IPRating | IP67&IP6K9K、IPXXB |
