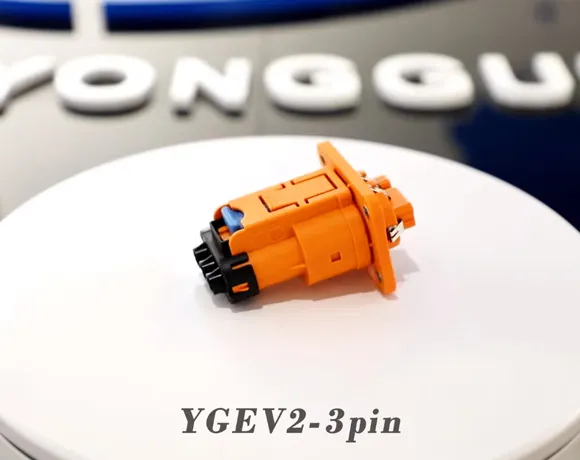

The product can achieve 360-degree full shielding;
The product can realize secondary interlocking and unlocking;
The product has a delayed high voltage interlocking function;
The key positions at both ends adopt 4 different combinations to realize the function of preventing wrong insertion;
The plug and receptacle utilize a direct plug-in locking mechanism for connection.
The plug and receptacle adopt terminal crimping.

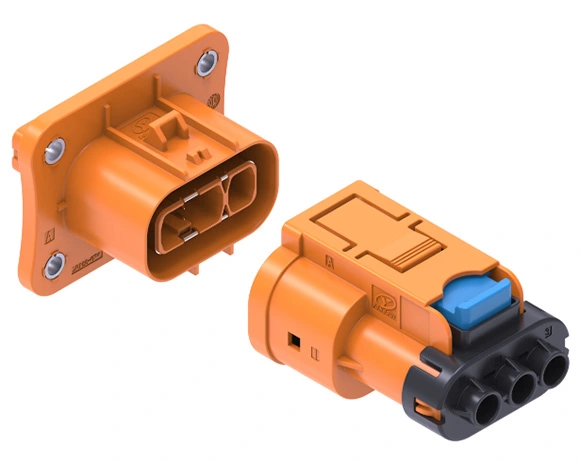

Suitable for electrical connections of electric vehicle components such as air conditioning compressors, PTC heaters, chargers, DC/DC converters, and high-voltage boxes.

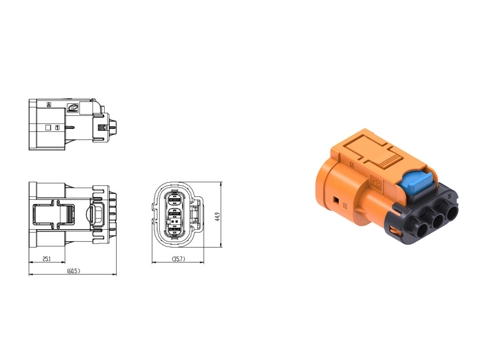

YGEV2-S3P series plug assembly outline (unspecified tolerance: ±0.5)

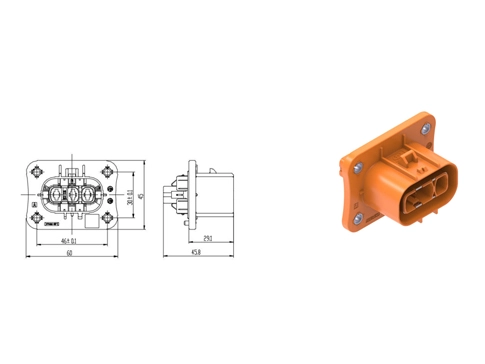

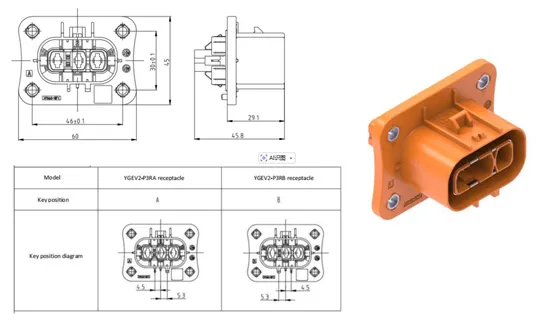

YGEV2-P3R series socket assembly outline (unspecified tolerance: ±0.5)

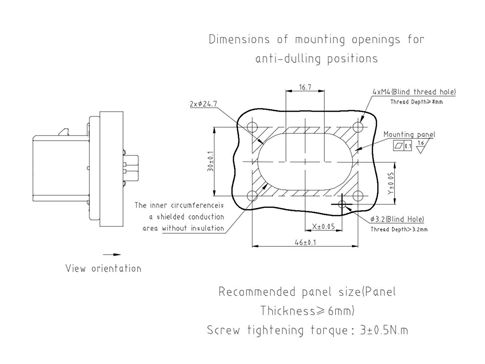

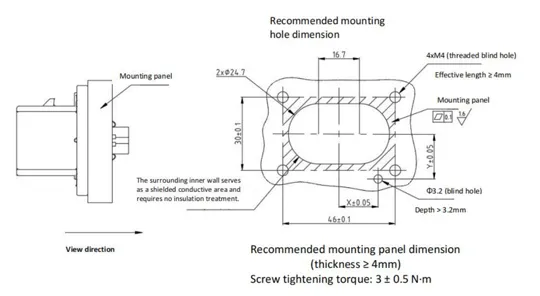

YGEV2-P3R series socket mounting hole dimensions (unspecified tolerance: ±0.1)
Ordering information
| Ordering information(assembly) | ||||||||||||||||||||
| Key position | A | B | A | B | A | B | ||||||||||||||
| Product name | YGEV2-S3PA plug(2.5mm²) | YGEV2-S3PB plug(2.5mm²) | YGEV2-S3PA plug(4mm²) | YGEV2-S3PB plug(4mm²) | YGEV2-S3PA plug(6mm²) | YGEV2-S3PB plug(6mm²) | ||||||||||||||
| Product code | 111000405923 | 111000405926 | 111000405924 | 111000405927 | 111000405925 | 111000405928 | ||||||||||||||
| Receptacle name | YGEV2-P3RA receptacle(2.5mm²) | YGEV2-P3RB receptacle(2.5mm²) | YGEV2-P3RA receptacle(4-6mm²) | YGEV2-P3RB receptacle(4-6mm²) | YGEV2-P3RA receptacle(4-6mm²) | YGEV2-P3RB receptacle(4-6mm²) | ||||||||||||||
| Receptacle code | 111000502908 | 111000502910 | 111000504256 | 111000502911 | 111000504256 | 111000502911 | ||||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | |||||||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||||||||||||

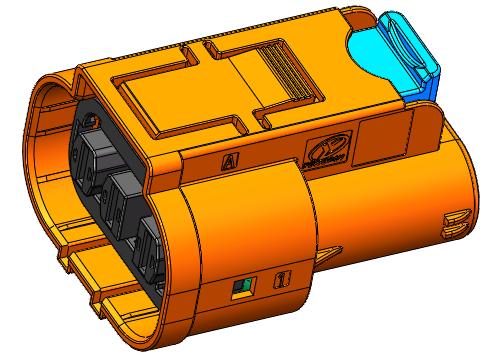

| YGEV2-S3PA plug(2.5mm²) | 111000405923 | YGEV2-S3PA plug assembly | 112010105975 | 1 | / |  | ||||||||||||||
| Φ4.9 rear cover assembly(black) - 3 | 113990001598 | 1 | 2.5mm²(LV216) Φ4.7(0, -0.5)mm |  | ||||||||||||||||

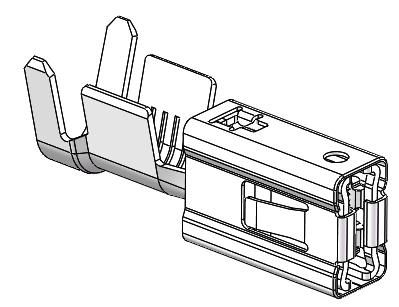

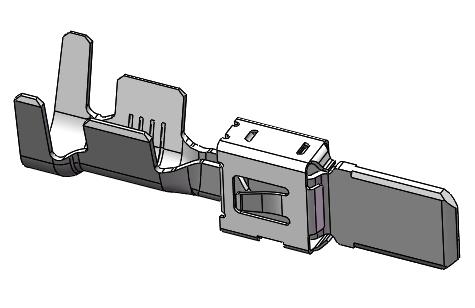

| 5.8 ×0.8 socket(2.5mm²) | 110010400999 | 3 |  | |||||||||||||||||

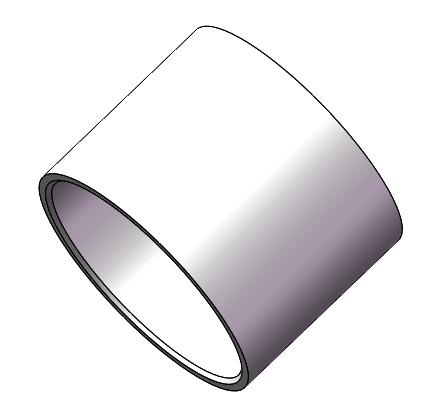

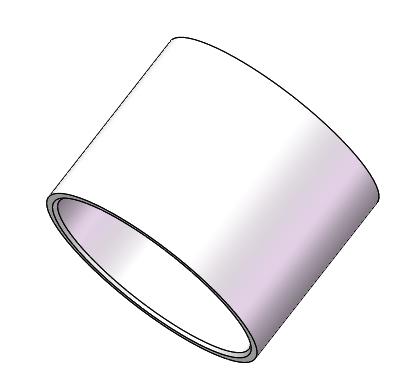

| YG1467 shielding - outer - 4 | 114022500495 | 3 |  | |||||||||||||||||

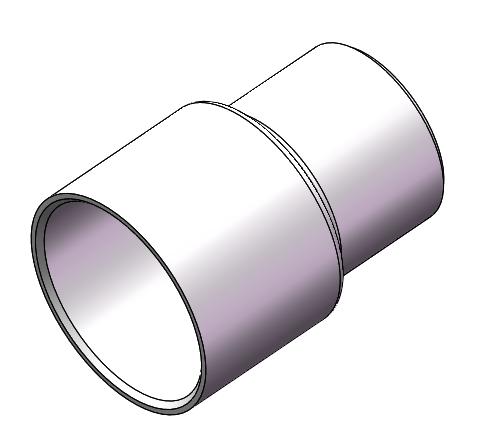

| YGEV2 shielding - inner - 2.5 | 114022500523 | 3 |  | |||||||||||||||||
| YGEV2-S3PB plug(2.5mm²) | 111000405926 | YGEV2-S3PB plug assembly | 112010105976 | 1 | / |  | ||||||||||||||
| Φ4.9 rear cover assembly(black) - 3 | 113990001598 | 1 | 2.5mm²(LV216) Φ4.7(0, -0.5)mm |  | ||||||||||||||||
| 5.8 ×0.8 socket(2.5mm²) | 110010400999 | 3 |  | |||||||||||||||||
| YG1467 shielding - outer - 4 | 114022500495 | 3 |  | |||||||||||||||||
| YGEV2 shielding - inner - 2.5 | 114022500523 | 3 |  | |||||||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | |||||||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagra m(for reference) | ||||||||||||||||
| YGEV2-S3PA plug(4mm²) | 111000405924 | YGEV2-S3PA plug assembly | 112010105975 | 1 | / | | ||||||||||||||
| Φ6 rear cover assembly(black) - 3 | 113990001597 | 1 | 4mm²(LV216) Φ5.8(0, -0.5)mm |  | ||||||||||||||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 3 | | |||||||||||||||||
| YG1467 shielding - outer - 4 | 114022500495 | 3 | | |||||||||||||||||

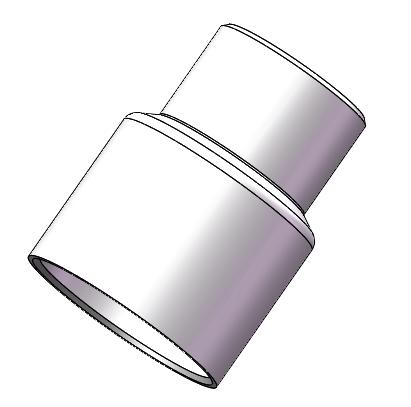

| YG1467 shielding - inner - 4 | 114022500492 | 3 | | |||||||||||||||||
YGEV2-S3PB plug(4mm²) | 111000405927 | YGEV2-S3PB plug assembly | 112010105976 | 1 | / | | ||||||||||||||
| Φ6 rear cover assembly(black) - 3 | 113990001597 | 1 | 4mm²(LV216) Φ5.8(0, -0.5)mm |  | ||||||||||||||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 3 | | |||||||||||||||||
| YG1467 shielding - outer - 4 | 114022500495 | 3 | | |||||||||||||||||
| YG1467 shielding - inner - 4 | 114022500492 | 3 | | |||||||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | ||||||||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | |||||||||||||||||
| YGEV2-S3PA plug(6mm²) | 111000405925 | YGEV2-S3PAplug assembly | 112010105975 | 1 | / | | |||||||||||||||

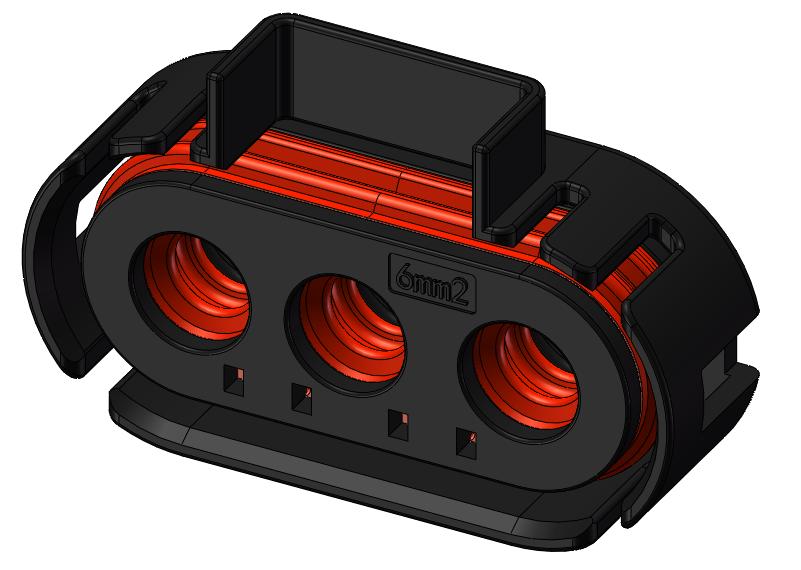

| Φ6.7 rear cover assembly(black) - 3 | 113990001596 | 1 | 6mm²(LV216) Φ6.5(0, -0.5)mm |  | |||||||||||||||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 3 | | ||||||||||||||||||
| YG1467 shielding - outer - 6 | 114022500496 | 3 | | ||||||||||||||||||
| YG1467 shielding - inner - 6 | 114022500494 | 3 | | ||||||||||||||||||
| YGEV2-S3PB plug(6mm²) | 111000405928 | YGEV2-S3PB plug assembly | 112010105976 | 1 | / | | |||||||||||||||
| Φ6.7 rear cover assembly(black) - 3 | 113990001596 | 1 | 6mm²(LV216) Φ6.5(0, -0.5)mm |  | |||||||||||||||||
| 5.8 ×0.8 socket(4~6mm²) | 501021401790 | 3 | | ||||||||||||||||||
| YG1467 shielding - outer - 6 | 114022500496 | 3 | | ||||||||||||||||||
| YG1467 shielding - inner - 6 | 114022500494 | 3 | | ||||||||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | ||||||||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | |||||||||||||||||

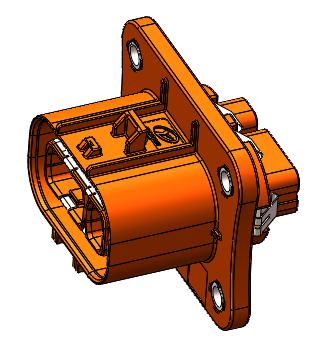

| YGEV2-P3RA receptacle(2.5mm²) | 111000502908 | YGEV2-P3RA receptacle assembly | 112020106779 | 1 | / |  | |||||||||||||||
| 5.8 ×0.8 pins(2.5mm²) | 113020101581 | 3 | Φ3.5 ± 0.2mm(2.5mm²) |  | |||||||||||||||||
| YGEV2-Φ3.2 cable sheath | 114059801037 | 3 | Φ3.5 ± 0.2mm(2.5mm²) |  | |||||||||||||||||

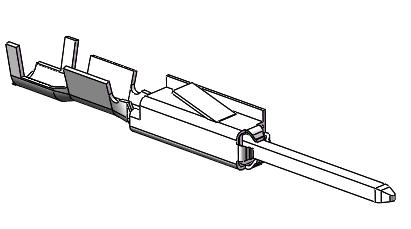

| 0.63 ×0.63 pins | 110010401011 | 2 | Φ1.3 ± 0.1mm(0.35mm²) |  | |||||||||||||||||
| YGEV2-P3RB receptacle(2.5mm²) | 111000502910 | YGEV2-P3RB receptacle assembly | 112020106780 | 1 | / |  | |||||||||||||||
| 5.8 ×0.8 pins(2.5mm²) | 113020101581 | 3 | Φ3.5 ± 0.2mm(2.5mm²) |  | |||||||||||||||||
| YGEV2-Φ3.2 cable sheath | 114059801037 | 3 | Φ3.5 ± 0.2mm(2.5mm²) |  | |||||||||||||||||
| 0.63 ×0.63 pins | 110010401011 | 2 | Φ1.3 ± 0.1mm(0.35mm²) |  | |||||||||||||||||
| YGEV2-P3RA receptacle(4-6mm²) | 111000504256 | YGEV2-P3RA receptacle assembly | 112020106779 | 1 | / | | |||||||||||||||
| 5.8 ×0.8 pins(4~6mm²) | 113020101520 | 3 | Φ4.5 ± 0.2mm(4mm²) Φ4.9 ± 0.2mm(6mm²) | | |||||||||||||||||
| 0.63 ×0.63 pins | 110010401011 | 2 | Φ1.3 ± 0.1mm(0.35mm²) | | |||||||||||||||||
| YGEV2-P3RB receptacle(4-6mm²) | 111000502911 | YGEV2-P3RB receptacle assembly | 112020106780 | 1 | / | | |||||||||||||||
| 5.8 ×0.8 pins(4~6mm²) | 113020101520 | 3 | Φ4.5 ± 0.2mm(4mm²) Φ4.9 ± 0.2mm(6mm²) | | |||||||||||||||||
| 0.63 ×0.63 pins | 110010401011 | 2 | Φ1.3 ± 0.1mm(0.35mm²) | | |||||||||||||||||
Technical data
| Rated current | 20A(2.5mm²)、32A(4mm²)、40A(6mm²) | |||||||||||||||||||
| Insulation resistance | ≥ 100MΩ | |||||||||||||||||||
| Withstand voltage | 3000 V AC(power), 1000 V AC(signal) | |||||||||||||||||||
| HVIL | yes | |||||||||||||||||||
| Mechanical properties | ||||||||||||||||||||
| Life cycles | ≥50 times | |||||||||||||||||||
| Vibration | USCAR-2 V2, LV214 S2 | |||||||||||||||||||
| Shock | USCAR-2 V2, LV214 S2 | |||||||||||||||||||
| Environmental resistance properties | ||||||||||||||||||||
| Ambient temperature | -40℃ ~ +125℃ | |||||||||||||||||||
| Humidity range | 95％(at 40℃) | |||||||||||||||||||
| Salt spray | 720h | |||||||||||||||||||
| IP rating | IP68(1m water depth, 48h), IP6K9K(plug-receptacle mated) | |||||||||||||||||||
| Pollution level | 2 | |||||||||||||||||||
| Altitude requirements | ≤5000m | |||||||||||||||||||
| Materials/Finish/Outline | ||||||||||||||||||||
| Shell | PA66-GF | |||||||||||||||||||
| Shielding | copper alloy | |||||||||||||||||||
| Standards and certifications | ||||||||||||||||||||
| Flame retardant rating | UL94 V-0(plastic)、HB(rubber) | |||||||||||||||||||
| Environmental requirements | RoHS 2.0 | |||||||||||||||||||
Installation
| Special tools | ||||||||||||||||||||
| Disassembly tool | Power pin disassembly tool(532031201008) Power socket disassembly tool(532031201010) Signal pin disassembly tool(532031201009) | |||||||||||||||||||
Storage & transportation
| Storage& transportation | ||||||||||||||||||||
| Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. | |||||||||||||||||||
| Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. | |||||||||||||||||||
