The product can achieve 360-degree full shielding;
The product can realize secondary interlocking and unlocking;
The product has a delayed high voltage interlocking function;
The key positions at both ends adopt 4 different combinations to realize the function of preventing wrong insertion;
The receptacle adopts Yonggui's independently developed high-power terminal, which has the advantages of large number of contact points and strong current carrying capacity;

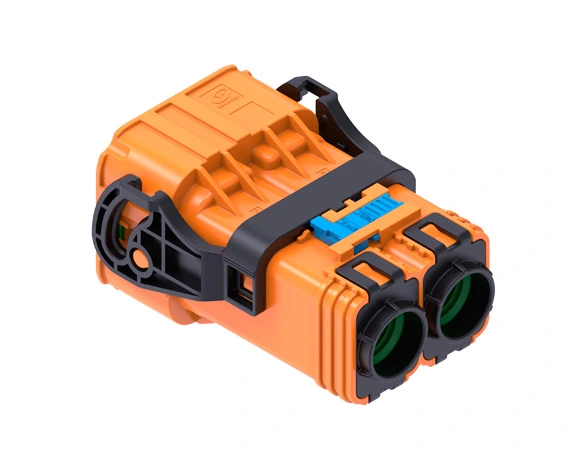

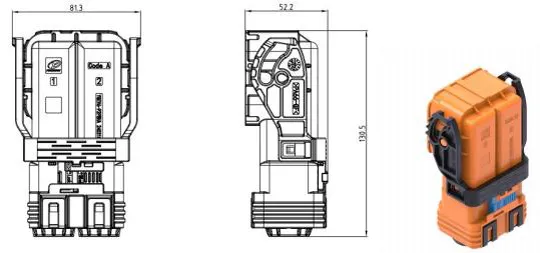

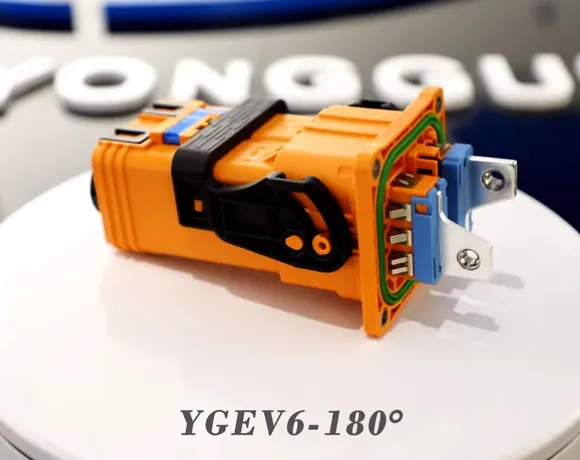

Plugs are available in straight and angled styles.

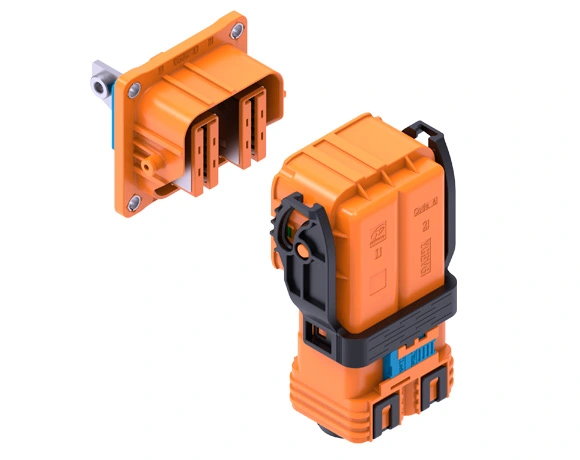

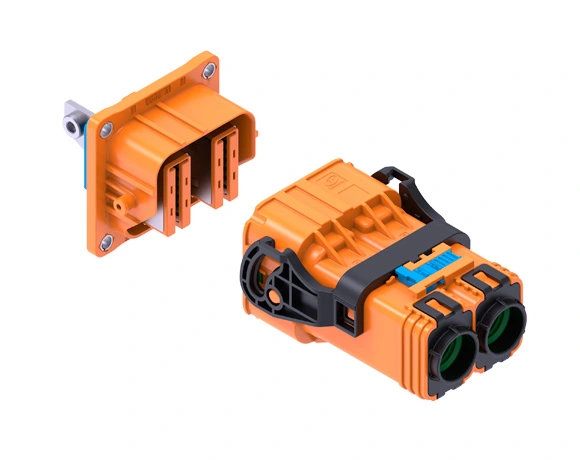

Suitable for high voltage electrical connections such as battery packs, MCUs, high voltage boxes, etc. in electric vehicles.
Ordering information
| Ordering information | ||||||||||||||
| Key position | A | A | B | B | ||||||||||
| Product name | YGEV6-P2PWHA plug(95mm²) | YGEV6-P2PHAplug(95mm²) | YGEV6-P2PWHB plug(95mm²) | YGEV6-P2PHB plug(95mm²) | ||||||||||
| Product code | 111000405971 | 111000405973 | 111000407174 | 111000407175 | ||||||||||

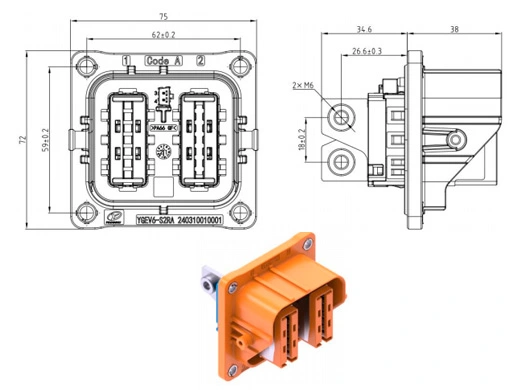

| Receptacle name | YGEV6-S2RA receptacle | YGEV6-S2RA receptacle | YGEV6-S2RB receptacle | YGEV6-S2RB receptacle | ||||||||||
| Receptacle code | 111000502953 | 111000502953 | 111000503872 | 111000503872 | ||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | ||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | |||||||||||

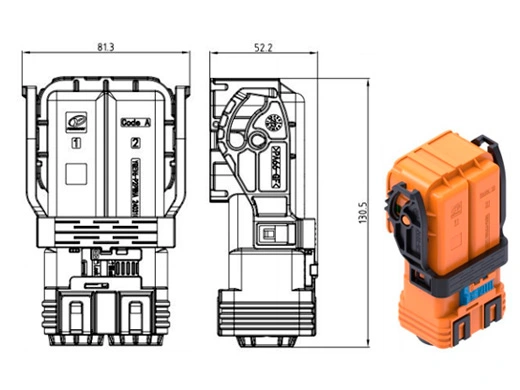

| YGEV6-P2PWHA plug(95mm²) | 111000405971 | YGEV6-P2PWHA plug assembly | 112010106158 | 1 | / |  | |||||||||
| 24×3.5NAS001-095SW pin terminal | 114020503252 | 2 | 95mm²(LV216) Φ20.5 ± 0.4mm |  | |||||||||||
| YGEV6 shielding - inner - 95 | 114022600480 | 2 |  | ||||||||||||
| YGEV6-P2PWHA shielding - external - 95 | 114022600475 | 2 |  | ||||||||||||
| Φ21.5 ×2 washer | 114060103683 | 2 |  | ||||||||||||
| Cable clamp assembly R10.75(YGEV6) | 113069800639 | 2 |  | ||||||||||||
| Φ21.5 rear cover | 114060103685 | 2 |  | ||||||||||||

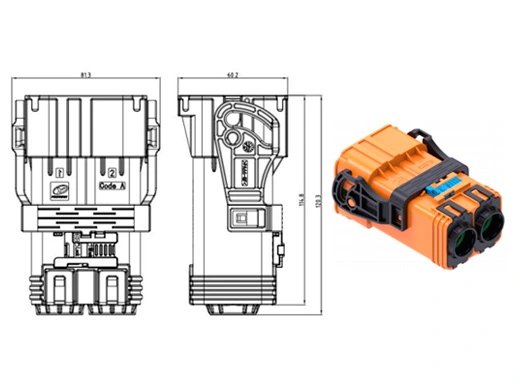

| YGEV6-P2PHA plug(95mm²) | 111000405973 | YGEV6-P2PHA plug assembly | 112010106159 | 1 | / |  | |||||||||
| 33×3.5NAS001-095SW pin terminal | 114020503298 | 2 | 95mm²(LV216) Φ20.5 ± 0.4mm |  | |||||||||||
| YGEV6 shielding - inner - 95 | 114022600480 | 2 |  | ||||||||||||
| YGEV6-P2PWHA shielding - external - 95 | 114022600475 | 2 |  | ||||||||||||
| Φ21.5 ×2 washer | 114060103683 | 2 |  | ||||||||||||
| Cable clamp assembly R10.75(YGEV6) | 113069800639 | 2 |  | ||||||||||||
| Φ21.5 rear cover | 114060103685 | 2 |  | ||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | ||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | |||||||||||
| YGEV6-P2PWHB plug(95mm²) | 111000407174 | YGEV6-P2PWHB plug assembly | 112010107340 | 1 | / |  | |||||||||
| 24×3.5NAS001-095SW pin terminal | 114020503252 | 2 | 95mm²(LV216) Φ20.5 ± 0.4mm |  | |||||||||||
| YGEV6 shielding - inner - 95 | 114022600480 | 2 | | ||||||||||||
| YGEV6-P2PWHA shielding - external - 95 | 114022600475 | 2 | | ||||||||||||
| Φ21.5 ×2 washer | 114060103683 | 2 | | ||||||||||||
| Cable clamp assembly R10.75(YGEV6) | 113069800639 | 2 | | ||||||||||||
| Φ21.5 rear cover | 114060103685 | 2 | | ||||||||||||
| YGEV6-P2PHB plug(95mm²) | 111000407175 | YGEV6-P2PHB plug assembly | 112010107341 | 1 | / |  | |||||||||
| 33×3.5NAS001-095SW pin terminal | 114020503298 | 2 | 95mm²(LV216) Φ20.5 ± 0.4mm |  | |||||||||||
| YGEV6 shielding - inner - 95 | 114022600480 | 2 | | ||||||||||||
| YGEV6-P2PWHA shielding - external - 95 | 114022600475 | 2 | | ||||||||||||
| Φ21.5 ×2 washer | 114060103683 | 2 | | ||||||||||||
| Cable clamp assembly R10.75(YGEV6) | 113069800639 | 2 | | ||||||||||||
| Φ21.5 rear cover | 114060103685 | 2 | | ||||||||||||
| Ordering information(assembly) | Ordering information(parts details, can be purchased separately) | ||||||||||||||
| Product name | Product code | Qty | Wiring specifications | Diagram (for reference) | |||||||||||

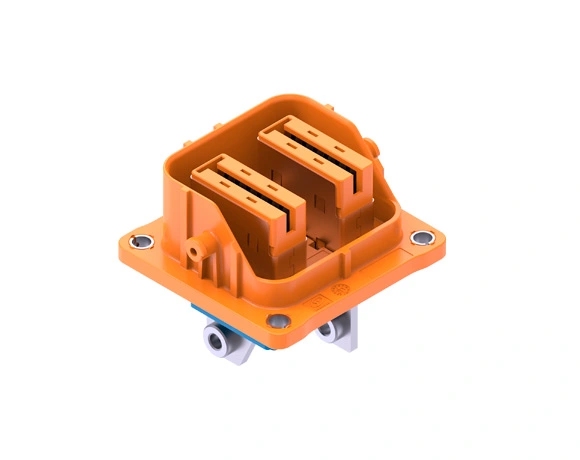

| YGEV6-S2RA plug | 111000502953 | YGEV6-S2RA receptacle assembly | 112020106944 | 1 | / |  | |||||||||
| YGEV5-2 pin insulator | 114060103508 | 1 | / |  | |||||||||||
| 0.63 ×0.63 PIN | 110010401011 | 2 | Φ(1.2-1.3)±0.1 (0.25-0.35mm²) |  | |||||||||||
| GEV6-S2RB plug | 111000503872 | YGEV6-S2RB receptacle assembly | 112020108140 | 1 | / |  | |||||||||
| YGEV5-2 pin insulator | 114060103508 | 1 | / |  | |||||||||||
| 0.63 ×0.63 pin | 110010401011 | 2 | Φ(1.2-1.3)±0.1 (0.25-0.35mm²) |  | |||||||||||
| Basic information | ||||||||||||||
| PIN distance | 28.8mm | |||||||||||||
| Number of pins | 2 pins | |||||||||||||
| Cable outlet direction | 90°、180° | |||||||||||||
| Shell material | plastic | |||||||||||||
| Shielding function | yes | |||||||||||||
| Electrical properties | ||||||||||||||
| Rated voltage | 1000 V DC(power), 24 V DC(signal) | |||||||||||||
| Rated current | 400A(95mm²) | |||||||||||||
| Insulation resistance | ≥ 100MΩ | |||||||||||||
| Withstand voltage | 3000 V AC(power), 1000 V AC(signal) | |||||||||||||
| HVIL | yes | |||||||||||||
| Mechanical properties | ||||||||||||||
| Life cycles | ≥50 times | |||||||||||||
| Vibration | USCAR V2 | |||||||||||||
| Shock | USCAR V2 | |||||||||||||
| Environmental resistance properties | ||||||||||||||
| Ambient temperature | -40℃ ~ +125℃ | |||||||||||||
| Humidity range | 95％(at 40 ℃) | |||||||||||||
| Salt spray | 96h | |||||||||||||
| IP rating | IP67&IP6K9K(plug and receptacle are mating) | |||||||||||||
| Pollution level | 2 | |||||||||||||
| Altitude requirements | ≤5000m | |||||||||||||
| Materials/Finish/Outline | ||||||||||||||
| Shell | PA66 | |||||||||||||
| Shielding | copper alloy | |||||||||||||
| Standards and certifications | ||||||||||||||
| Flame retardant rating | UL94 V-0(plastic)、HB(rubber) | |||||||||||||
| Environmental requirements | RoHS 2.0 | |||||||||||||

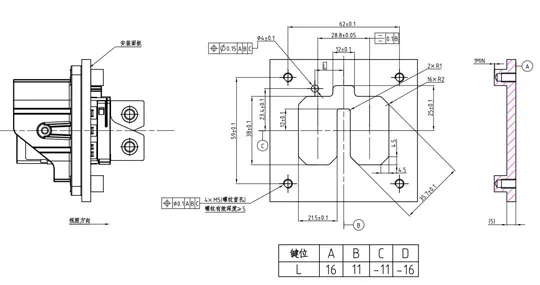

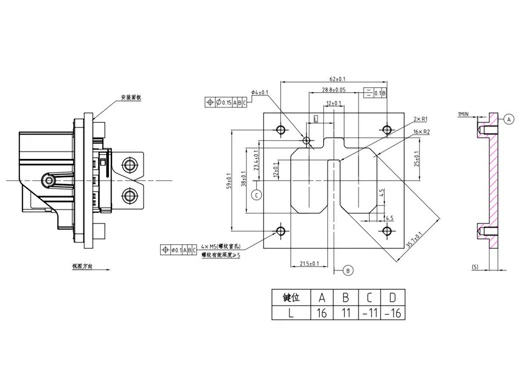

Installation
| Special tools | ||||||||||||||
| Disassembly tool | / | |||||||||||||
Storage
| Storage& transportation | ||||||||||||||
| Storage requirement | Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months. | |||||||||||||
| Transportation requirement | During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces. | |||||||||||||
