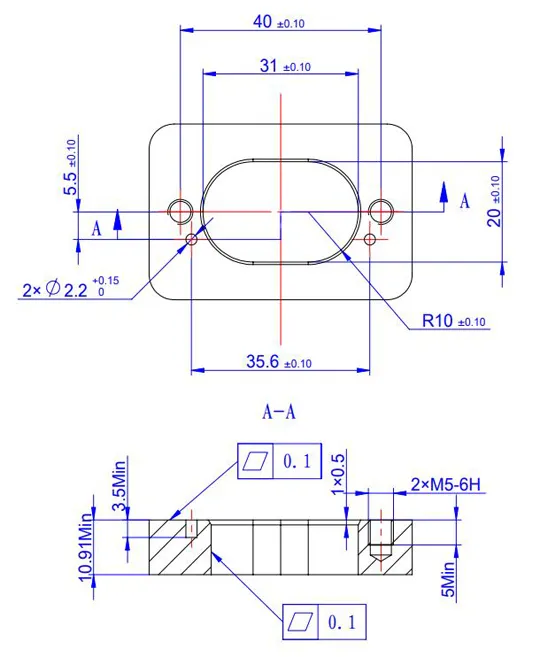

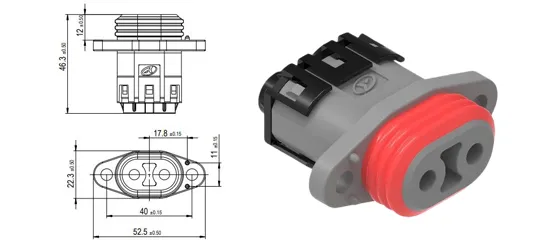

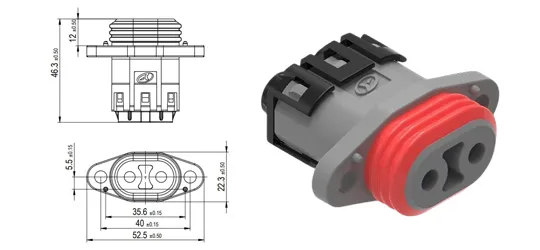

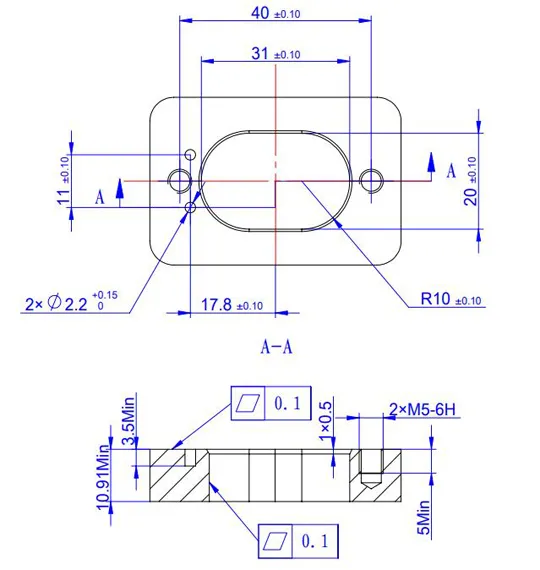

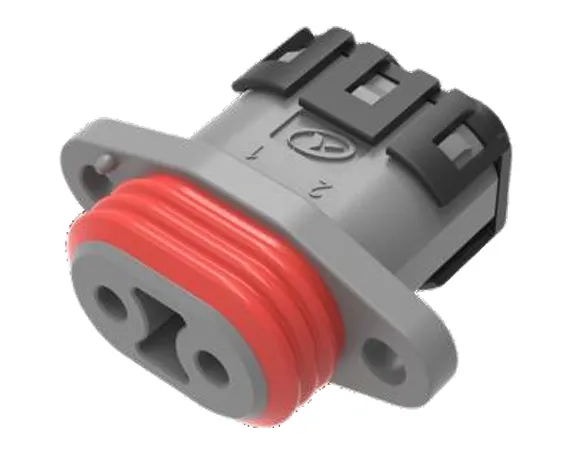

YGIPT2 Series Electrical Connectors - A0

Product name

YGIPT2 two-pin cable connector

YGIPT2 two-pin cable connector

Product code

YGIPT2-M2-1

YGIPT2-M2-2

Wiring specification(shielding)

4mm²: Φ5.55±0.25 mm

4mm²: Φ5.55±0.25 mm

6mm²: Φ6.25±0.25 mm

6mm²: Φ6.25±0.25 mm

10mm²: Φ8.50±0.30 mm

10mm²: Φ8.50±0.30 mm

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT2-M2-1-4 cable

connector

111009803650

YGIPT2-M2-1 housing assembly-4

113010101119

1

Φ5.55±0.25mm

(LV216)

YG196-537 shielding ring 4

114022600505

2

YG196-537 shielding assembly 2.5-6

113029800579

2

Φ6.5 rear cover

114069805912

1

YGEV2-1 cable sealy-Φ3.9

114050501799

2

YGIPT2-M2-1-6 cable

connector

111009803651

YGIPT2-M2-1 housing assembly-6

113010101120

1

Φ6.25±0.25mm

(LV216)

YG196-537 shielding ring 6

114022600506

2

YG196-537 shielding assembly 2.5-6

113029800579

2

Φ7.2 rear cover

114069805911

1

YGEV2-1 cable sealy-Φ4.8

114050501765

2

YGIPT2-M2-1-10 cable connector

111009803652

YGIPT2-M2-1 housing assembly-10

113010101121

1

Φ8.5±0.3mm

(LV216)

YG196-537 shielding ring 10

114022600507

2

YG196-537 shielding assembly 10

113029800580

2

Φ9.5 rear cover assembly

113069800632

1

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT2-M2-2-4 cable connector

111009803653

YGIPT2-M2-2 housing assembly-4

113010101122

1

Φ5.55±0.25mm

(LV216)

YG196-537 shielding ring 4

114022600505

2

YG196-537 shielding assembly 2.5-6

113029800579

2

Φ6.5 rear cover

114069805912

1

YGEV2-1 cable sealy-Φ3.9

114050501799

2

YGIPT2-M2-2-6 cable connector

111009803654

YGIPT2-M2-2 housing assembly-6

113010101123

1

Φ6.25±0.25mm

(LV216)

YG196-537 shielding ring 6

114022600506

2

YG196-537 shielding assembly 2.5-6

113029800579

2

Φ7.2 rear cover

114069805911

1

YGEV2-1 cable seal- Φ4.8

114050501765

2

YGIPT2-M2-2-10 cable connector

111009803655

YGIPT2-M2-2 housing assembly - 10

113010101124

1

Φ8.5±0.3mm

(LV216)

YG196-537 shielding ring 10

114022600507

2

YG196-537 shielding assembly 10

113029800580

2

Φ9.5 rear cover assembly

113069800632

1

PIN pitch

14.1mm

Numbers of pins

2

Cable outlet direction

180°

Shell material

Metal

Shielding function

Yes

Electrical specification

Rated voltage

1000V DC

Rated current

32A(4mm²)、55A(6mm²)、70A(10mm²)

Insulation resistance

≥100MΩ

Withstand voltage

3000 V AC

HVIL

No

Mechanical specification

Vibration

USCAR V3

Shock

USCAR V3

Environmental resistance specification

Ambient temperature

-40℃～+140℃

Humidity range

95％(at 40℃)

Salt spray

720h

IP rating

IP67、IP6K9K

Pollution level

2

Altitude

≤5000m

Materials/Finish/Outline

Shell

ADC12

Shielding

Copper alloy

Standards and certifications

Flame retardant rating

UL94 V-0 (plastic), HB (rubber)

Environment requirements

RoHS 2.0、ELV

Storage requirement

Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months.

Transportation requirement

During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces.
