YGIPT5 Series Electrical Connectors

Product name

Product code

Wiring specification

YGIPT5

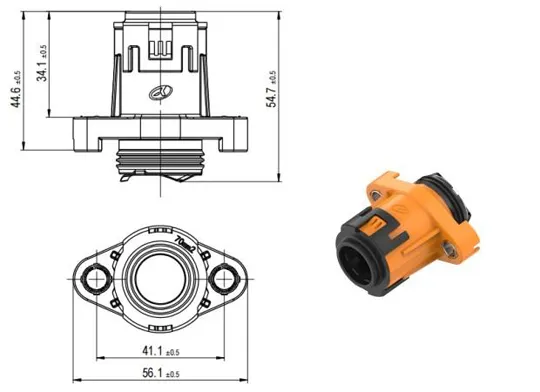

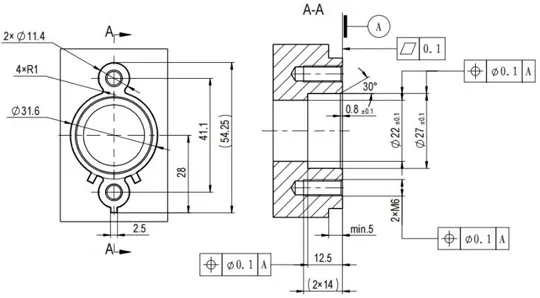

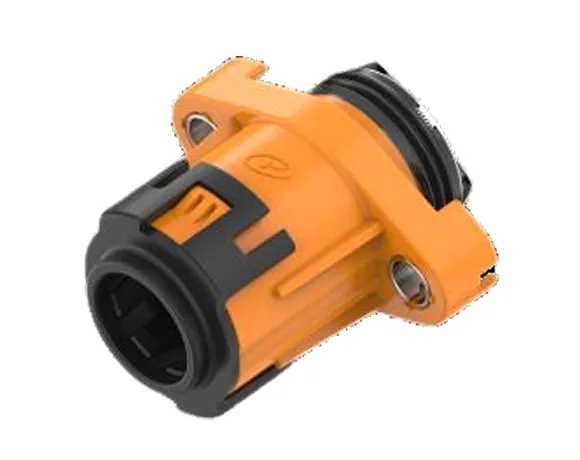

YGIPT5-P1

35mm²: Φ14.10±0.30 mm

50mm²: Φ15.50±0.30 mm

70mm²: Φ17.80±0.40 mm

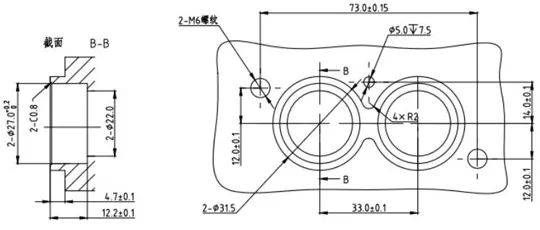

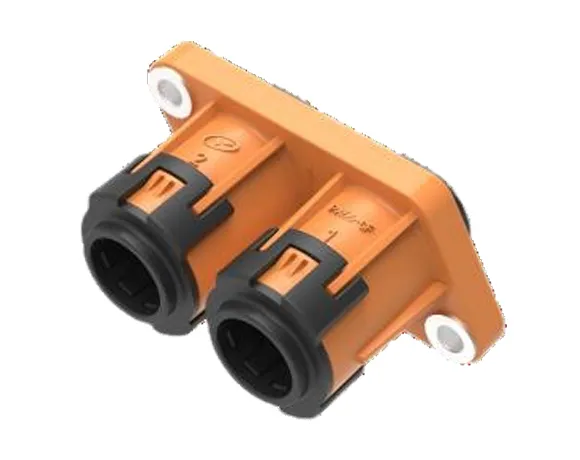

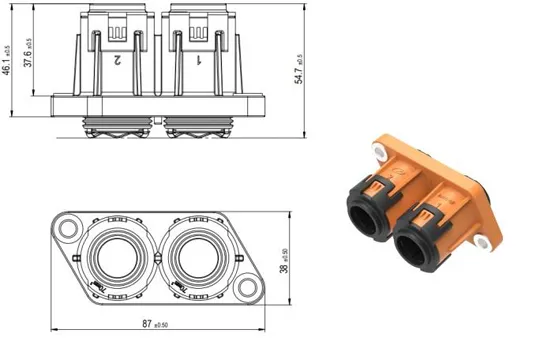

YGIPT5-P2

YGIPT5-P2B

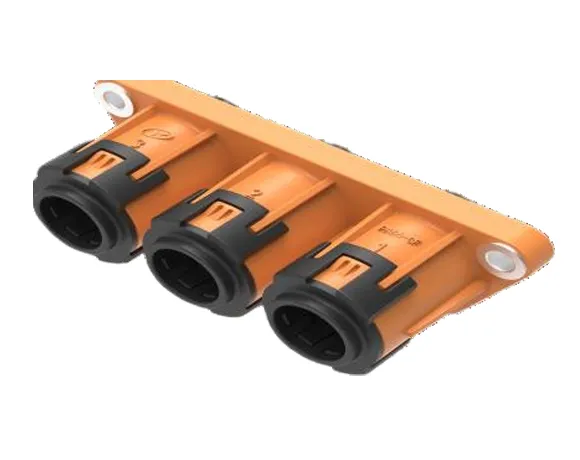

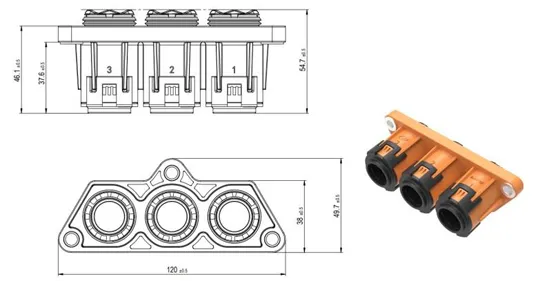

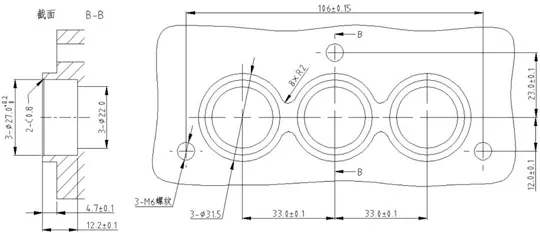

YGIPT5-P3

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT5-P1-70

111009803785

YGIPT5-P1 housing assembly 2

113069800770

1

Φ17.80±0.40mm(LV216)

YGIPT5 shielding assembly - 70

113029800618

1

YGEV5 shielding - inner - 70

114029801926

1

YGIPT5-1 cable seal - 70

114050502200

1

Φ18.4 rear cover(black)

114069806290

1

Cable clamp R9.25(black)

114069806291

1

Φ25.6×Φ18.5×1 washer

114019802129

1

YGIPT5-P1-50

111009803788

YGIPT5-P1 housing assembly 2

113069800770

1

Φ15.50±0.30mm(LV216)

YGIPT5 shielding assembly-50

113029800619

1

YG196-459 shielding ring A-50

114022600601

1

YGIPT5-1 cable seal-50

114050502244

1

Φ16 rear cover(black)

114069806433

1

Cable clamp R8.05(black)

114069806434

1

Φ25.6×Φ16.1×1 washer

114019802167

1

YGIPT5-P1-35

111009803789

YGIPT5-P1 housing assembly 2

113069800770

1

Φ14.10±0.30mm(LV216)

YGIPT5 shielding assembly - 50

113029800619

1

YG196-459 shielding ring - 35

114022600328

1

YGIPT5-1cable seal - 35

114050502246

1

Φ14.6 rear cover(black)

114069806437

1

Cable clamp R7.35(black)

114069806438

1

Φ25.6×Φ14.7×1 washer

114019802169

1

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT5-P2-70

111009803576

YGIPT5-P2 housing assembly 2

113069800691

1

Φ17.80±0.40mm(LV216)

YGIPT5 shielding assembly - 70

113029800618

2

YGEV5 shielding - inner - 70

114029801926

2

YGIPT5-1 cable seal - 70

114050502200

2

Φ18.4 rear cover (black)

114069806290

2

Cable clamp R9.25 (black)

114069806291

2

Φ25.6×Φ18.5×1 washer

114019802129

2

YGIPT5-P2-50

111009803572

YGIPT5-P2 housing assembly 2

113069800691

1

Φ15.50±0.30mm(LV216)

YGIPT5 shielding assembly-50

113029800619

2

YG196-459 shielding ring A-50

114022600601

2

YGIPT5-1 cable seal-50

114050502244

2

Φ16 rear cover (black)

114069806433

2

Cable clamp R8.05 (black)

114069806434

2

Φ25.6×Φ16.1×1 washer

114019802167

2

YGIPT5-P2-35

111009803574

YGIPT5-P2 housing assembly 2

113069800691

1

Φ14.10±0.30mm(LV216)

YGIPT5 shielding assembly - 50

113029800619

2

YG196-459 shielding ring - 35

114022600328

2

YGIPT5-1 cable seal - 35

114050502246

2

Φ14.6 rear cover (black)

114069806437

2

Cable clamp R7.35 (black)

114069806438

2

Φ25.6×Φ14.7×1 washer

114019802169

2

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT5-P3-70

111009803577

YGIPT5-P3 housing assembly 2

113069800692

1

Φ17.80±0.40mm(LV216)

YGIPT5 shielding assembly - 70

113029800618

3

YGEV5 shielding - inner - 70

114029801926

3

YGIPT5-1cable seal - 70

114050502200

3

Φ18.4 rear cover(black)

114069806290

3

Cable clamp R9.25(black)

114069806291

3

Φ25.6×Φ18.5×1 washer

114019802129

3

YGIPT5-P3-50

111009803573

YGIPT5-P3 housing assembly 2

113069800692

1

Φ15.50±0.30mm(LV216)

YGIPT5 shielding assembly - 50

113029800619

3

YG196-459 shielding ring A - 50

114022600601

3

YGIPT5-1cable seal - 50

114050502244

3

Φ16 rear cover(black)

114069806433

3

Cable clamp R8.05(black)

114069806434

3

Φ25.6×Φ16.1×1 washer

114019802167

3

YGIPT5-P3-35

111009803575

YGIPT5-P3 housing assembly 2

113069800692

1

Φ14.10±0.30mm(LV216)

YGIPT5 shielding assembly - 50

113029800619

3

YG196-459 shielding ring - 35

114022600328

3

YGIPT5-1 cable seal - 35

114050502246

3

Φ14.6 rear cover(black)

114069806437

3

Cable clamp R7.35(black)

114069806438

3

Φ25.6×Φ14.7×1 washer

114019802169

3

Product name

Product code

Qty

Wiring specification

Diagram

(for reference)

YGIPT5-P2B-70

111009803579

YGIPT5-P2B housing assembly 2

113069800724

1

Φ17.80±0.40mm(LV216)

YGIPT5 shielding assembly - 70

113029800618

2

YGEV5 shielding - inner - 70

114029801926

2

YGIPT5-1 cable seal - 70

114050502200

2

Φ18.4 rear cover(black)

114069806290

2

Cable clamp R9.25(black)

114069806291

2

Φ25.6×Φ18.5×1 washer

114019802129

2

YGIPT5-P2B-50

111009803571

YGIPT5-P2B housing assembly 2

113069800724

1

Φ15.50±0.30mm(LV216)

YGIPT5 shielding assembly-50

113029800619

2

YG196-459 shielding ring A-50

114022600601

2

YGIPT5-1 cable seal-50

114050502244

2

Φ16 rear cover(black)

114069806433

2

Cable clamp R8.05 (black)

114069806434

2

Φ25.6×Φ16.1×1 washer

114019802167

2

YGIPT5-P2B-35

111009803578

YGIPT5-P2B housing assembly 2

113069800724

1

Φ14.10±0.30mm(LV216)

YGIPT5 shielding assembly - 50

113029800619

2

YG196-459 shielding ring - 35

114022600328

2

YGIPT5-1 cable seal - 35

114050502246

2

Φ14.6 rear cover (black)

114069806437

2

Cable clamp R7.35 (black)

114069806438

2

Φ25.6×Φ14.7×1 washer

114019802169

2

Pin pitch

33mm

Numbers of pins

1/2/3

Cable outlet direction

180°

Shell material

Plastic

Shielding function

Yes

Electrical specification

Rated voltage

1000V DC

Rated current

200A(35mm²)、250A(50mm²)、300A(70mm²)

Insulation resistance

≥100MΩ

Withstand voltage

3000 V AC

HVIL

No

Mechanical specification

Vibration

USCAR V3

Shock

USCAR V3

Environmental resistance specification

Ambient temperature

-40℃～+125℃

Humidity range

95％(at 40℃)

Salt spray

96h

IP rating

IPX8、IP6K9K

Pollution level

2

Altitude

≤5000m

Materials/Finish/Outline

Shell

PA66

Shielding

Copper alloy

Standards and certifications

Flame retardant rating

UL94 V-0(Plastic)、HB(rubber)

Environmental requirements

RoHS 2.0、ELV

Storage requirement

Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months.

Transportation requirement

During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces.
