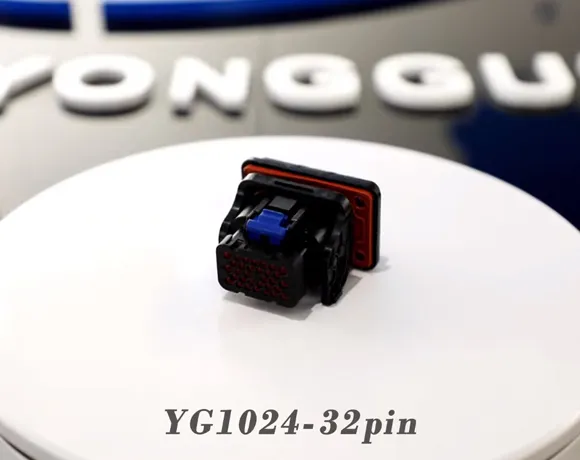

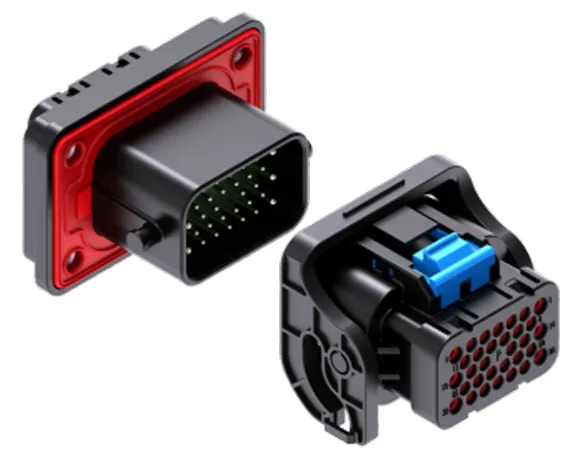

YG1024-32Pin

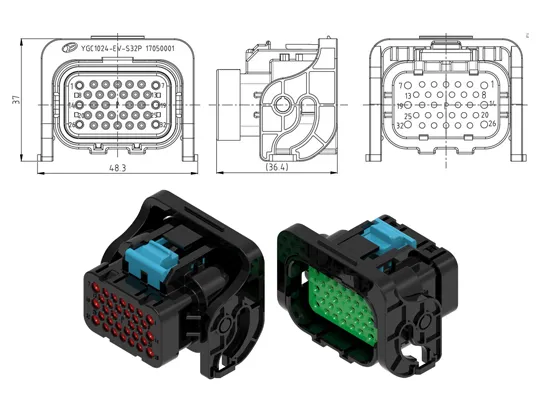

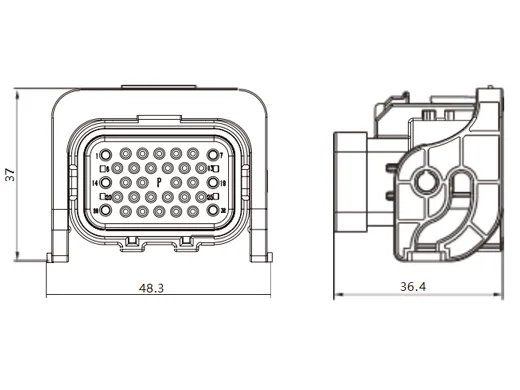

Plug

YGC1024-EV-S32P

112010102051

Φ0.5mm-Φ1.5mm

Excluding receptacles and seal plugs, supplied as separate components.

For details, refer to the accessory list.

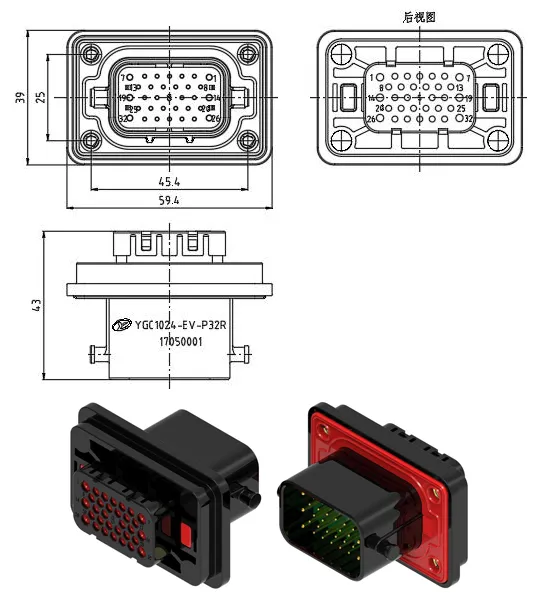

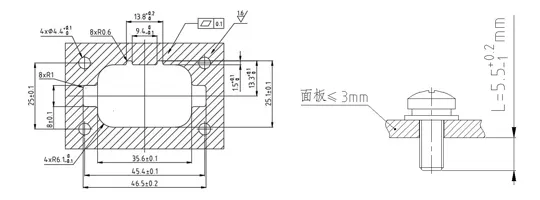

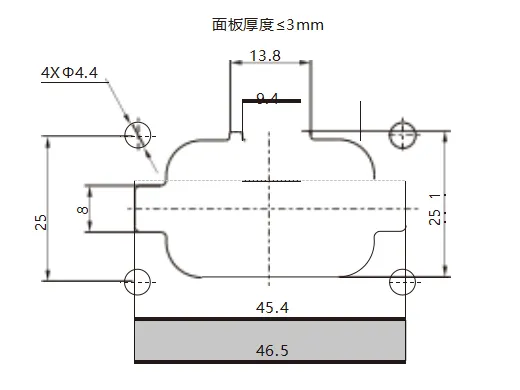

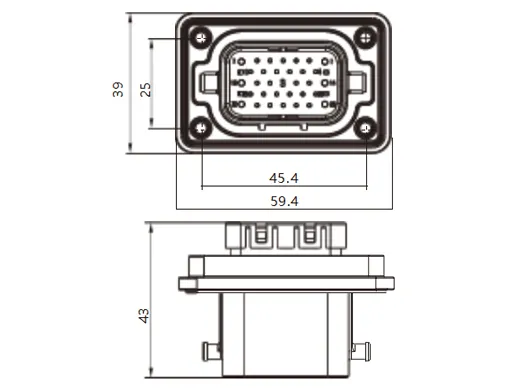

YGC1024-EV-P32R

112022000693

Φ0.5mm-Φ1.5mm

Excluding receptacles and seal plugs, supplied as separate components.

For details, refer to the accessory list.

Product model

Product code

Wiring specification

Diagram

(for reference)

Remarks

Socket

Φ1.6 stamped socket(gold-plated)

501021401210

n(≤6)

Φ0.75mm-Φ 1.5mm

Purchased separately

Φ1 stamped socket(gold-plated)

501021401212

n(≤26)

Purchased separately

Pin

Φ1.6 stamped pin(gold-plated)

501021401209

n(≤6)

Φ0.75mm-Φ 1.5mm

Purchased separately

Φ1 stamped pin(gold-plated)

501021401211

n(≤26)

Φ0.5mm

Purchased separately

Φ 1.6 seal plug

YG378 cavity plug

115980018401

6-n

/

/

Purchased separately

Φ 1 seal plug

YG938 seal plug

114069802405

26-n

/

/

Purchased separately

Numbers of pins

32

Cable outlet direction

180°

Shell material

Plastic

Shielding function

No

Electrical specification

Rated voltage

24V DC

Rated current

5A(0.5mm²、0.75mm²)、8A(1mm²)、10A(1.5mm²)

Insulation resistance

≥200MΩ(常态/normal state)

Withstand voltage

1000 V(500HZ AC normal state)

HVIL(Y/N))

No

Mechanical specification

Mating cycle

≥50 Times

Environmental resistance specification

Ambient temperature

-40℃ ~ +125℃

Humidity range

95％(at 40℃)

Salt spray

96h

IP rating

IP67&IP6K9K

Materials/Finish/Outline

Shell

PA66

Pollution level

Pin removal tool

Φ1.6 Contact pin removal tool model: RTSCA-18 (Code: 499000000152)

Φ1 Contact pin removal tool model: RTSCA-09

Storage requirement

Components with contact elements (gold-plated, silver-plated) must be stored separately, kept clean, tidy and in a well-ventilated environment. The storage environment shall be controlled with a humidity of ≤60% and a temperature ranging from 5°C to 30°C. The reference storage period is 6 months.

Transportation requirement

During packaging, transportation, transfer, production, and assembly processes, terminals shall be protected from collisions, contact with corrosive gases and liquids, and direct hand contact, so as to ensure the good condition of the terminal contact surfaces.
