Material Introduction: YG982 D、E、F Series connectors have 2+2、3+2 two specifications , with built-in high voltage interlock function.
Termination method is crimping type: The maximum cross-sectional area of cables that can be crimped onto the contacts in the 2+2-pin and 3+2-pin configurations is 10 mm². The connector features excellent electromagnetic shielding performance, and after the plug and receptacle are mated, the protection level can reach IP68 and IP6K9K.
The connector meets the IPXXB protection level when it is not mated.
The connector housing has five key positions: 45 °, 90 °, 135 °, 180 °, 225°.
Note: The plugs and receptacles in the table below do not include contacts and cable seal . Contact and cable seal can be ordered separately according to requirements. For purchase, please refer to the contact specification table and the cable seal specification table for details. The high-voltage interlock signal contact can be selected according to needs.
YGC —— Manufacturer code: YGC
982 —— Design serial number: 982
EV —— Series classification: EV
S/P—— Contact type: S: socket, P: pin
(2+2)—— Number of power contacts: 2:2pin,3:3pi
(2+2)—— Number of signal contacts: 2:2pin
P/R—— Connector type: P: plug, R: receptacle
D—— Extension code: D type, E type, F type
N—— Key position inversion code: N: 45°, W: 90°, X: 135°, Y: 180°, Z: 225°
H—— Color code: H: Black, R: Red, Y: Yellow, B: Blue, G: Green
Material procurement information
| No. | Plug model and product code | Mating receptacle model and product code | reposit ioning | Contacts and cable seal matching quantity(order separately) | Remarks(selectionprinciple) | |||||||||||||||||||||||
| 1 | YGC982-EV-S(2+2)PD/N H plug 115010030405 | YGC982-EVP(2+2)RD/N H receptacle 115110023505 | 45° | Compatible plug: ①Power socket 2 ②Signal pins: 2 ③cable seal: 1 ④ Waterproof plug: 2 (shielded wire selection ) Compatible receptacle: ①Power pins: 2 ②Signal socket 2 | Two pins(Φ2.4 contact pair) ①Power terminal: Current carrying → power terminal → wiring specification (2.5,4,6 mm²) ②Signal terminal: 0.5mm² ③cable seal: Cabled/stranded wire → cable outer diameter → cable seal specifications | |||||||||||||||||||||||
| 2 | YGC982-EV-S(2+2)PD/WR plug 115010030401 | YGC982-EV-P(2+2)RD/W R receptacle 115110023501 | 90° | |||||||||||||||||||||||||
| 3 | YGC982-EV-S(2+2)PD/XY plug 115010030402 | YGC982-EV-P(2+2)RD/X Y receptacle 115110023502 | 135° | |||||||||||||||||||||||||
| 4 | YGC982-EV-S(2+2)PD/YB plug 115010030403 | YGC982-EV-P(2+2)RD/YB receptacle 115110023503 | 180° | |||||||||||||||||||||||||
| 5 | YGC982-EV-S(2+2)PD/ZG plug 115010030404 | YGC982-EV-P(2+2)RD/Z G receptacle 115110023504 | 225° | |||||||||||||||||||||||||
| 6 | YGC982-EV-S(3+2)PE/NH plug 115010030505 | YGC982-EV-P(3+2)RE/N H receptacle 115110023805 | 45° | |||||||||||||||||||||||||
| 7 | YGC982-EV-S(3+2)PE/WR plug 115010030501 | YGC982-EV-P(3+2)RE/W R receptacle 115110023801 | 90° | |||||||||||||||||||||||||
| 8 | YGC982-EV-S(3+2)PE/XY plug 115010030502 | YGC982-EV-P(3+2)RE/XY receptacle 115110023802 | 135° | Compatible plug: ①Power socket 3 ②Signal pins: 2 ③cable seal: 1 ④ Waterproof plug: 3 (shielded wire selection) Compatible receptacle: ①Power pins: 3 ②Signal socket 2 | Three pins (Φ2.4 contact pairs) ①Power terminal: Current carrying → power terminal → wiring specifications (2.5, 4, 6 mm²) ②Signal terminal: 0.5mm² ③cable seal: Cabled/stranded wire → cable outer diameter → cable seal specifications | |||||||||||||||||||||||
| 9 | YGC982-EV-S(3+2)PE/YB plug 115010030503 | YGC982-EV-P(3+2)RE/YB receptacle 115110023803 | 180° | |||||||||||||||||||||||||
| 10 | YGC982-EV-S(3+2)PE/ZG plug 115010030504 | YGC982-EV-P(3+2)RE/ZG receptacle 115110023804 | 225° | |||||||||||||||||||||||||
| 11 | YGC982-EV-S(2+2)PF/NH plug 115010033305 | YGC982-EV-P(2+2)RF/N H receptacle 115110025205 | 45° | Compatible plug: ①Power socket 2 ②Signal pins: 2 ③cable seal: 1 ④ Waterproof plug: 2 (shielded wire selection) Compatible receptacle: ①Power pins: 2 ②Signal socket 2 | Two pins(Φ3.5 contactpair) ①Power terminal: Current carrying → power terminal → wiring specifications (10 mm² ) ②Signal terminal: 0.5mm² ③cable seal: Cabled/stranded wire → cable outer diameter → cable seal specifications | |||||||||||||||||||||||
| 12 | YGC982-EV-S(2+2)PF/WR plug 115010033301 | YGC982-EV-P(2+2)RF/W R receptacle 115110025201 | 90° | |||||||||||||||||||||||||
| 13 | YGC982-EV-S(2+2)PF/XY plug 115010033302 | YGC982-EV-P(2+2)RF/XY receptacle 115110025202 | 135° | |||||||||||||||||||||||||
| 14 | YGC982-EV-S(2+2)PF/YB plug 115010033303 | YGC982-EV-P(2+2)RF/YB receptacle 115110025203 | 180° | |||||||||||||||||||||||||
| 15 | YGC982-EV-S(2+2)PF/ZG plug 115010033304 | YGC982-EV-P(2+2)RF/ZG receptacle 115110025204 | 225° | |||||||||||||||||||||||||
Contacts specifications
| No. | Product model | Product code | Rated current | Wiring specifications | Remarks | |||||||||||||||||||||||
| 1 | YG 982 pin assembly A-φ3.5-10 mm²-silver | 113020101184 | 50A | 10mm² | Power terminals for F-type receptacles | |||||||||||||||||||||||
| 2 | YG 982 socket assembly - ø3.5-10 mm² - silver | 113020601162 | 50A | 10mm² | Power terminals for F-type plugs | |||||||||||||||||||||||
| 3 | YG 982pin assembly - ø2.4-2.5 mm² - silver | 113020100778 | 16A | 2.5mm² | Power terminals for D and E type receptacles | |||||||||||||||||||||||
| 4 | YG 982 pin assembly - ø2.4-4 mm² - silver | 113020100779 | 23A | 4mm² | Power terminals for D and E type receptacles | |||||||||||||||||||||||
| 5 | YG 982 pin assembly - ø2.4-6 mm² - silver | 113020100780 | 30A | 6mm² | Power terminals for D and E type receptacles | |||||||||||||||||||||||
| 6 | YG 982 socket assembly - ø2.4-2.5 mm² - silver | 113020601155 | 16A | 2.5mm² | Power terminals for D and E type plugs | |||||||||||||||||||||||
| 7 | YG 982 socket assembly- ø2.4-4 mm² - silver | 113020601156 | 23A | 4mm² | Power terminals for D and E type plugs | |||||||||||||||||||||||
| 8 | YG 982 socket assembly - ø2.4-6 mm² - silver | 113020601157 | 30A | 6mm² | Power terminals for D and E type plugs | |||||||||||||||||||||||
| 9 | YG 380 socket assembly φ1-0.5 mm²-gold | 113020600144 | 1A | 0.5mm² | Signal terminals for receptacles | |||||||||||||||||||||||
| 10 | T10 WAS 011-H50 GC pin assembly | 113020101462 | 1A | 0.5mm² | Signal terminals for plugs | |||||||||||||||||||||||
Contact dimension diagram
| ΦA | ΦB | C | ΦA | ΦB | C | |||||||||||||||||||||||
| YG 982 pin assembly - ø2.4-2.5 mm² - silver | 2.5 | 5.5 | 27.5 | YG 982 socket assembly - ø2.4-2.5 mm² - silver | 2.5 | 5.5 | 24 | |||||||||||||||||||||
| YG 982 pin assembly - ø2.4-4mm² - silver | 3.2 | 5.5 | 29.5 | YG 982 socket assembly - ø2.4-4 mm² - silver | 3.2 | 5.5 | 26 | |||||||||||||||||||||
| YG 982 pin assembly - ø2.4-6mm² - silver | 3.6 | 5.5 | 29.5 | YG 982 socket assembly - ø2.4-6 mm² - silver | 3.6 | 5.5 | 26 | |||||||||||||||||||||
Socket dimension diagram
| ΦA | ΦB | C | ΦA | ΦB | C | |||||||||||||||||||||||
| YG 982 pin assembly A-φ3.5-10 mm²-silver | 4.7 | 7.2 | 35.6 | YG982socketassembly-ø3.5-10mm²-silver | 4.7 | 7.2 | 25.5 | |||||||||||||||||||||
Pin dimension diagram
Socket dimension diagram
Cable seal specifications
| No. | Product code | Product model | Suitable cable outer diameter | Picture | Remarks | |||||||||||||||||||||||
| 1 | 114050500909 | YG982 cable seal(13-17) | Cabled wire outer diameter 13-17mm |  | All the cable seals are purchased separately according to the wiring requirements. | |||||||||||||||||||||||
| 2 | 114050501083 | YG982 cable seal(9-13) | Cabled wire outer diameter 8mm-13mm | |||||||||||||||||||||||||
| 3 | 114050500911 | YG982 cable seal(2*φ6.8) | Outer diameter of stranded wires 6mm-8mm |  | ||||||||||||||||||||||||
| 4 | 114050501080 | YG982 cable seal(2*φ3.5) | Outer diameter of stranded wires 3.5mm-5.8mm | |||||||||||||||||||||||||
| 5 | 114050500912 | YG982 cable seal(3*φ6.8) | Outer diameter of stranded wires 4.9mm-8mm |  | ||||||||||||||||||||||||
| 6 | 114050501081 | YG982 cable seal(3*φ3.5) | Outer diameter of stranded wires 3.5mm-4.8mm | |||||||||||||||||||||||||
Waterproof plug specifications
| Product code | Product model | Suitable cable specifications | Pictures | Remarks | ||||||||||||||||||||||||
| 114059800510 | YG722 Waterproof plug | 2.5-6mm² |  | If the plug connector is connected to a shielded wire, this material needs to be selected. Order separately based on the required quantity. | ||||||||||||||||||||||||
Technical parameters
1. Electrical parameters
Rated operating current
| Classification | Current(A) | Suitable cable(mm²) | Remarks | |||||||||||||||||||||||||
| 2/3 pin power | 50 | 10 | Φ3.5 Contact pair | |||||||||||||||||||||||||
| 30 | 6 | Φ2.4 Contact pair | ||||||||||||||||||||||||||
| 23 | 4 | Φ2.4 Contact pair | ||||||||||||||||||||||||||
| 16 | 2.5 | Φ2.4 Contact pair | ||||||||||||||||||||||||||
| Signal | 1 | 0.5 | / | |||||||||||||||||||||||||
Rated operating voltage: 1000V (power), 2 4V (signal)
Note: According to GB /T16935.1-2008 (IEC 60664-1:2007), pollution level 2, over voltage category III, altitude is less than 2000m
Withdraw voltage: 3000V (power), 1000V(signal) A C 50Hz; No breakdown or flashover phenomenon within 1 minute.
Insulation resistance: ≥2000MΩ(power ), ≥1000MΩ(signal) (normal)
Contact resistance: ≤1.5mΩ
2. Mechanical parameters
Life cycle: ≥ 50 times
IP rating: IP67&IP6K9K、IPXXB
3. Operating environment
Ambient temperature: -40℃~+125℃
Relative humidity: 95 %(at 40°C)

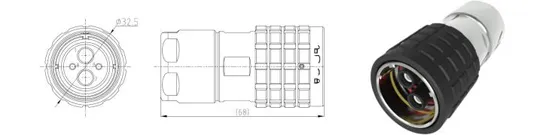

YGC982-EV-S（2+2）PD Series plug appearance
Plug repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Connector sleeve color | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PD/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PD/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PD/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PD/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PD/ZG |  | 225 degrees | Green | |||||||||||||||||||||||||

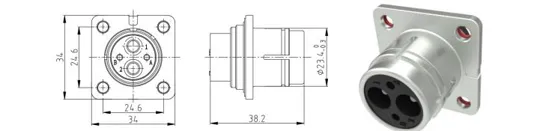

YGC982-EV-P（2+2） RD Series receptacle appearance(Tolerance of unspecified dimensions: ± 0.5)
Receptacle repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Connector sleeve color | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RD/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RD/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RD/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RD/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RD/ZG |  | 225 degrees | Green | |||||||||||||||||||||||||

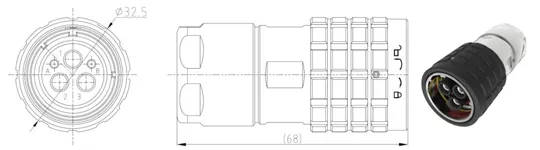

YGC982-EV-S （3+2）Series plug appearance
Plug repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Connector sleeve color | |||||||||||||||||||||||||
| YGC982-EV-S（3+2）PE/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-S（3+2）PE/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-S（3+2）PE/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-S（3+2）PE/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-S（3+2）PEZG |  | 225 degrees | Green | |||||||||||||||||||||||||

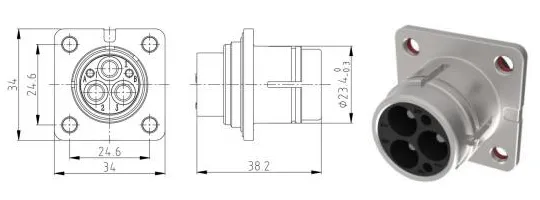

YGC982-EV-P(3+2) RE Series receptacle appearance(Tolerance of unspecified dimensions: ± 0.5)
Receptacle repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Receptacle paint color | |||||||||||||||||||||||||
| YGC982-EV-P（3+2）RE/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-P（3+2）RE/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-P（3+2）RE/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-P（3+2）RE/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-P（3+2）RE/ZG |  | 225 degrees | Green | |||||||||||||||||||||||||

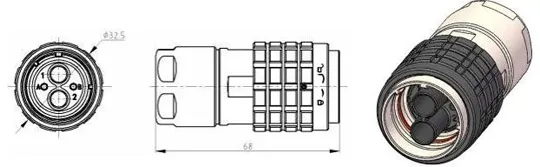

YGC982-EV-S（2+2） PF Series plug appearance(Tolerance of unspecified dimensions: ± 0.5)
Plug repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Connector sleeve color | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PF/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PF/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PF/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PF/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-S（2+2）PF/ZG |  | 225 degrees | Green | |||||||||||||||||||||||||
YGC982-EV-P(2+2) RF Series socket appearance(Tolerance of unspecified dimensions: ± 0.5)
Receptacle repositioning diagram
| Product model | Repositioning diagram | Repositioning angle | Receptacle paint color | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RF/NH |  | 45 degrees | Black | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RF/WR |  | 90 degrees | Red | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RF/XY |  | 135 degrees | Yellow | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RF/YB |  | 180 degrees | Blue | |||||||||||||||||||||||||
| YGC982-EV-P（2+2）RF/ZG |  | 225 degrees | Green | |||||||||||||||||||||||||
Mounting hole dimension
Special tool models(order separately)
Pin removal tool model
Power socket: RTSCA-21 disassembly tool - Φ 3.5; RTSCA-22 disassembly tool - Φ 2.4
Single socket: RTSCA-01 disassembly tool - Φ 1.0
