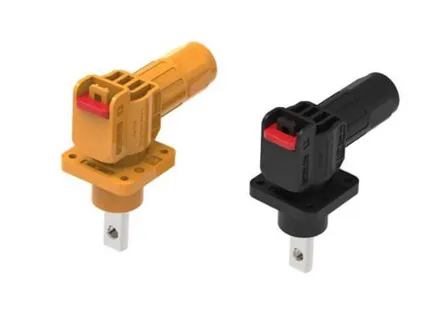

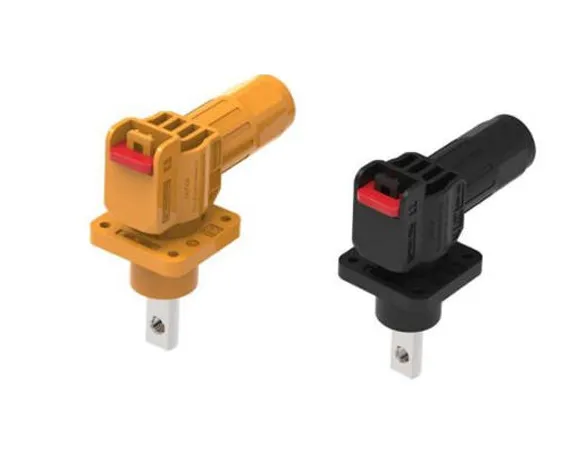

Application：Primarily used in fields such as large containerized energy storage, commercial & industrial energy storage, and residential energy storage, providing power transmission for components like battery PACKs and PCS within the energy storage system.
Description：
Allows 360° rotation after mating to provide cable strain relief.
The secondary lock prevents accidental loosening.
Color coding and keying for mis-mating prevention.
One-piece angled terminal to prevent poor connections.

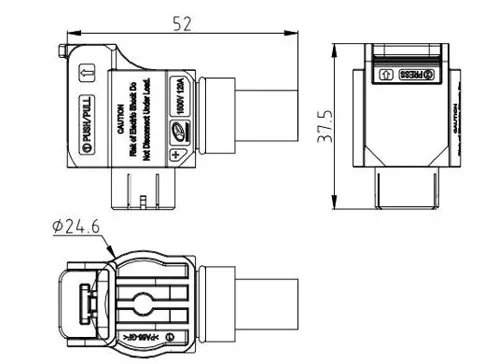

Plug outline dimension

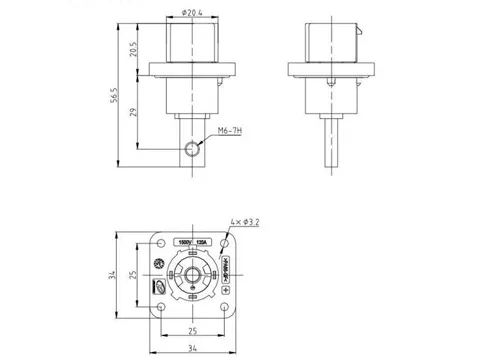

Receptacle outline dimension

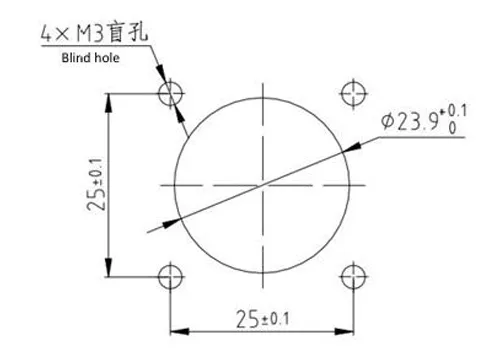

Mounting hole dimension
Basic information | |
Numbers of pins | 1 |
Terminal specifications | Φ5.75 |
Electrical specification | |
Rated voltage | 1500V DC |
Rated current | 120A |
Insulation resistance | ≥ 100MΩ |
Withstand voltage | 6800V AC 50Hz |
Contact resistance | ≤0.2mΩ |
Temperature rise | ≤45K |
Termination method | |
Termination method | Plug: Hexagonal crimp Receptacle: M6 threaded locking, torque 5 N•m - 5.5 N•m |
Cable specifications | 10mm2/16mm²/25mm²/35mm² |
Cable outer diameter | 6.7 ±0.2mm/ 8.1 ±0.2mm/ 10.2 ±0.2mm/ 11.5 ±0.2mm |
Mechanical specification | |
Life cycle | ≥ 100/cycles |
Vibration and shock | QC/T 1067.1-2017 Vibration level V1 |
Environmental resistance specification | |
Ambient temperature | -40℃ ~ +125℃ |
Humidity range | 5%～95% |
Salt spray | 96 H |
IP rating | IP67(after mating) |
Materials/Finish/Outline | |
Insulator | Engineering plastic |
Rubber part | Silicone rubber |
Contacts | Copper alloy Silver-plated |
Standards and certifications | |
Flame retardant rating | UL94 V0 (Main material ) |
Environment requirements | RoHS 2.0 |
certification | TUV、CE |
Reference standard | UL4128、QC/T 1067.1-2017 |
Instructions for packaging and storage | |
Packaging method | Carton packaging, moisture-proof treatment |
Storage requirements | Products packed in boxes should be stored in a warehouse with an ambient temperature of -10℃ ~ +40℃, a relative humidity of less than 80%, and no acidic, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed 1 year from the date of production. Please note that the remaining products should be sealed in time after use. |
Instructions for use | Connectors should be used within the provided technical parameter range and strictly in accordance with the product instruction manual for installation, use, and maintenance of the product. |
