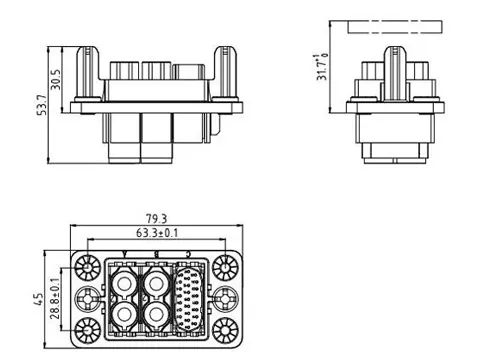

Plug out line dimension

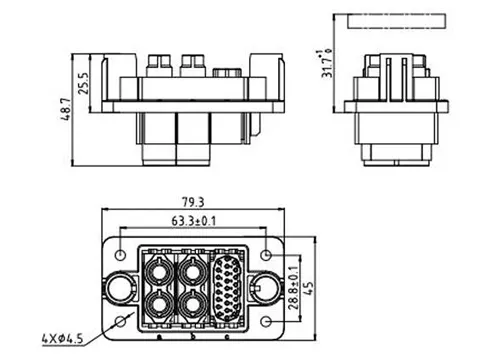

Receptacle outline dimension

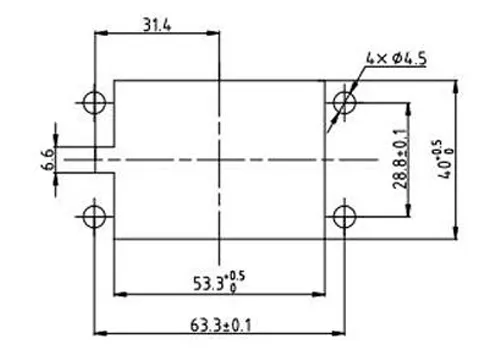

Mounting holes dimension
Electrical characteristic
Number of modules | 3 | |
Floating tolerance | ±2mm | |
Pins | 4(Max) | 25(Max) |
Fitting contacts | Φ6mm | Φ 1mm |
Rated current | 70A | 5A |
Rated voltage | 1500V | 50V |
Voltage proof | 6800V AC 50Hz | 500V AC 50Hz |
Contact resistance | ≤0.5mΩ | ≤ 5mΩ |
Insulation resistance | ≥ 100M Ω | |
Temperature rise | ≤45K | |
Mechanical characteristics
Durability | ≥500 cycles |
Material | Insulator: Engineering plastic Contacts: Copper alloy |
Surface treatment | Silver/Gold |
Flame rating | UL94 V0 |
Operating environment
Operating temperature | -40℃ ~ +125℃ |
Vibration/Shock | GB/T 21563-2018 Class 1 Level B |
