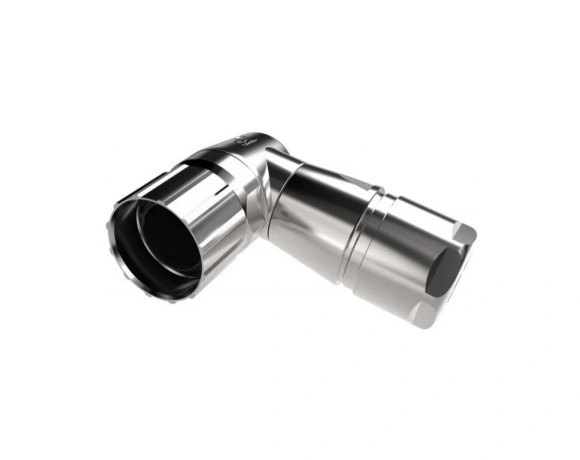

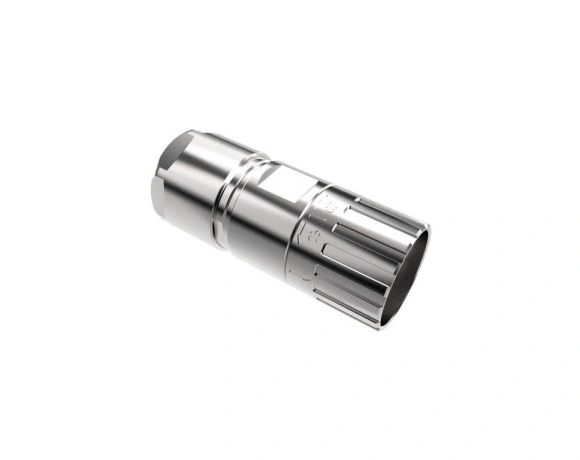

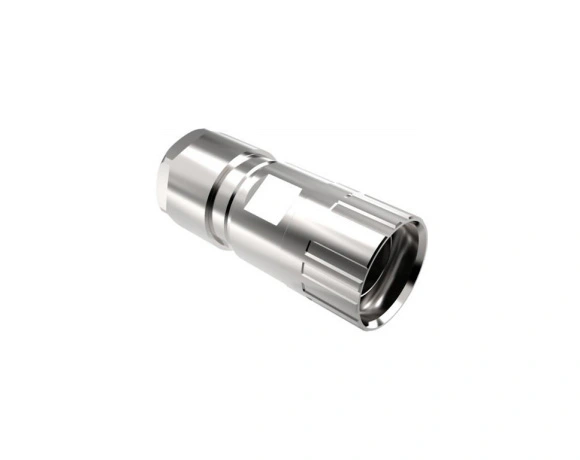

M23-S Seris Connectors

This product is a circular metal connector, the wiring is crimped. The headstock is threaded or snap fastened. The operation is fast and simple and can be used interchangeably with foreign products of the same kind. Mainly used in wind power generation, robotics, rail transportation and industrial equipment automation electrical control system between the electrical source connection.

Specifications of M23-S Seris Connectors

①Electrical parameters

Number of cores

9(8+1)

12

17

Number of contacts

8      1

12

17

Diameter of contacts(mm)

φ1     φ2

φ1

φ1

Rated current(A)

8      20

8

8

Rated voltage(v) Pollution level 3

200

200

160

Test Voltage(v)

2500

2500

1500

Insulation resistance(MQ)

>10000

>10000

>10000

Maximum contact resistance(mQ)

3

3

3

②Technical Parameters
HousingDepression casting zinc alloy
Surface treatmentElectroless nickel plating
InsulationEngineering plastics conforming to UL94-V0
ContactsCopper Alloy
Surface treatment of contact partsGold plated
Mechanical life1000 times
RubberSilicone Rubber & Butyl Rubber
Connection methodClamp pressure
Protection ratingIP67/IP69K (locked condition) (with suitable tail attachment)
Cable diameter3-17mm(.12-.67)
③Other parameters

Working Temperature

-55℃~+125℃

Relative humidity

90%~95%(temperature:40±2℃)

Environmental protection

RoHS
