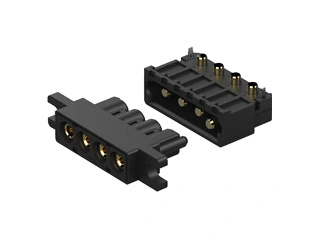

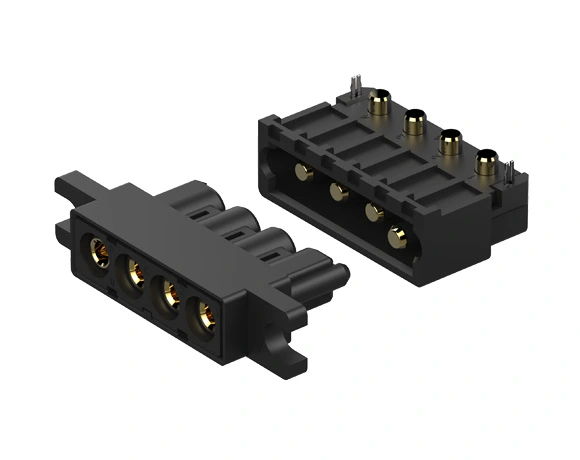

Spacing: 12mm
Cable specification: 6AWG
Termination Mode: Wire end: Crimp; Board end: Soldering
Installation Method: Wire end: panel mounting; Board end: PCB board mounting
Installation Torque: 1.5±0.3N•m
Breaking Torque: 2.5N•m
Connection Mode: /
PCB Thickness: 2mm(Recommended thickness)

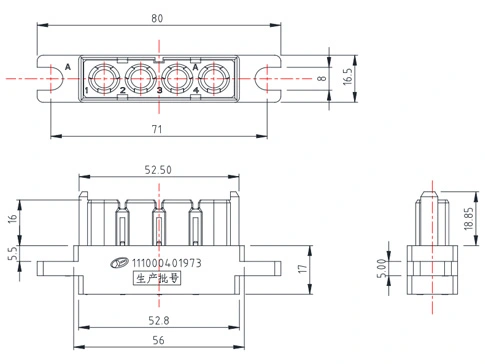

141054-JL-S4P (Plug)

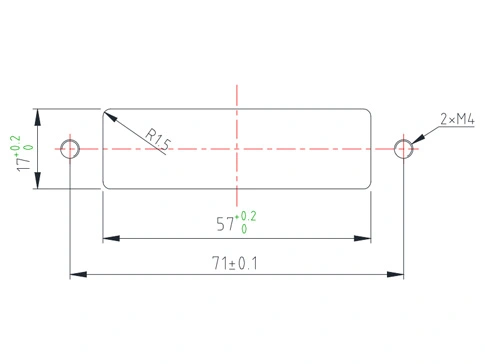

Recommended installation hole size

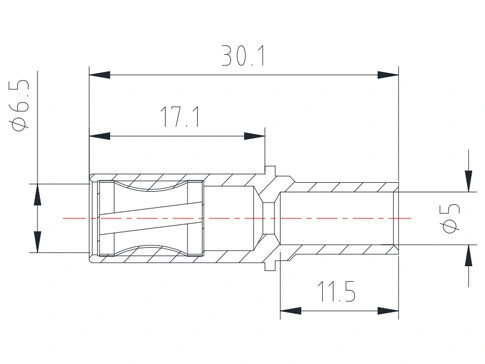

141054 Socket accessories φ5.75-6AWG-Crown spring gold plated

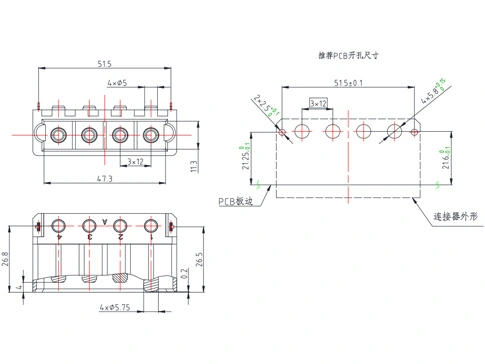

141054-JL-P4RW-5 Receptacle (Position 1 is a long needle)

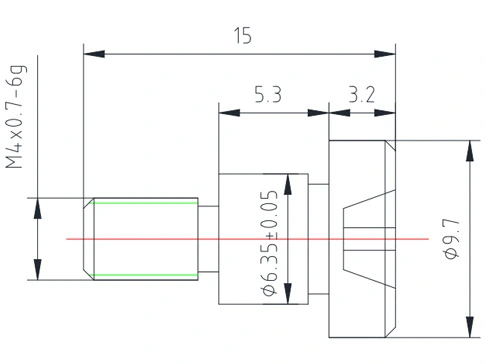

M4 floating installation screw
| Electrical Characteristic | Pins | 4 max |
| Rated Current | 100A | |
| Rated Voltage | 1000V DC | |
| Withstand voltage | 2000V AC | |
| Contact Resistance | ≤1 mΩ | |
| Insulation Resistance | ≥1000MΩ DC 500V（normal temperature） | |
| Mechanical Characteristic | Overall insertion force | 60N Max |
| Single leg separation force | 6N Min | |
| Mechanical life | 500 times | |
| Protection Class | / | |
| Materials and surface treatment | Material Contact: copper alloy; base material: PBT+30% | |
| Surface Treatment： 0.05μm Gold plating 0.05μm | ||
| Test Area | / | |
| Work environment | Operating Temperature | -55℃～+125℃ |
| Relative Humidity | 40℃, ≤90% | |
| Salt Spray Test | 48hours | |
| Vibration | 10-2000Hz, acceleration 147m/s², instantaneous interruption ≤1us | |
| Shock | Acceleration 490m/s2 |
The telecom connectors should be used within the technical parameters provided;
Package Spec: /
Storage Spec: Products packed into boxes should be stored in a warehouse with an ambient temperature of -10°C to +40°C, a relative humidity below 80%, and no acidic, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the date of production.
