Zhejiang Yonggui Electric Equipment Co., Ltd.

GTCN Circular Connectors

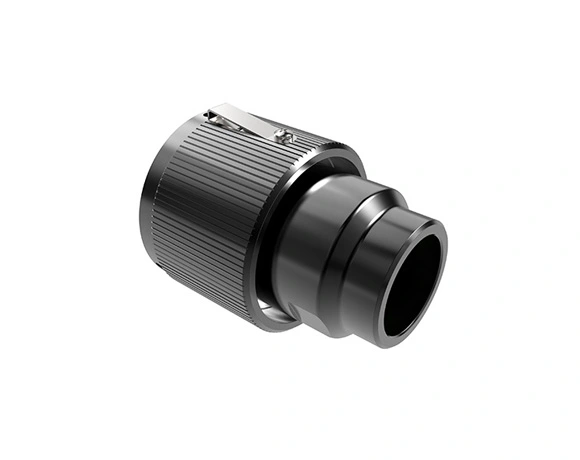

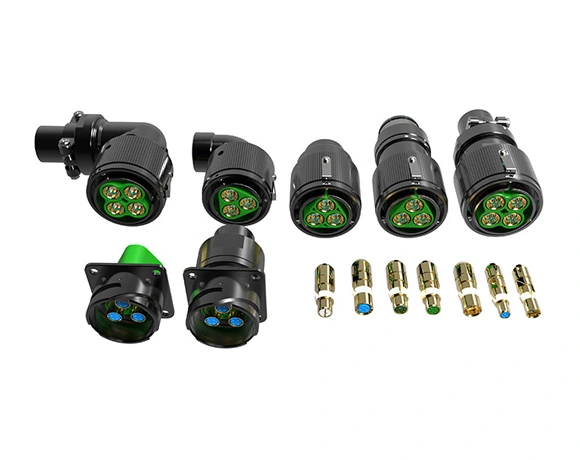

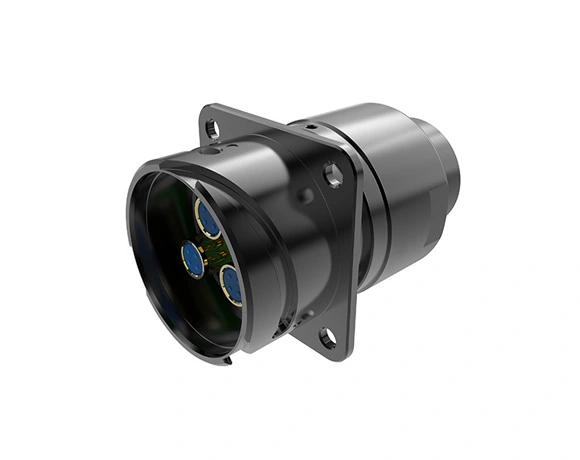

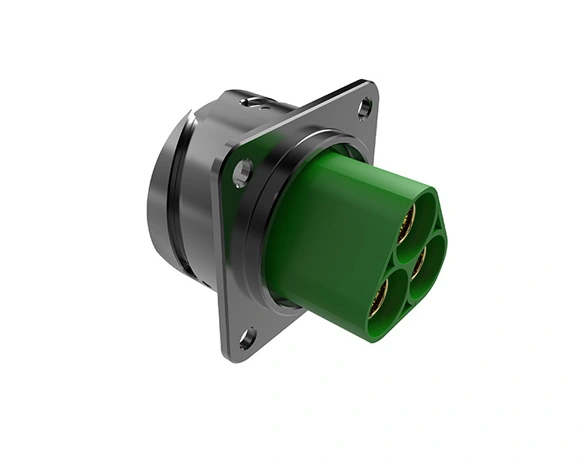

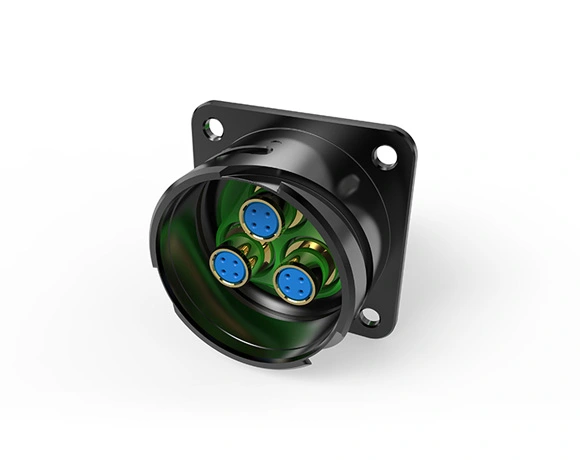

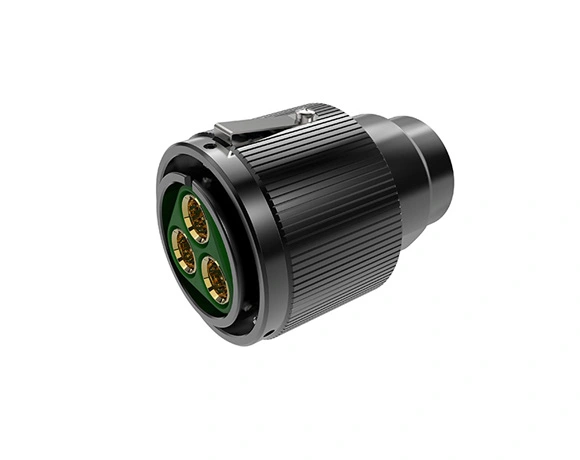

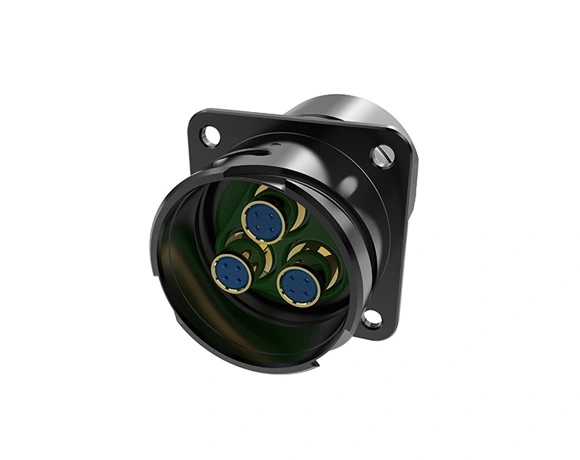

The GTCN circular connectors from Yonggui Electric are suitable for various harsh environments, the round reverse bayonet with self-locking quick-plug network connector. Independent module, can support Ethernet, MVB, WTB, audio and video and other signals of data transmission, each module is independently connected, the module is individually 360 degrees shielding, shielding effect is better, the transmission signal is stable. Mainly used in railroad, rolling stock, urban rail transit network signal transmission.

Specifications of GTCN Circular Connectors

Model

Q4

Q8

Q4S

QG

Connector

Number of terminals

4×Φ1

8×Φ0.8

4×Φ0.8

4×2×Φ0.6

/

Rated Current

4A

2A

2A

0.5A

/

Rated Voltage

50V

50V

50V

50V

/

Withstanding Voltage

1400V

650V

650V

500V

2500V

Contact resistance

≤5mΩ

≤8mΩ

≤8mΩ

≤12mΩ

/

Insulation resistance

≥1500MΩ

≥1500MΩ

≥800MΩ

≥1500MΩ

≥5000MΩ

Network Performance

100Mbps

1000Mbps

100Mbps

10000Mbps

/

Applicable Cables

Cat.5

Cat.5e

Cat.5

Cat.6A

/

Wiring Gauge

AWG(26-17)

AWG(26-20)

AWG(26-20)

AWG(28-22)

/

Mechanical life

750Times

Vibration

According to the requirements of GB/T21563-2008 according to the provisions of Class 1, Level B

Shock

According to the requirements of GB/T21563-2008 according to the provisions of Class 1, Level B

Operating Temperature

-40℃~+125℃

Humidity

95%(40℃)

Protection class

IP67(Adaptation of suitable cables)

Environmentally Friendly

RoHS

Material and surface treatment

Housing: Aluminum alloy; Surface treatment: Oxidized black
Insulator: Engineering plastic; Flame retardant grade: EN 45545
Pinhole: Copper alloy; Surface treatment: Gold-plated
