These heavy duty connectors are perfect for applications that require a secure and reliable connection. With 24 pins, they provide a strong and stable connection for your devices.
Female plug with cold pressed connection
Rated current: 16A
Rated voltage: 500V
Wire specification: 0.14-4mm²
Polycarbonate material in RAL 7032 (egg lime) color
UL and CE certified
Part number:
Male: 113060100524
Female: 113060200514
Model | Code | Weight（kg） | UL | CE | Describe |

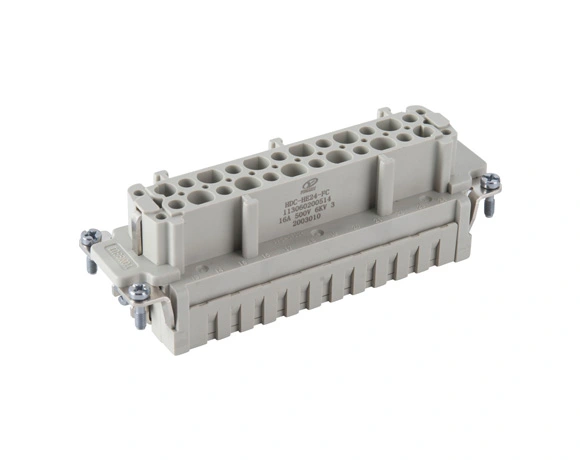

| HDC-HE24-FC | 113060200514 | 0.07 | √ | √ | Female plug, cold pressed connection, 24+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |

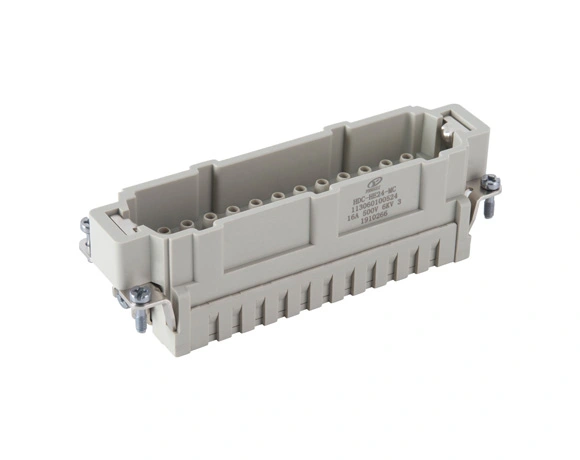

| HDC-HE24-MC | 113060100524 | 0.07 | √ | √ | Male plug, cold pressed connection, 24+PE; Rated current: 16A; Rated voltage: 500V; Wire specification: 0.14-4mm ²; Polycarbonate, RAL 7032 (egg lime). |
