M23-H Seris Connectors

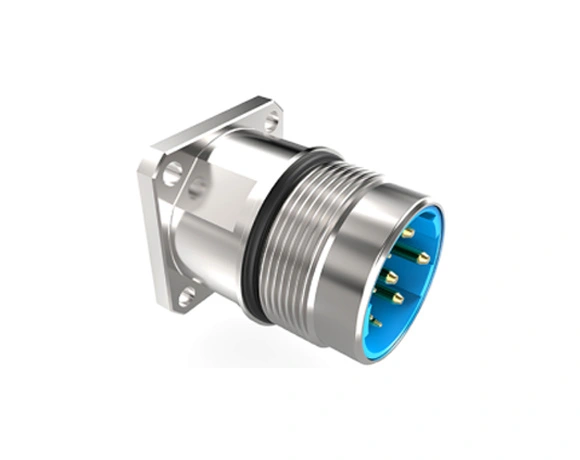

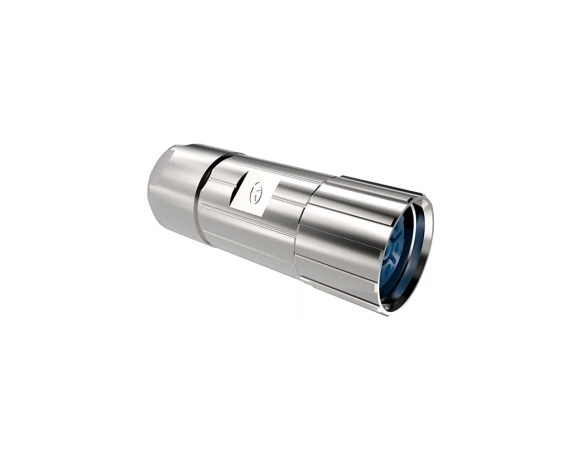

The product is 4+3+PE core circular metal connector, the wiring is crimped, the headstock is threaded, the operation is fast and simple and can be interchanged with the same kind of foreign products.

Mainly used in wind power generation, robotics, rail transportation and industrial equipment automation electrical control system between the electrical source connection.


Specifications of M23-H Seris Connectors

①Electrical parameters

Number of cores

4+3+PE

Number of contacts

4

4

Contact diameter(mm)

φ1

φ2

Rated current(A)

8

28

Rated voltage (V) Pollution class 3

300

600

Test voltage(V)

2500

4000

Insulation resistance (MΩ)

>10000

Contact resistance max.(mΩ)

3

3

②Technical Parameters

Housing

Depression casting zinc alloy

Surface treatment

Electroless nickel plating

Insulation

Engineering plastics conforming to UL94-V0

Contacts

Copper Alloy

Contact surface treatment

Gold plated

Mechanical life

500 times

Rubber parts

Silicone Rubber & Butyl Rubber

Connection method

Clamp pressure

Protection class

IP67/IP69K (locked condition) (with appropriate tail attachment)

Cable diameter

7-17mm (.27-.67)

③Other parameters

Operating temperature

-55℃~+125℃

Relative humidity

90% to 95% (temperature: 40±2°C)

Environmental protection

RoHS
