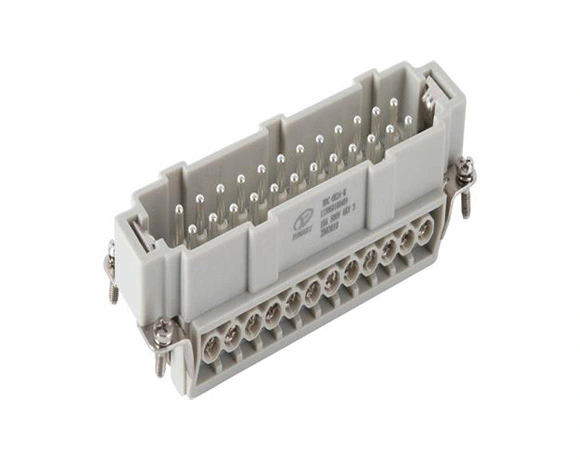

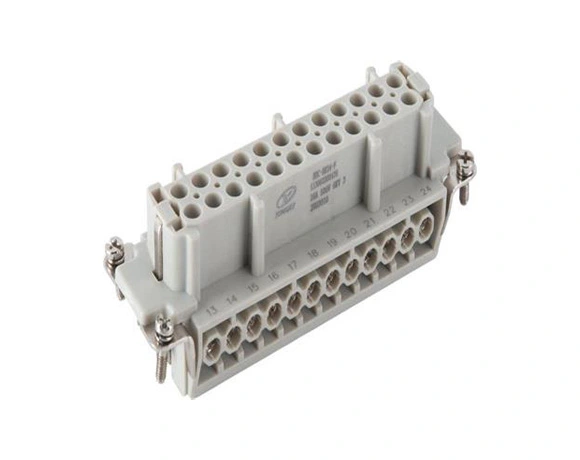

These heavy-duty terminal connectors feature a bolted connection and are designed for exceptional durability. With a rated current of 16A and a rated voltage of 500V, these industrial connectors provide reliable performance. The connectors are made with high-quality polycarbonate material, ensuring long-lasting use. The HDC-HE24-F connector is a female plug, while the HDC-HE24-M is a male plug, both offering 24+PE connections.
Part number:
Male: 113060100489
Female: 113060200476
Model | Code | Weight（kg） | UL | CE | Describe |
| HDC-HE24-F | 113060200476 | 0.07 | √ | √ | Female plug, bolted connection, 24+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²; Polycarbonate, RAL 7032 (egg lime). |
| HDC-HE24-M | 113060100489 | 0.07 | √ | √ | Male plug, bolted connection, 24+PE; Rated current: 16A; Rated voltage: 500V; Tightening torque: 0.5N · m; Wire specification: 1-2.5mm ²; Polycarbonate, RAL 7032 (egg lime). |
