GTCF Circular Connectors

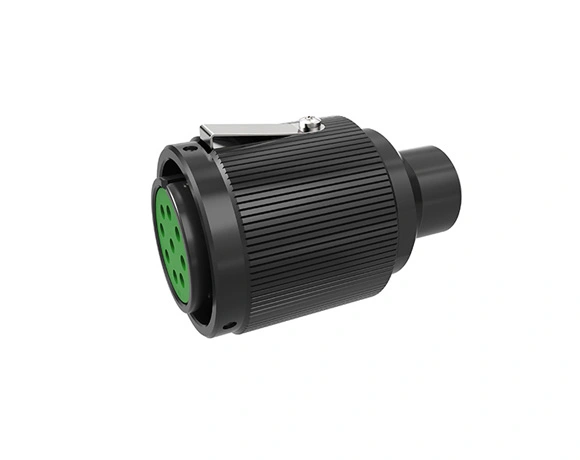

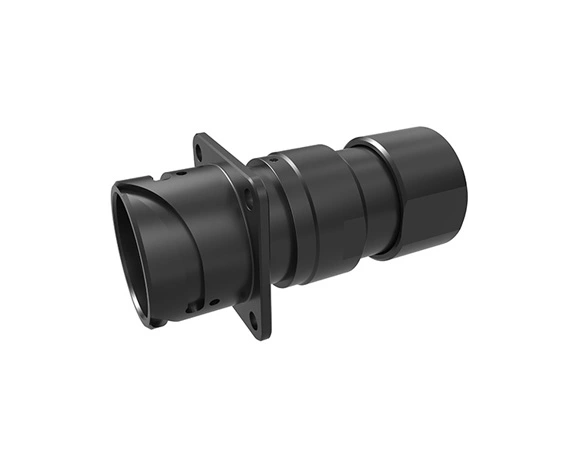

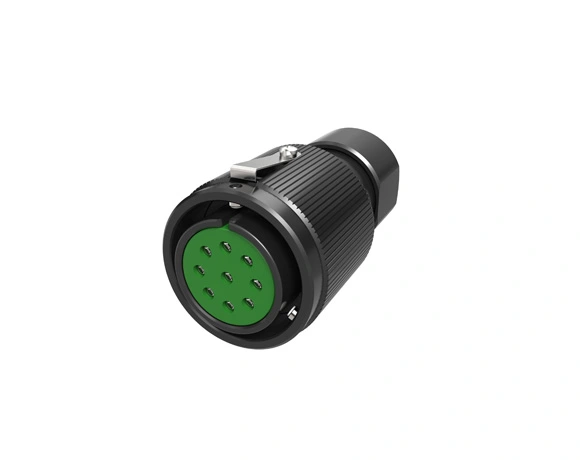

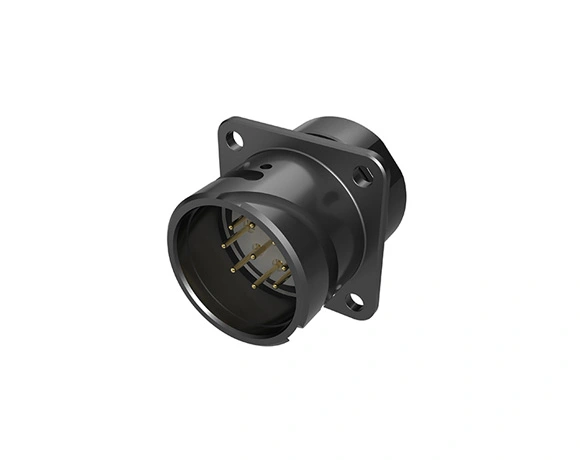

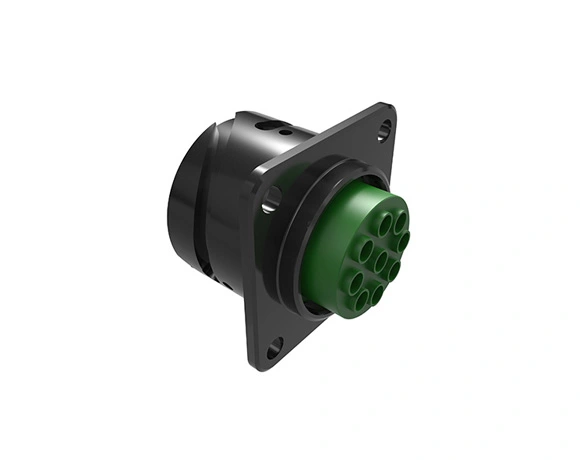

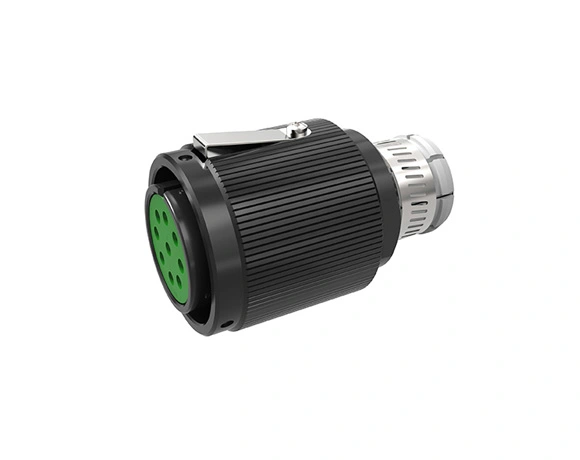

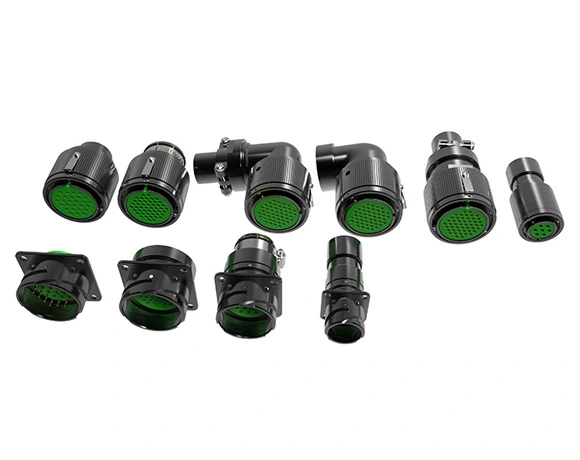

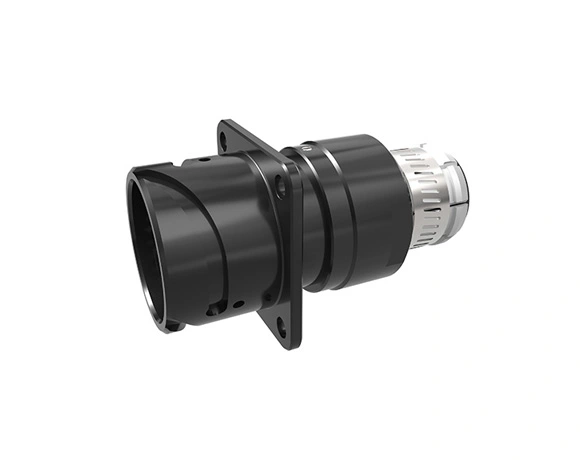

The GTCF circular connectors from Yonggui Electric is designed to apply in harsh environments,  these circular connectors reverse bayonet with self-locking quick plug connector. With high and low temperature resistance, anti-vibration, tensile, impact resistance, transmission of optical signals, high transmission rate, large data volume. Mainly used in railroads, rolling stock, urban rail transit, electronic communications, mining terminals and industrial equipment automation between the electrical control system signal connection.

Specifications of GTCF Circular Connectors

Insertion Loss

≤0.2dB

Return loss

≥50dB

Repeatability (500 times)

≤0.5dB

Interchangeability

≤0.3dB

Mechanical life

750times

Vibration

According to GB/T21563-2008 requirements according to the provisions of category 2

Shock

According to GB/T21563-2008 requirements according to the provisions of category 2

Operating Temperature

-55℃~+125℃

Protection class

IP67(Adaptation of suitable cables)

Environmentally Friendly

RoHS

Material and surface treatment

Housing: Aluminum alloy; Surface treatment: Oxidized black
Insulator: Engineering plastic; Flame retardant grade: EN 45545
Pinhole: Stainless steel; Suitable for fiber type: 50/125 multimode fiber
