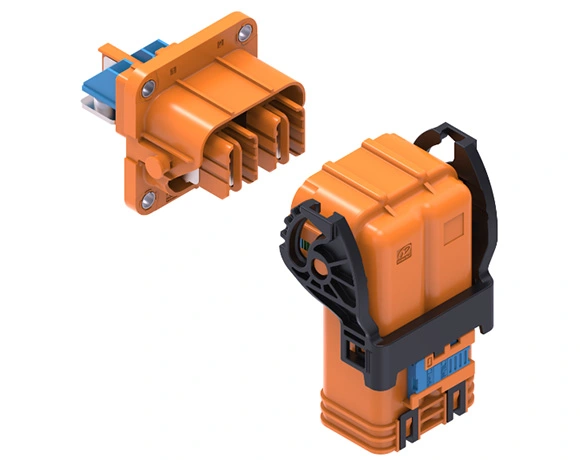

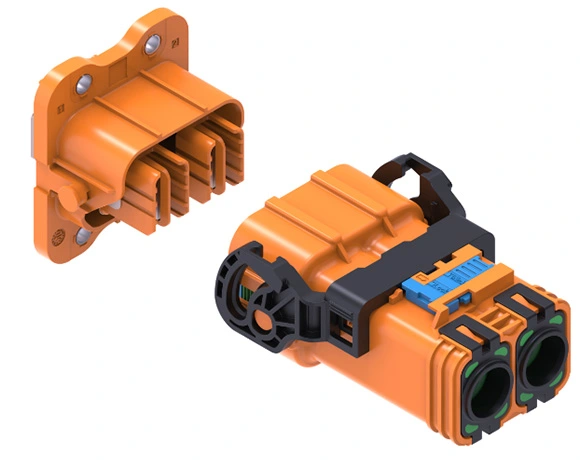

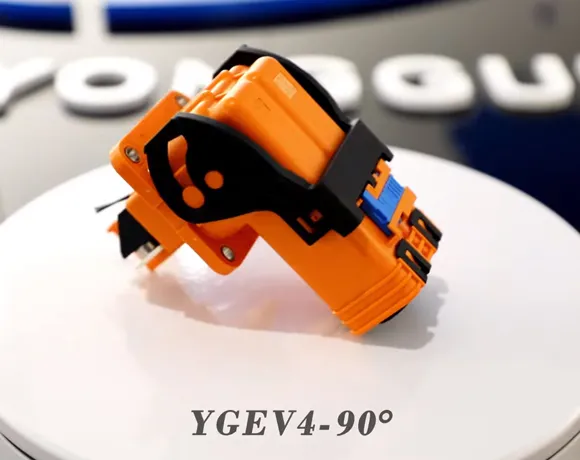

The product can achieve 360-degree full shielding;
The product has a delayed high voltage interlocking function;
The key positions at both ends adopt different combinations to realize the function of preventing wrong insertion;

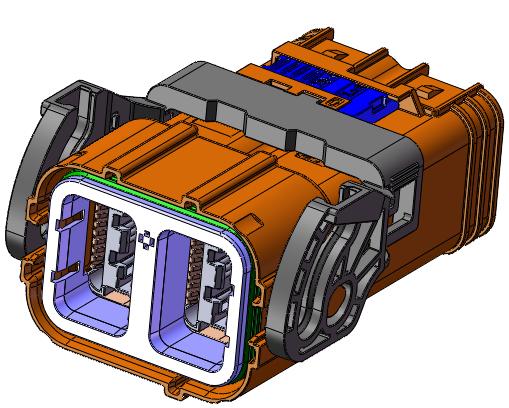

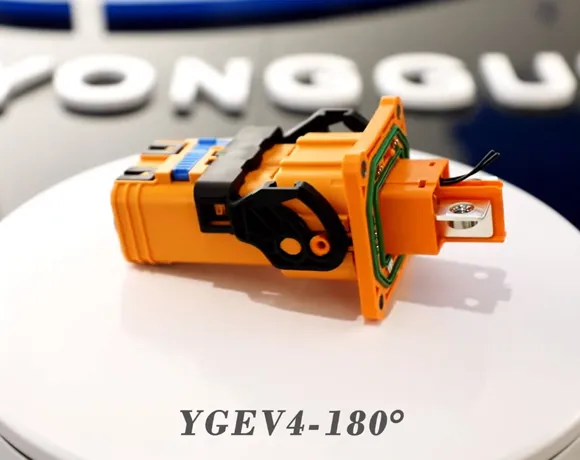

The plug and receptacle utilize a lever-actuated locking mechanism for connection.
The plug uses terminal soldering.
For use in electric vehicle power distribution systems, motors, motor controllers, and related components.

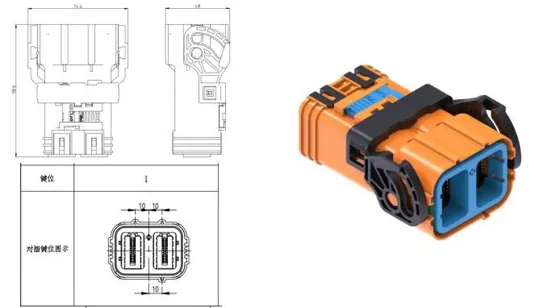

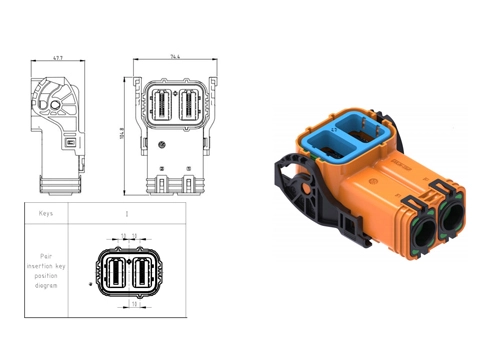

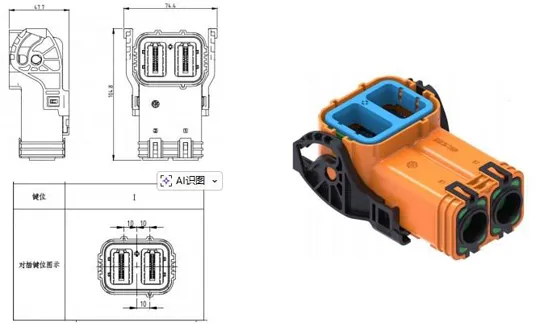

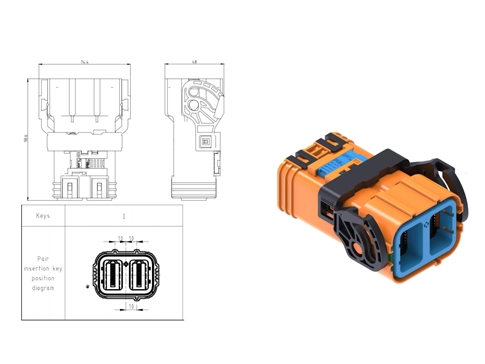

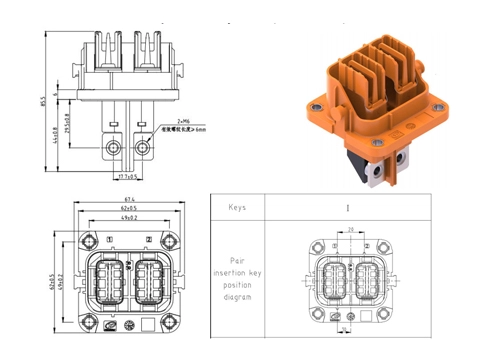

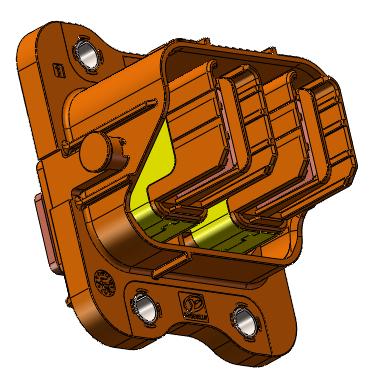

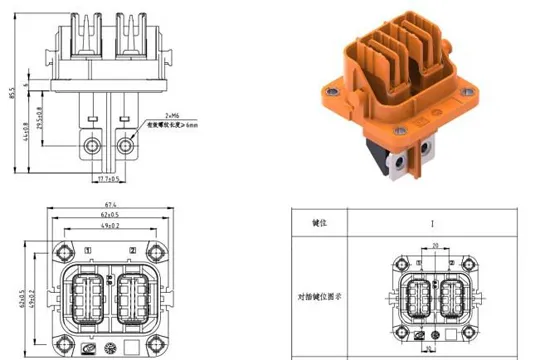

YGEV4-P2RA1 series receptacle assembly outline (unspecified tolerance: ±0.5)

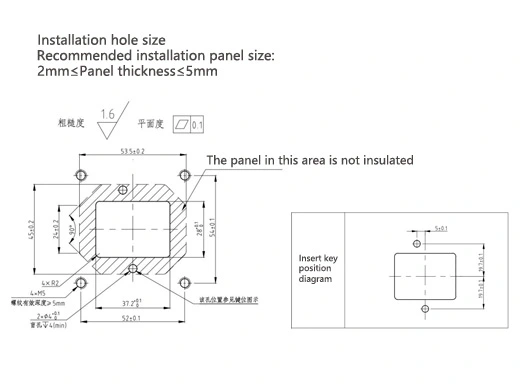

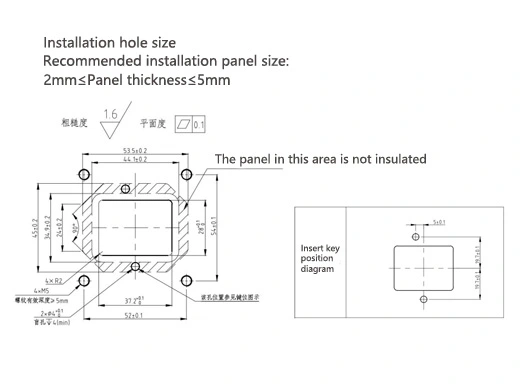

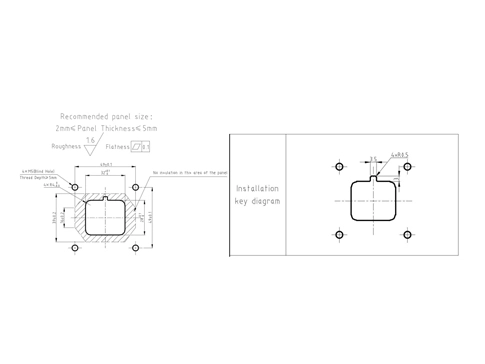

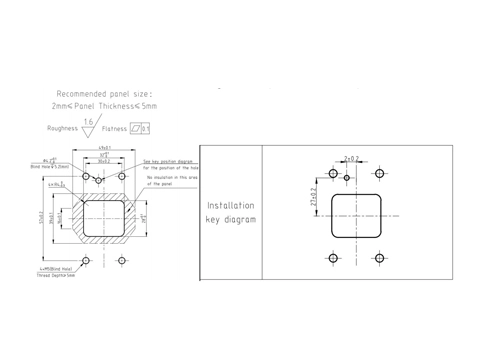

Recommended mounting panel dimensions: 2mm ≤ panel thickness ≤ 5mm.

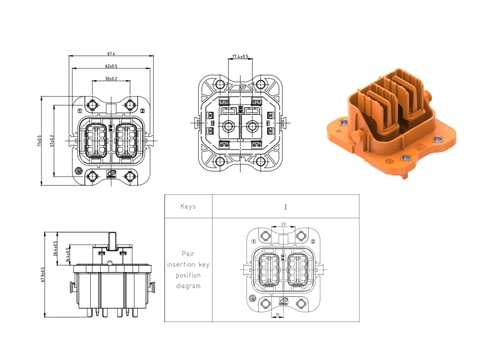

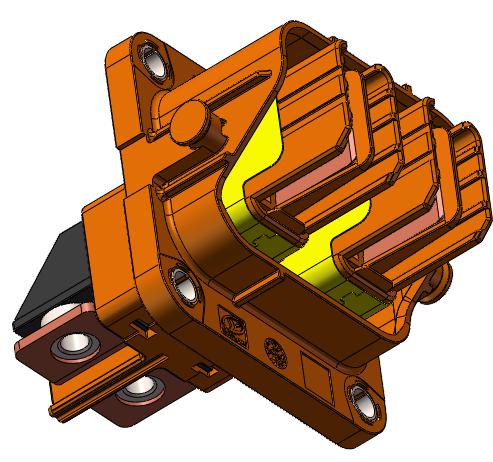

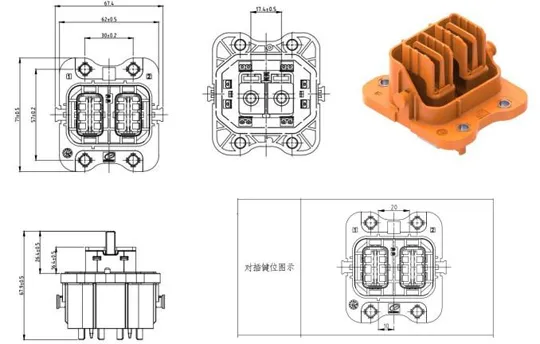

YGEV4-P2RA2 series receptacle assembly outline (unspecified tolerance: ±0.5)

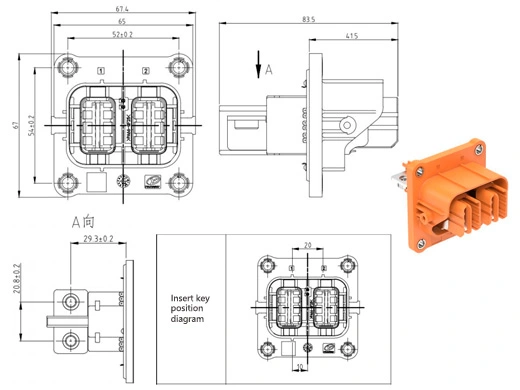

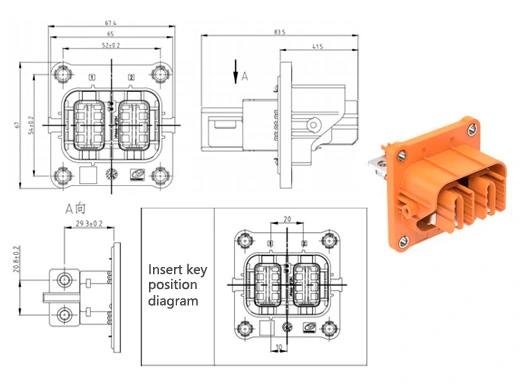

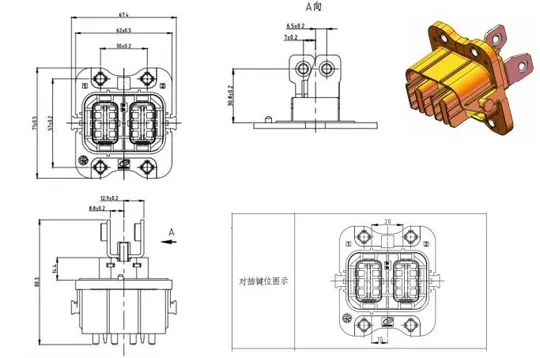

YGEV4-P2RA4 Series receptacle assembly outline (unspecified tolerance: ±0.5)
Ordering information
| Ordering information(assembly) | ||||||||||||||
| Key position | Ⅰ | |||||||||||||
| Product name | YGEV4-S2PWHA plug(35mm²) | YGEV4-S2PWHA plug(50mm²) | YGEV4-S2PHA plug(35mm²) | YGEV4-S2PHA plug(50mm²) | ||||||||||
| Product code | 111000405874 | 111000405875 | 111000405919 | 111000405920 | ||||||||||
| Receptacle name | YGEV4-P2RA1 receptacle | YGEV4-P2RA2 receptacle | YGEV4-P2RA4 receptacle | YGEV4-P2RA5 receptacle | receptacle | YGEV4-P2RA7 receptacle | ||||||||
| Receptacle code | 111000100596 | 111000100597 | 111000502903 | 111000503391 | 111000100728 | 111000100731 | ||||||||
| Note: All types of plugs can be mated and adapted with all types of receptacles.. | ||||||||||||||
Bill of materials for shielded plugs:

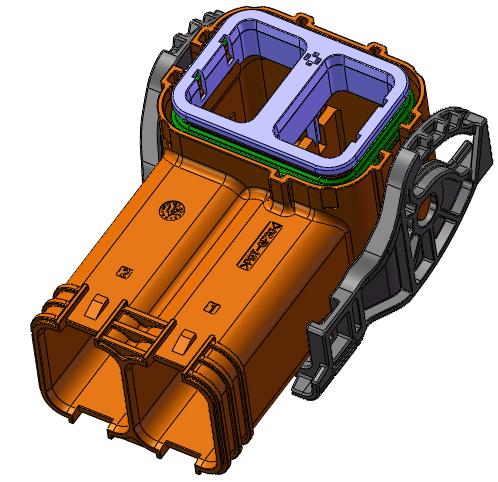

| Assembly | Ordering information(parts details, can be purchased separately) | |||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | ||||||||||
| YGEV4- S2PWHA plug(35mm²) | 111000405874 | YGEV4-S2PWHA plug assembly | 112010105663 | 1 | 35mm²(LV216) Φ 14.1 ± 0.3mm |  | ||||||||
| YGEV4WA-1 insulator 1 | 114060103317 | 2 |  | |||||||||||
| YGEV4WA-1 insulator 2 | 114060103318 | 2 |  | |||||||||||

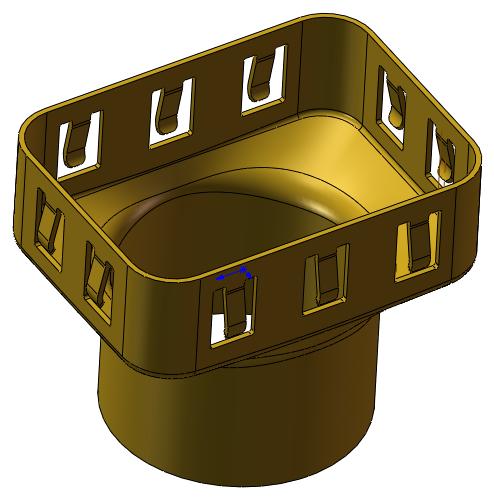

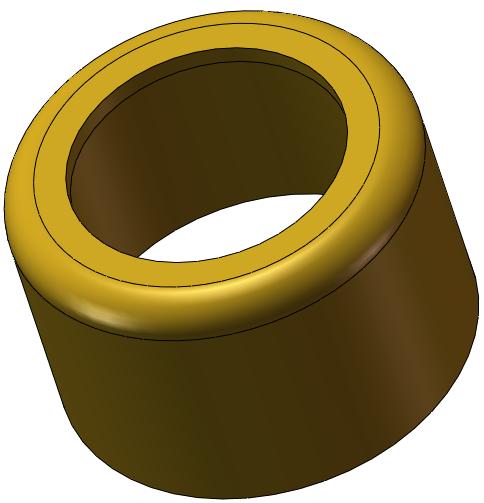

| YGEV4WA shielding ring - external - 35 | 114022600423 | 2 |  | |||||||||||
| YGEV4WA shielding ring - inner - 35 | 114022600422 | 2 |  | |||||||||||

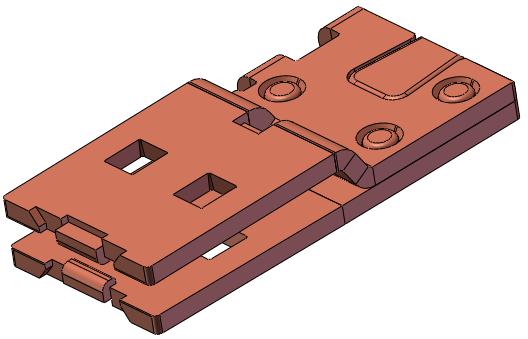

| YGEV4WA shielding | 114022600412 | 2 |  | |||||||||||

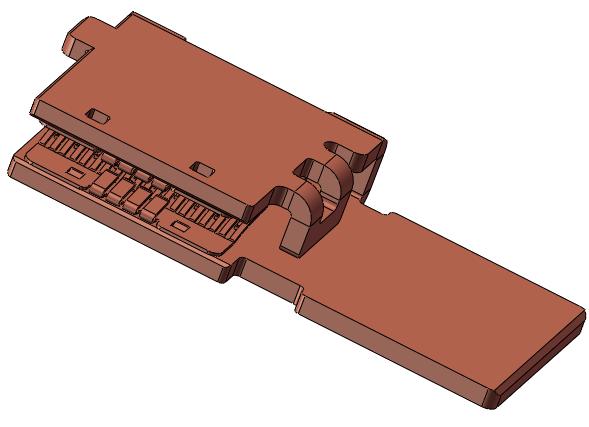

| 18×2 socket | 114020101218 | 2 |  | |||||||||||

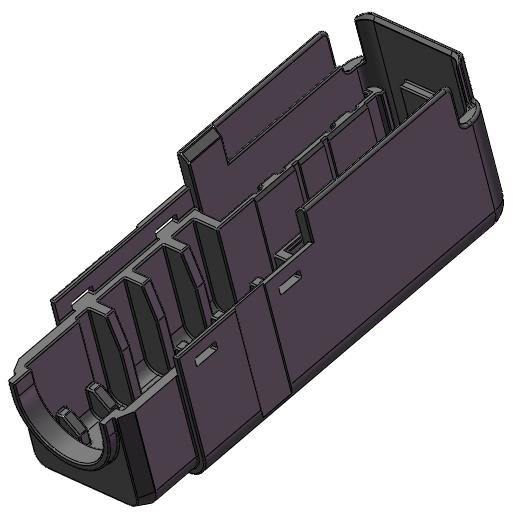

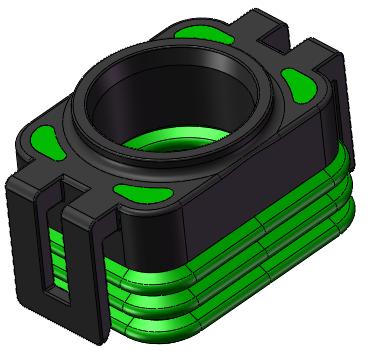

| φ14.8 rear assembly (black) | 113990001498 | 2 |  | |||||||||||
| YGEV4- S2PWHA plug(50mm²) | 111000405875 | YGEV4-S2PWHA plug assembly | 112010105663 | 1 | 50mm²(LV216) Φ 15.5 ± 0.3mm |  | ||||||||
| YGEV4WA-1 insulator 1 | 114060103317 | 2 |  | |||||||||||
| YGEV4WA-1 insulator 2 | 114060103318 | 2 |  | |||||||||||
| YGEV4WA shielding ring 2 | 114022600406 | 2 |  | |||||||||||
| YGEV4WA shielding ring 1 | 114022600405 | 2 |  | |||||||||||
| YGEV4WA shielding | 114022600412 | 2 |  | |||||||||||
| 18×2 socket | 114020101218 | 2 |  | |||||||||||
| φ16.2 rear cover(black) | 113069800540 | 2 |  | |||||||||||
| Assembly | Ordering information(parts details, can be purchased separately) | ||||||||||||||
| Product name | Product code | Qty | Wiring specification | Diagram (for reference) | |||||||||||
| YGEV4-S2PHA plug(35mm²) | 111000405919 | YGEV4-S2PHA plug assembly | 112010106424 | 1 | 35mm²(LV216) Φ 14.1 ± 0.3mm |  | |||||||||
| 18×2 socket | 113020602021 | 2 |  | ||||||||||||
| YGEV4A-1 insulator assembly | 113990001888 | 2 |  | ||||||||||||
| YGEV4A shielding ring - inner - 35 | 114029801976 | 2 |  | ||||||||||||
| YGEV4A shielding ring - external - 35 | 114029801999 | 2 |  | ||||||||||||
| Φ14.8 rear cover(black) | 13990001498 | 2 |  | ||||||||||||
| YGEV4-S2PHA plug(50mm²) | 111000405920 | YGEV4-S2PHA plug assembly | 112010106424 | 1 | 50mm²(LV216) Φ 15.5 ± 0.3mm |  | |||||||||
| 18×2 socket | 113020602021 | 2 |  | ||||||||||||
| YGEV4A-1 insulator assembly | 113990001888 | 2 |  | ||||||||||||
| YGEV4A shielding ring - inner - 50 | 114029801975 | 2 |  | ||||||||||||
| YGEV4A shielding ring - external - 50 | 114029802000 | 2 |  | ||||||||||||
| φ16.2 rear cover(black) | 113069800540 | 2 |  | ||||||||||||
Bill of materials for receptacle shielding products:

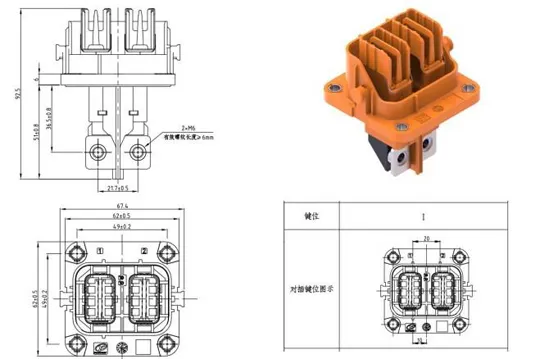

| Assembly | Ordering information (parts details, can be purchased separately) | ||||||||||||||
| Product name | Product code | Qty | Wiring specificati on | Diagram (for reference) | |||||||||||
| YGEV4-P2RA1 receptacle | 111000100596 | YGEV4-P2RA1receptacle assembly | 112020106445 | 1 | Φ 1.2-1.3 (0.25-0.35mm²) |  | |||||||||
| 0.63×0.63 pin | 501021400215 | 2 |  | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 |  | ||||||||||||
| YGEV4-P2RA2 receptacle | 111000100597 | YGEV4-P2RA2 receptacle assembly | 112020106446 | 1 | Φ 1.2-1.3 (0.25-0.35mm²) |  | |||||||||
| 0.63×0.63 pin | 501021400215 | 2 |  | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 |  | ||||||||||||
| YGEV4-P2RA4 receptacle | 111000502903 | YGEV4-P2RA receptacle assembly | 112020107177 | 1 | Φ 1.2-1.3 (0.25-0.35mm²) |  | |||||||||
| 0.63×0.63 pin | 501021400215 | 2 | | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 | | ||||||||||||
| YGEV4A4 seal | 114050501913 | 1 |  | ||||||||||||
| YGEV4-P2RA5 receptacle | 111000503391 | YGEV4-P2RA5 receptacle assembly | 113990001957 | 1 | Φ 1.2-1.3 (0.25-0.35mm²) |  | |||||||||
| 0.63×0.63 pin | 501021400215 | 2 | | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 | | ||||||||||||
| YGEV4-P2RA6 receptacle | 111000100728 | YGEV4-P2RA5 receptacle assembly | 113990001957 | 1 | Φ 1.2-1.3 (0.25-0.35mm²) Φ 1.2-1.3 (0.25-0.35mm²) |  | |||||||||
| 0.63×0.63 pin | 501021400215 | 2 | | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 | | ||||||||||||
| YGEV4-P2RA7 receptacle | 111000100731 | YGEV4-P2RA7 receptacle assembly | 112020107930 | 1 |  | ||||||||||
| 0.63×0.63 pin | 501021400215 | 2 | | ||||||||||||
| YGEV4 receptacle protective cover-P | 114069806099 | 1 | | ||||||||||||
| Ordering information(parts details, can be purchased separately) | ||||||||||||||
| Basic information | ||||||||||||||
| Pin distance | 24mm | |||||||||||||
| Numbers of pins | 2 | |||||||||||||
| Cable outlet direction | 90°、180° | |||||||||||||
| Shell material | plastic | |||||||||||||
| Shielding function | yes | |||||||||||||
| Electrical properties | ||||||||||||||
| Rated voltage | 1000V DC | |||||||||||||
| Rated current | 150A(35mm²)、220A(50mm²) | |||||||||||||
| Insulation resistance | ≥ 100MΩ | |||||||||||||
| Withstand voltage | 3000 V | |||||||||||||
| HVIL | yes | |||||||||||||
| Mechanical properties | ||||||||||||||
| Vibration | USCAR V2 | |||||||||||||
| Shock | USCAR V2 | |||||||||||||
| Environmental resistance properties | ||||||||||||||
| Ambient temperature | -40℃ ~ +125℃ | |||||||||||||
| Humidity range | 95％(at 40 ℃) | |||||||||||||
| Salt spray | 96h | |||||||||||||
| IP rating | IPX8,IP6K9K | |||||||||||||
| Pollution level | 2 | |||||||||||||
| Altitude requirement | ≤5000m | |||||||||||||
| Material/Finish/Outline | ||||||||||||||
| Shell | PA66 | |||||||||||||
| Shielding | 铜合金/copper alloy | |||||||||||||
| Standard & Identification | ||||||||||||||
| Flame retardant rating | UL94 V-0(plastic)、HB(rubber) | |||||||||||||
| Environmental requirements | RoHS 2.0 | |||||||||||||
