Application：Apply for power transmission of energy storage system (battery pack).
Description：
Touch-proof
Poka-yoke：
Orange for positive、Black for negative
360° rotation after insertion
Lock mode：Lock buckle+secondary lock
Termination Methods：
Crimp termination、Screw termination

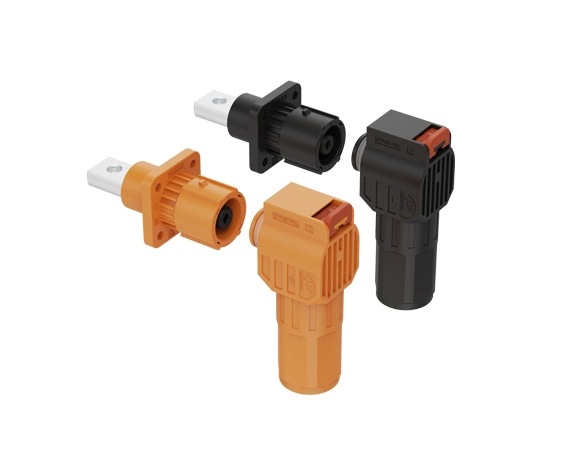

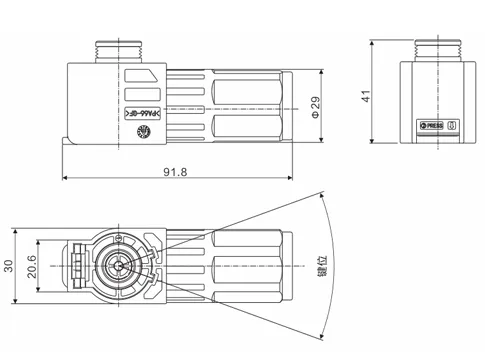

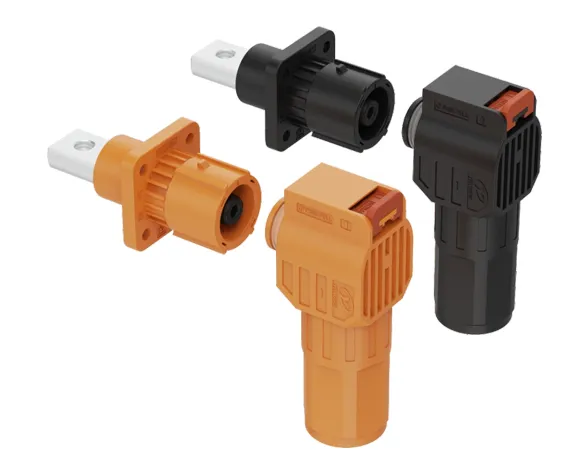

ESC-HPB300 Plug

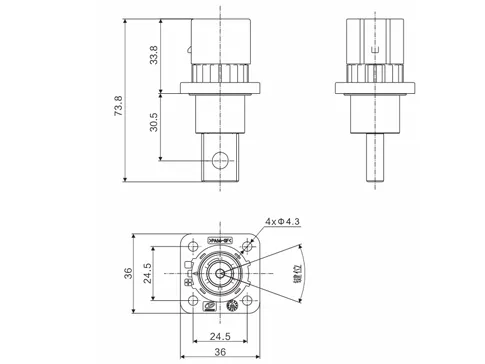

ESC-HPB300 Socket

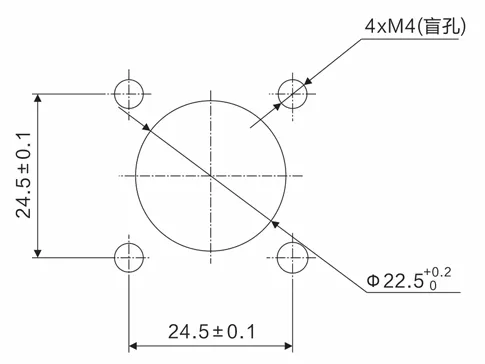

ESC-HPB300 Mounting Hole Dimensions
Basic in formation | |
Numbers of pins | 1 |
Terminal specifications | φ10.5mm |
Electrical specification | |
Rated voltage | 1500V DC |
Rated current | 200A(50mm²)/ 250A(70mm²)/ 300A(95mm²) |
Insulation resistance | ≥ 100MΩ |
Withstand voltage | 6800V AC 50Hz |
Contact resistance | ≤0.25mΩ |
Temperature rise | ≤45K |
Termination method | |
Termination method | Plug: Double B-type crimp or hexagonal crimp Receptacle: Threaded locking M8 Torque 10N•m-12N•m; |
Cable specifications | 50mm²、1/0AWG；/70mm2、2/0AWG；/95mm²、3/0AWG |
Cable outer diameter | 13.5 ±0.3mm/ 15.5 ±0.3mm/ 18.7 ±0.5mm |
Mechanical specification | |
Life cycle | ≥ 100 cycles |
Vibration and shock | QC/T 1067.1-2017 Vibration level V1 |
Environmental resistance specification | |
Ambient temperature | -40℃ ~ +125℃ |
Humidity range | 5%～95% |
Salt spray | 96H (5% NaCl solution, after mating and installation) |
IP rating | IP67(after mating) |
Materials/Finish/Outline | |
Insulator | Engineering plastic |
Rubber part | Silicone rubber |
Contacts | Copper alloy Silver-plated/Tin-plated |
Standards and certifications | |
Flame retardant rating | UL94 V0 (main material) |
Environment requirements | RoHS 2.0 |
certification | CE、UL4128、TUV |
Reference standard | UL4128、QC/T 1067.1-2017 |
The connector should be used within the provided technical parameters, and the product should be installed, used and maintained in strict accordance with the product instruction manual.
Connecters should be used within the specification that provided, Install, use and maintain the products according to the documents.
Package: Carton packing, moisture-proof treatment.
Storage Spec:
Products packaged in boxes should be stored in a warehouse with an ambient temperature of -10℃～+40℃, relative humidity below 80%, and no acidic, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the date of production.
The packaged products shall be stored in the warehouse within the temperature of -10 ℃～+ 40 ℃, relative humidity less than 80%, and no acid, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the production date.
